PYK 16

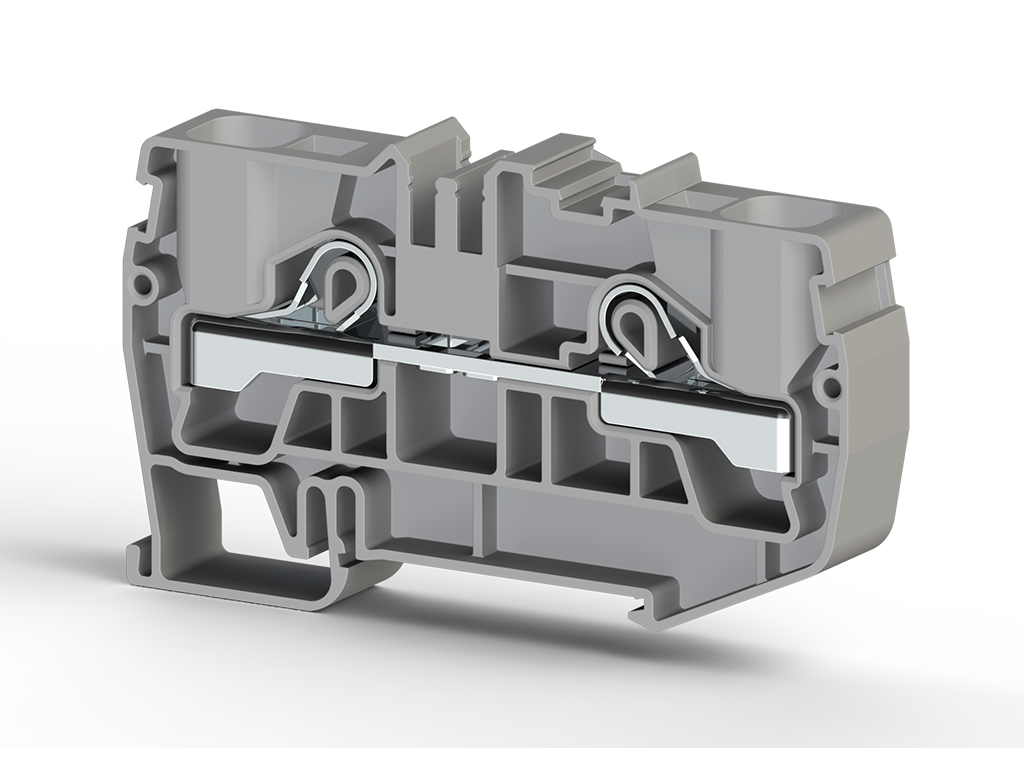

Push-in Type, 16 mm² feed-through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 30
Packing unit : 30 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307659
Packing Unit
30 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0311 kg.
Product Description
Push-in Type, 16 mm² feed-through terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
76 A
Nominal Voltage
1000 V
Maximum Load Current
85 A
Nominal Current (In / Fuse)
76 A
CONNECTION DATA
Connection Type
Push-In Connection
Min. Solid Conductor Cross-Sectional Area
0,5 mm²
Max. Solid Conductor Cross-Sectional Area
25 mm²
Conductor Cross-Section AWG/kcmil Min.
20 AWG
Conductor Cross-Section AWG/kcmil Max.
4 AWG
Min. Stranded Conductor Cross-Sectional Area
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area
16 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
16 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
4 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
Internal Cylindrical Indicator
B7
DIMENSIONS
Width
12 mm
Length
81,45 mm
Height MR 35x7.5
49,50 mm
Height MR 35x15
57,00 mm
Certificates
CSA
cULus
VDE
ATEX
CE
UKCA
EAC
ROHS
CSAConductor Cross-section
AWG 20 - 4
Nominal Current
80A
Nominal Voltage
600V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Cover
Product Code: 450419
NPP/PYK 16 Grey
Plug-In Cross Connector
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
PRODUCT SPECIFICATIONS
Number of Connections
2
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
76 A
Nominal Voltage
1000 V
Maximum Load Current
85 A
Nominal Current (In / Fuse)
76 A
CONNECTION DATA
Connection Type
Push-In Connection
Min. Solid Conductor Cross-Sectional Area
0,5 mm²
Max. Solid Conductor Cross-Sectional Area
25 mm²
Conductor Cross-Section AWG/kcmil Min.
20 AWG
Conductor Cross-Section AWG/kcmil Max.
4 AWG
Min. Stranded Conductor Cross-Sectional Area
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area
16 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
16 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
4 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
Internal Cylindrical Indicator
B7
DIMENSIONS
Width
12 mm
Length
81,45 mm
Height MR 35x7.5
49,50 mm
Height MR 35x15
57,00 mm
CSA
cULus
VDE
ATEX
CE
UKCA
EAC
ROHS
CSAConductor Cross-section
AWG 20 - 4
Nominal Current
80A
Nominal Voltage
600V
