KD 3 Grey
End Bracket
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
495049
Packing Unit
100 pcs.
Customs Tariff No.
392690979018
Weight per piece (inc. packing)
0.0054 kg.
Product Description

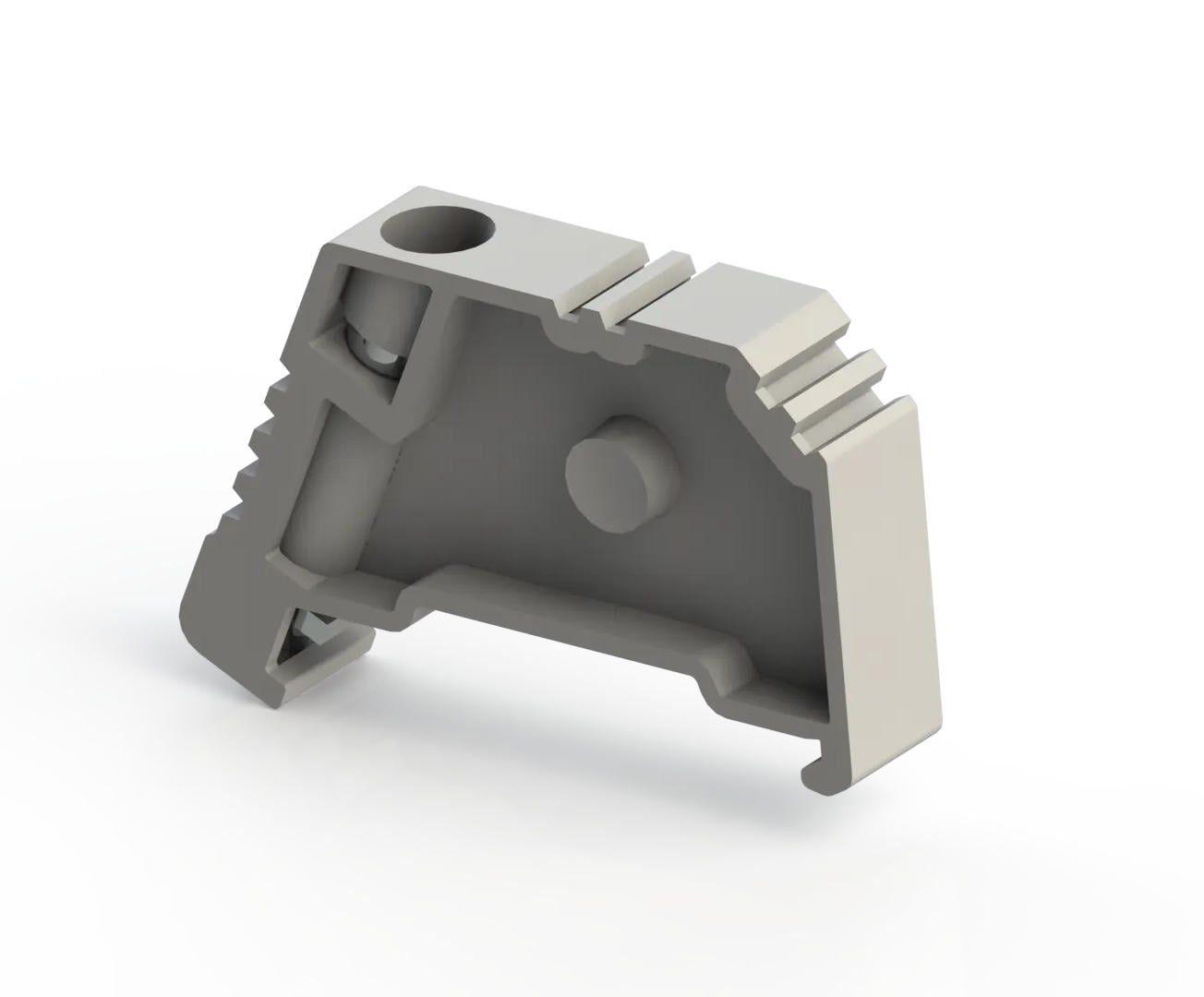

End Bracket
Technical Information
PRODUCT FEATURES
Color
Grey
Insulation Material
PA
UL 94 Flammability Class
V2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Rail Tightening Torque
06-08 Nm
DIMENSIONS
Width
8 mm
Length
45 mm
Height Mr 35x75
30 mm
Height MR 35x15
37,5 mm
Certificates
CE
ROHS
UKCA
