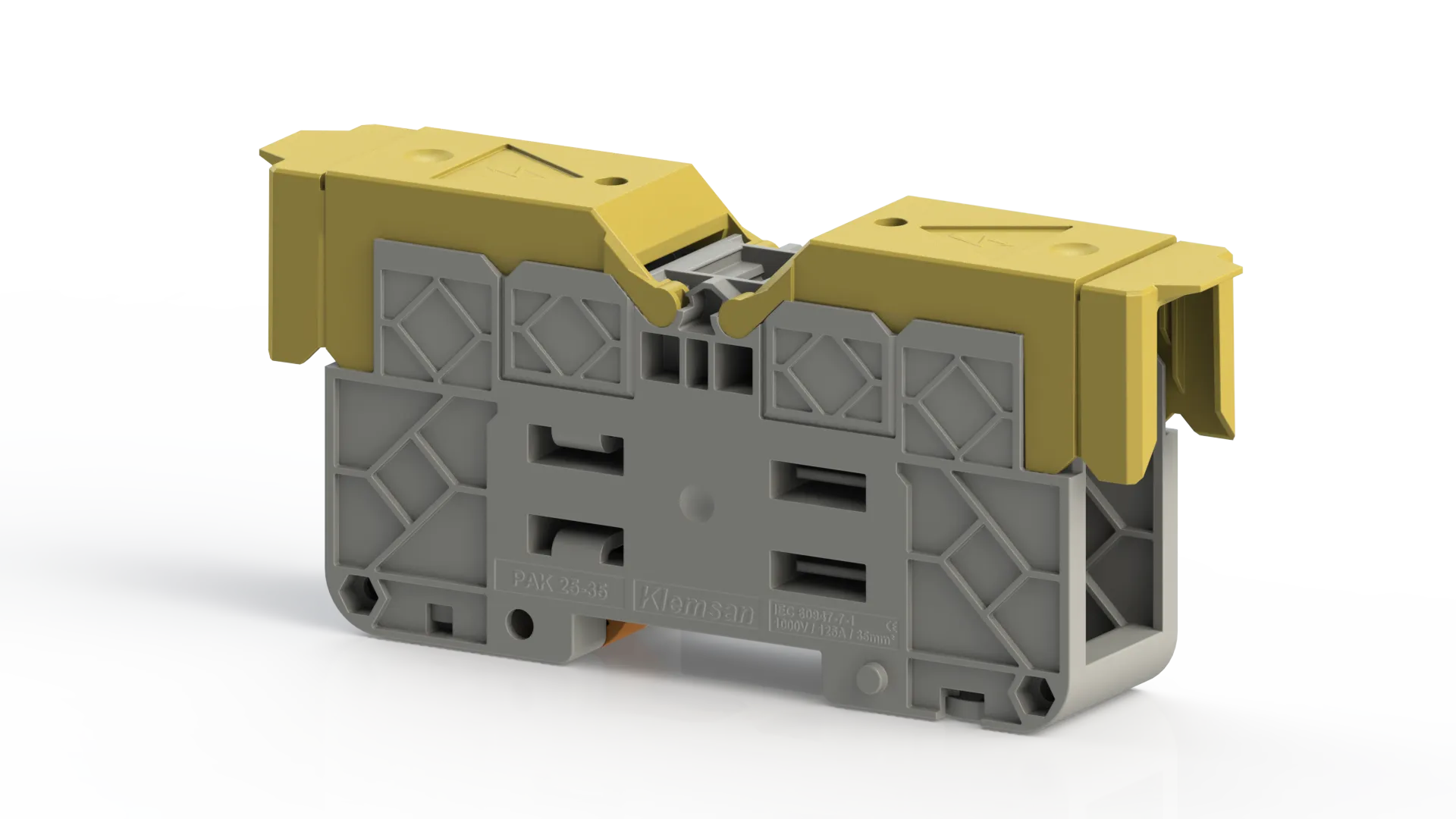

PAK 25-35 KK Grey
35mm² Bolt-Type Feed-Through Terminal Block with Protection Cover
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
313019
Packing Unit
10 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.1 kg.
Product Description
35mm² Bolt-Type Feed-Through Terminal Block with Protection Cover
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Bil.Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
Vo
Impulse Voltage Category
3
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL 1 - HL 2 - HL 3
Continuous Operating Temperature Max.
130 °C
Continuous Operating Temperature Min.
-60 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv Kv
Nominal Current
125) A
Nominal Voltage
1000 V
CONNECTION DATA
Connection Type
Bolt Connection
Tightening Torque Min.
3 Nm
Tightening Torque Max.
6 Nm
Min. Hole Diameter
6,5 mm
Min. DIN 46234 Cable Lug
2,5 mm²
DIN 46234 Cable Lug (Max.)
50 mm²
Min. DIN 46235 Cable Lug
6 mm²
DIN 46235 Cable Lug (Max.)
35 mm²
Min. DIN 46234 Cable Lug
14 AWG
DIN 46234 Cable Lug (Max.)
0 kcmil
Min. DIN 46235 Cable Lug
10 AWG
DIN 46235 Cable Lug (Max.)
2 kcmil
DIMENSIONS
Width
27,00 mm
Length
135,00 mm
Height MR 35x7.5
60,00 mm
Height MR 35x15
67,00 mm
Certificates
CE
ROHS
UKCA
cULus
CEConductor Cross-section
AWG 14-1/0
Nominal Current
150 A
Nominal Voltage
1000 V
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Terminal Thermal Printer Labels
Product Code: 813450
D-NS 12x10
Terminal Blocks
Product Code: 505320
DG 10/6
End Stop
Product Code: 495099
KD 6 Grey
Product Code: 497059
KD 7/NM Grey
Screw Type Cross Connector
Product Code: 472002
UK 35/2 PAK 25-35
Product Code: 472003
UK 35/3 PAK 25-35
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
