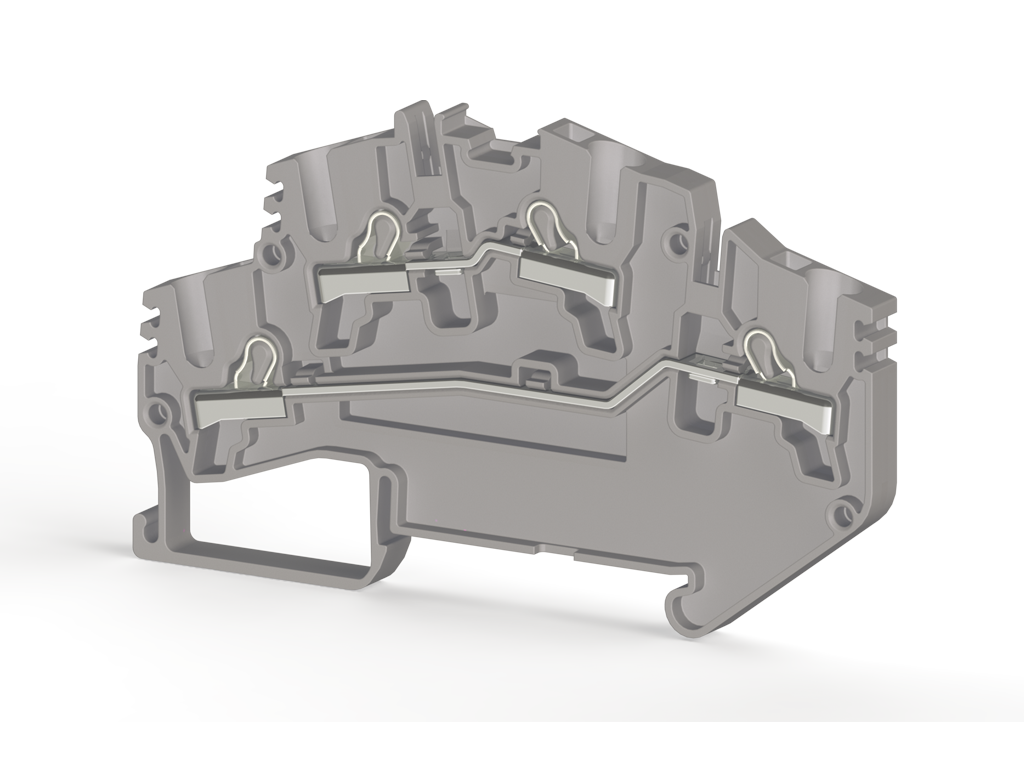

PYK 2,5-M2F Grey
Push-in Terminal, 2,5 mm² 2 layer compact (mini) terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 30
Packing unit : 30 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307699
Packing Unit
30 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.014 kg.
Product Description
Push-in Terminal, 2,5 mm² 2 layer compact (mini) terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC-60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
6 Kv
Nominal Current
24 A
Nominal Voltage
250 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Push-In Connection
Min. Solid Conductor Cross-Sectional Area
0,34 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
22 AWG
Conductor Cross-Section AWG/kcmil Max.
12 AWG
Min. Stranded Conductor Cross-Sectional Area
0,34 mm²
Max. Stranded Conductor Cross-Sectional Area
2,5 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
2,5 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A3
DIMENSIONS
Width
5 mm
Length
81,9 mm
Height MR 35x7.5
50,1 mm
Height MR 35x15
57,6 mm
Certificates
CE
ROHS
UKCA
