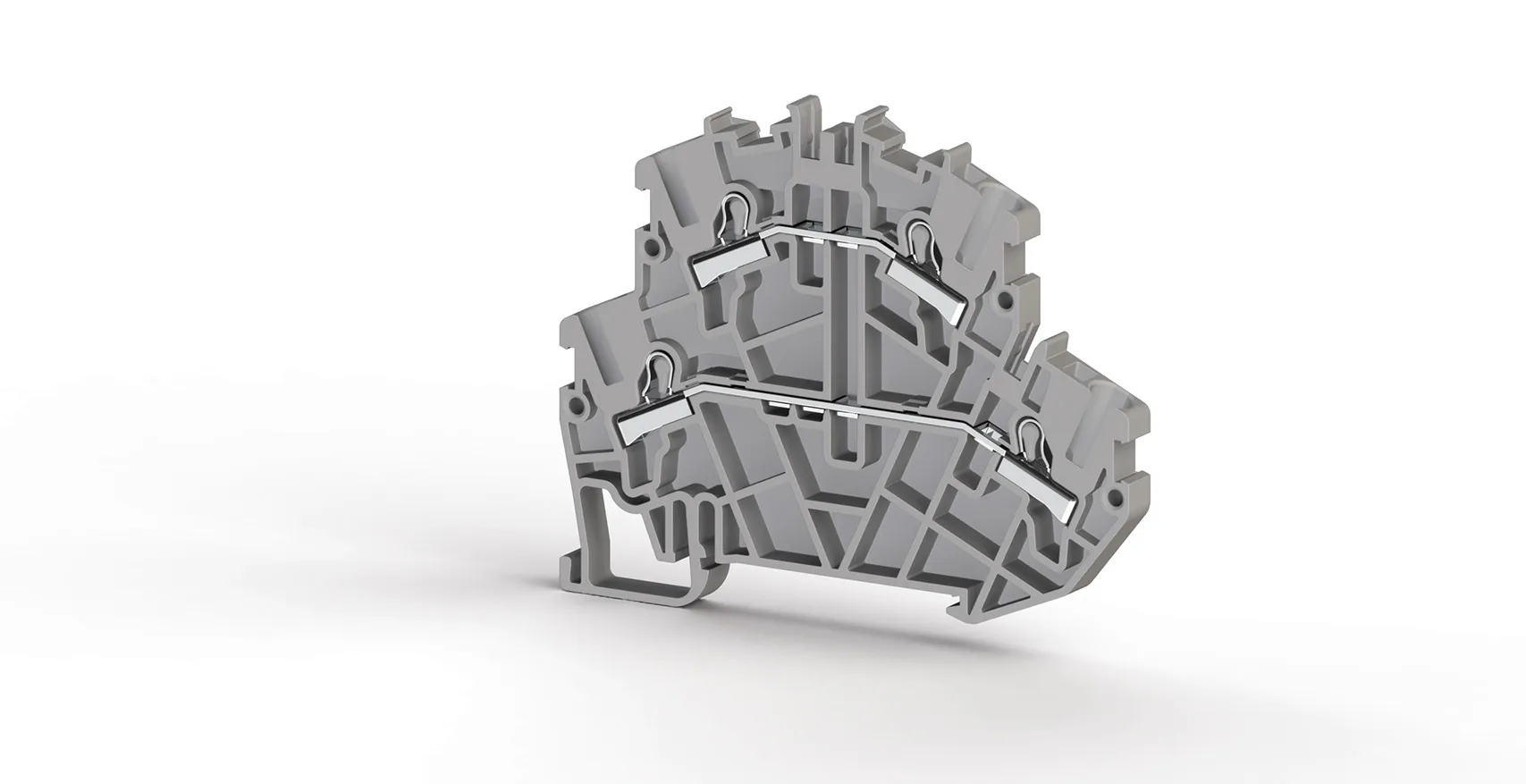

PYK 2,5-2FLD-24VDC
Push-in Type, 2,5 mm² 2 layer feed through terminal block (gray)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 40
Packing unit : 40 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307179
Packing Unit
40 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.014 kg.
Product Description
Push-in Type, 2,5 mm² 2 layer feed through terminal block (gray)
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC-60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
24 A
Nominal Voltage
500 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,34 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
22 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,34 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
DIMENSIONS
Width
5 mm
Length
75,30 mm
Height Mr 35x75
62,90 mm
Height MR 35x15
70,4 mm
Certificates
CE
ROHS
UKCA
ATEX
VDE
cULus
CSA
CEConductor Cross-section
AWG 22-12
Nominal Current
20 A
Nominal Voltage
300 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561130
KT-D 1 (0,4 x Ø2,5)
Terminal Thermal Printer Labels
Product Code: 811750
D-NS 5x10
Cover
Product Code: 446519
NPP/PYK 2,5-2F Grey
Plug-In Cross Connector
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
