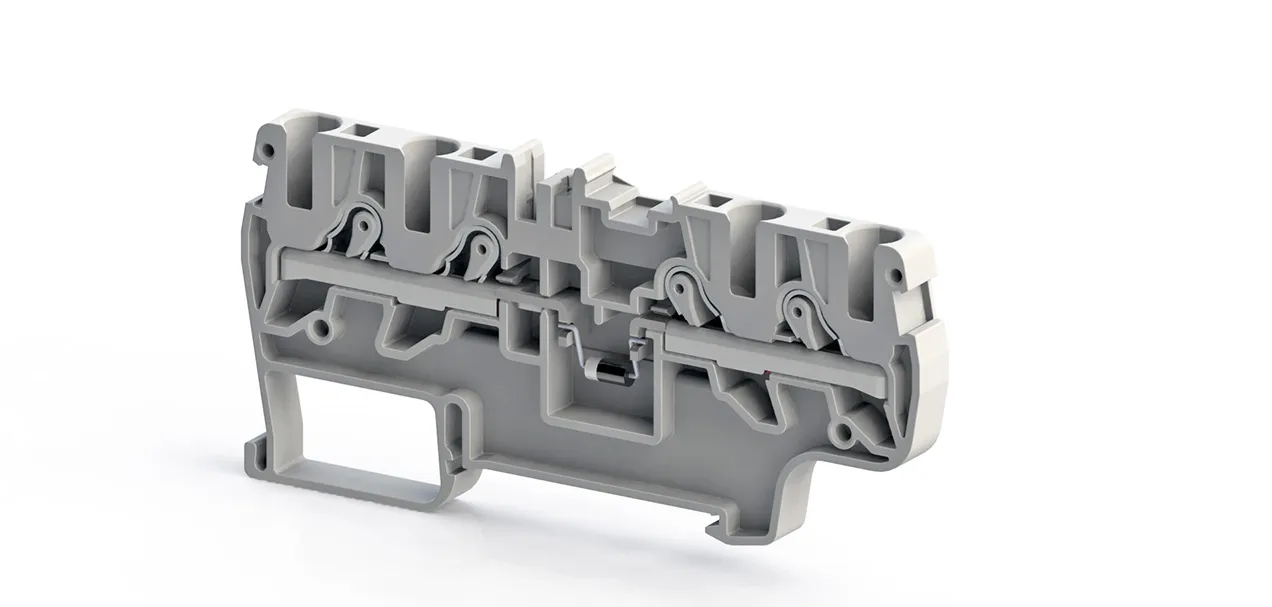

PYK 4CD_B Grey
Push-in Type, 4 mm² 2 input-2 output component terminal block (diode)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 45
Packing unit : 45 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307689
Packing Unit
45 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.012 kg.
Product Description
Push-in Type, 4 mm² 2 input-2 output component terminal block (diode)
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
4
Number of Levels
1
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
32 A
Nominal Voltage
1000 V
Maximum Load Current
41 A
CONNECTION DATA
Connection Type
Push-In Connection
Min. Solid Conductor Cross-Sectional Area
0,34 mm²
Max. Solid Conductor Cross-Sectional Area
6 mm²
Conductor Cross-Section AWG/kcmil Min.
22 AWG
Conductor Cross-Section AWG/kcmil Max.
10 AWG
Min. Stranded Conductor Cross-Sectional Area
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area
4 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,34 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
4 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
1 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A4
DIMENSIONS
Width
6 mm
Length
85,70 mm
Height MR 35x7.5
44 mm
Height MR 35x15
51,5 mm
Certificates
CE
EAC
ROHS
UKCA
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561140
KT-D 2 (0,5 x Ø3,0)
Cover
Product Code: 446670
NPP/PYK 4C Beige
Product Code: 446679
NPP/PYK 4C Grey
Product Code: 498659
PYK TEST-A Grey
Plug-In Cross Connector
Test Sockets
Product Code: 498559
PYK TEST Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
