KD 7 Grey

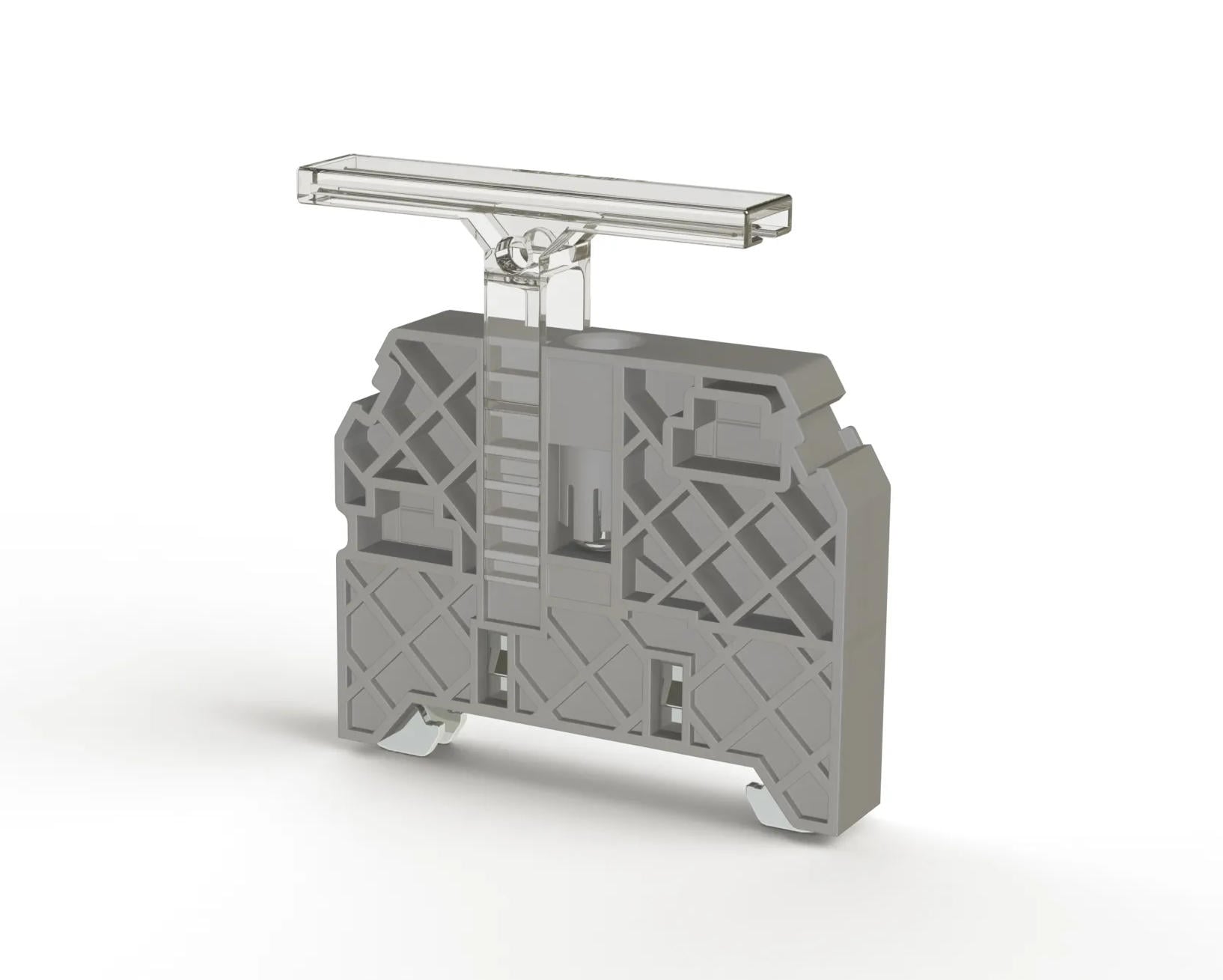

End Bracket
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
495219
Packing Unit
50 pcs.
Customs Tariff No.
392690979018
Weight per piece (inc. packing)
0.01864 kg.
Product Description
End Bracket
Technical Information
PRODUCT FEATURES
Color
Grey
Insulation Material
PA
UL 94 Flammability Class
V2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Rail Tightening Torque
0,6-0,8 Nm
DIMENSIONS
Width
9,5 mm
Length
52 mm
Height Mr 35x75
43,9 mm
Height MR 35x15
50,9 mm
Certificates
CE
ROHS
UKCA
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561150
KT-D 3 (0,6 x Ø3,5)
Product Code: 561230
IKT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 812750
D-NS 8x10
End Stop
Product Code: 496300
ME 3
PRODUCT FEATURES
Color
Grey
Insulation Material
PA
UL 94 Flammability Class
V2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Rail Tightening Torque
0,6-0,8 Nm
DIMENSIONS
Width
9,5 mm
Length
52 mm
Height Mr 35x75
43,9 mm
Height MR 35x15
50,9 mm
CE
ROHS
UKCA
