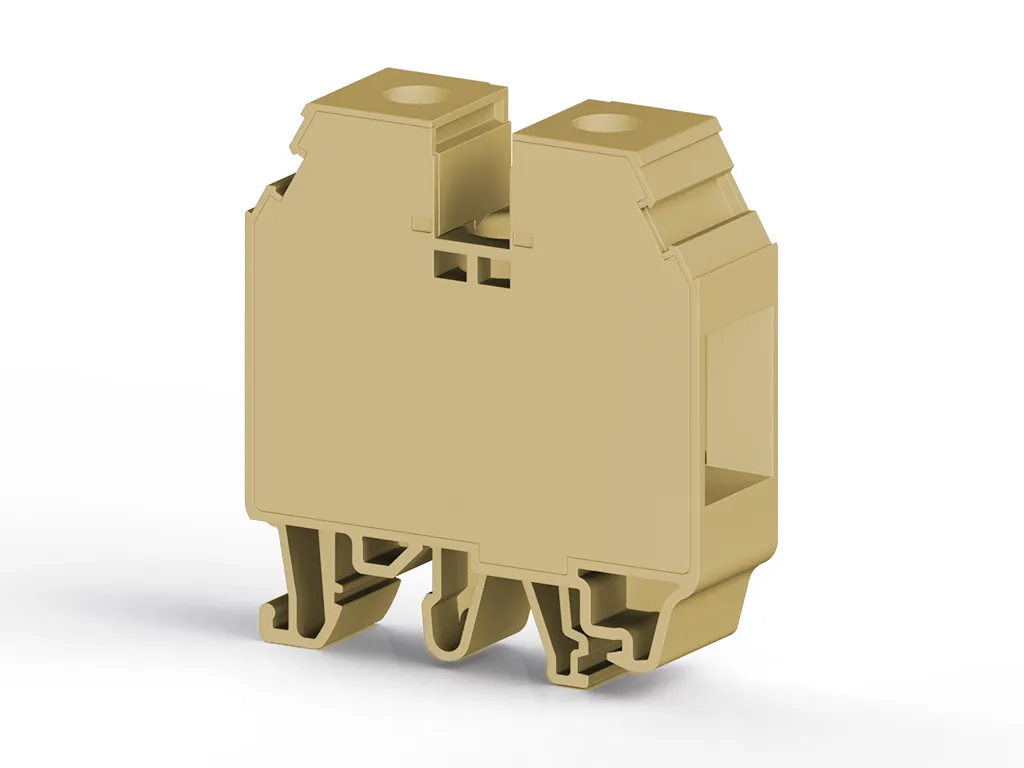

AVK 35 RD Beige
35 mm² screw-mounted feed-through terminal block suitable for MR 32 rail
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 40
Packing unit : 40 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304259
Packing Unit
40 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.051475 kg.
Product Description
35 mm² screw-mounted feed-through terminal block suitable for MR 32 rail
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Beige
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
125 A
Nominal Voltage
750 V
Maximum Load Current
125 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,5 mm²
Single-core max. conductor cross-section
50 mm²
Conductor Cross Section Awgkcmil Min
16 AWG
Conductor Cross Section Awgkcmil Max
2 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
50 mm²
Multi-core min. conductor cross-section with ferrule
1,5 mm²
Multi-core max. conductor cross-section with ferrule
35 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
1,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
16 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
Internal cylindrical indicator
B9
Tightening Torque Min
2,5 Nm
Tightening Torque Max
3 Nm
DIMENSIONS
Width
16 mm
Length
52,80 mm
Height Mr 35x75
58,70 mm
Height MR 35x15
66,20 mm
Height Mr 32
mm
Certificates
CSA
cULus
VDE
ATEX
CE
EAC
DNV
ROHS
UKRAYNA
CSAConductor Cross-section
AWG 12-2
Nominal Current
115 A
Nominal Voltage
600 V
cULusConductor Cross-section
AWG 12-2
Nominal Current
115 A
Nominal Voltage
600 V
VDENominal Current
125 A
Nominal Voltage
750 V
ATEXNominal Current
125 A
Nominal Voltage
630 V
