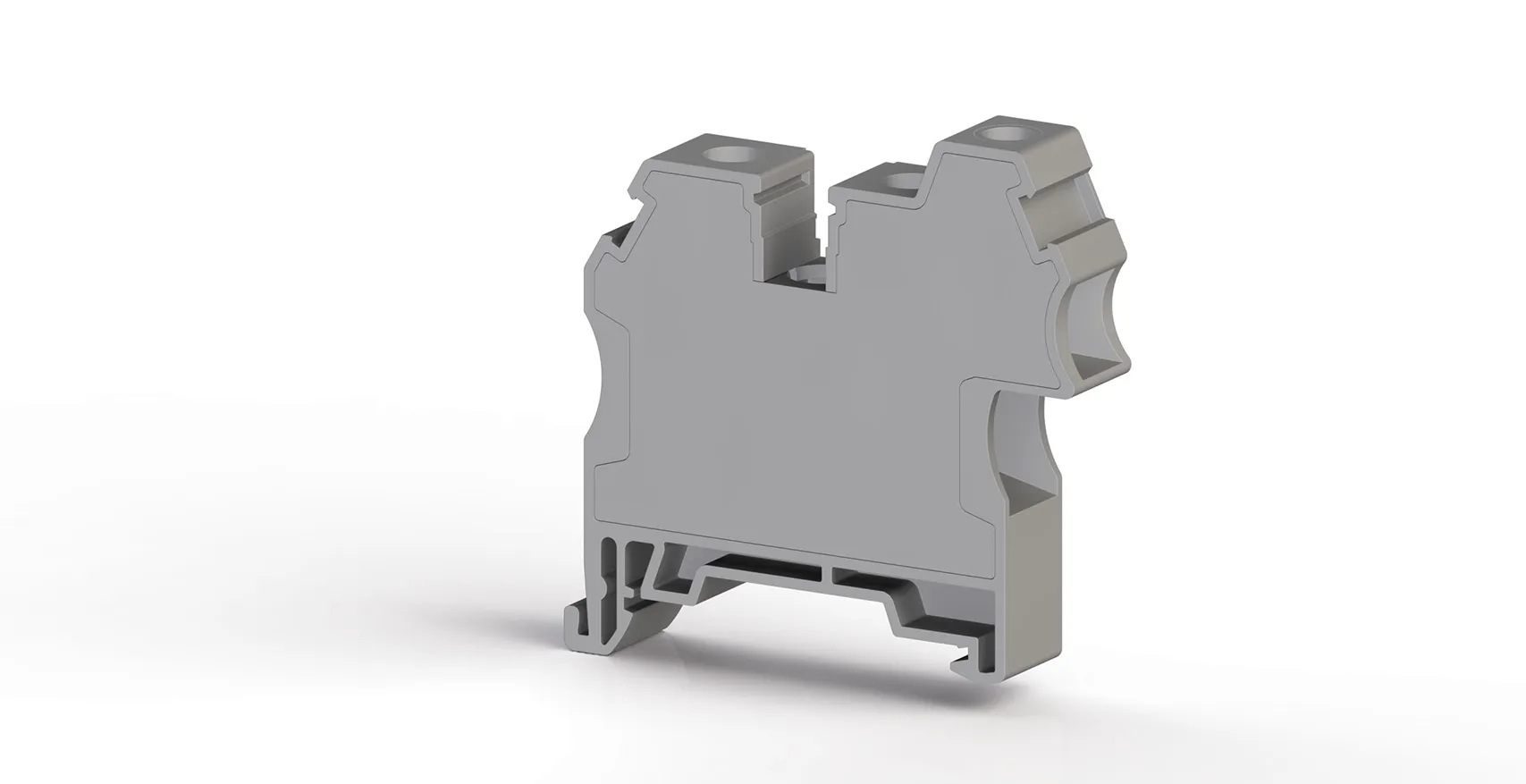

AVK 10RD4 Grey
Screw Type, 10 mm² 1 input(10 mm²) 2 output(10 mm²-4 mm²)feed-through terminal block (gray)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 60
Packing unit : 60 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304289
Packing Unit
60 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0122 kg.
Product Description
Screw Type, 10 mm² 1 input(10 mm²) 2 output(10 mm²-4 mm²)feed-through terminal block (gray)
Technical Information
PRODUCT FEATURES
Number of Connections
3
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,5 - 0,2 mm²
Single-core max. conductor cross-section
16 - 4 mm²
Conductor Cross Section Awgkcmil Min
20 - 24 AWG
Conductor Cross Section Awgkcmil Max
6 - 12 AWG
Multi-core min. conductor cross-section
0,5 - 0,2 mm²
Multi-core max. conductor cross-section
16 - 4 mm²
Multi-core min. conductor cross-section with ferrule
0,5-0,2 mm²
Multi-core max. conductor cross-section with ferrule
10-4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5-0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
6-1,5 mm²
Min. Stripping Length
10-7 mm
Max. Stripping Length
12-8 mm
Internal cylindrical indicator
B6-A4
Tightening Torque Min
1,2-0,5 Nm
Tightening Torque Max
1,8-0,8 Nm
Rail Tightening Torque Min
0,8 Nm
Rail Tightening Torque Max
1,0 Nm
DIMENSIONS
Width
10,00 mm
Length
51,40 mm
Height Mr 35x75
53,00 mm
Height MR 35x15
60,50 mm
Certificates
CE
EAC
UKRAYNA
ROHS
Accessories
Separation Plate
Product Code: 498130
IP 2S Printed
Product Code: 498140
IP 2
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Test Sockets
Terminal Thermal Printer Labels
Product Code: 813100
D-NS 10x10
