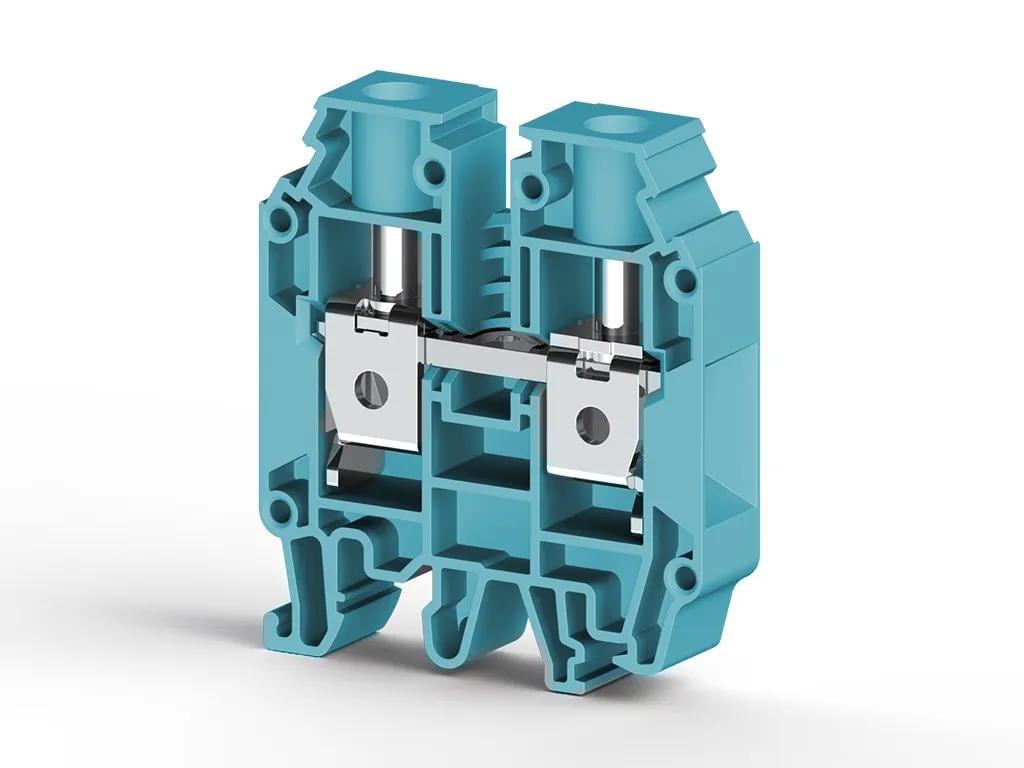

AVK 25 RD Blue
Screw Type, 25 mm² feed-through terminal block (blue)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304291
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0368 kg.
Product Description
Screw Type, 25 mm² feed-through terminal block (blue)
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Blue
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
101 A
Nominal Voltage
750 V
Maximum Load Current
125 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,5 mm²
Single-core max. conductor cross-section
35 mm²
Conductor Cross Section Awgkcmil Min
16 AWG
Conductor Cross Section Awgkcmil Max
2 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
35 mm²
Multi-core min. conductor cross-section with ferrule
1,5 mm²
Multi-core max. conductor cross-section with ferrule
25 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
1,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
10 mm²
Min. Stripping Length
12 mm
Max. Stripping Length
14 mm
Internal cylindrical indicator
B8
Tightening Torque Min
2 Nm
Tightening Torque Max
3 Nm
DIMENSIONS
Width
12 mm
Length
52,80 mm
Height Mr 35x75
61,10 mm
Height MR 35x15
68,60 mm
Height Mr 32
65,70 mm
Certificates
cULus
CE
EAC
DNV
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 12-2
Nominal Current
100 A
Nominal Voltage
600 V
Accessories
Separation Plate
Product Code: 498130
IP 2S Printed
Product Code: 498140
IP 2
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561250
IKT-D 5 (1,0 x Ø5,5)
Test Sockets
Product Code: 493050
TF (Ø 4)
Product Code: 490080
TSK 8 (Ø4)
Terminal Thermal Printer Labels
Product Code: 813450
D-NS 12x10
Screw Type Cross Connector
Cover
Product Code: 450250
NPP/AVK 25RD Grey
Product Code: 450251
NPP/AVK 25RD Blue
Rails
Product Code: 500101
MR 32 (1mt)
Product Code: 500102
MR 32 (2mt)
