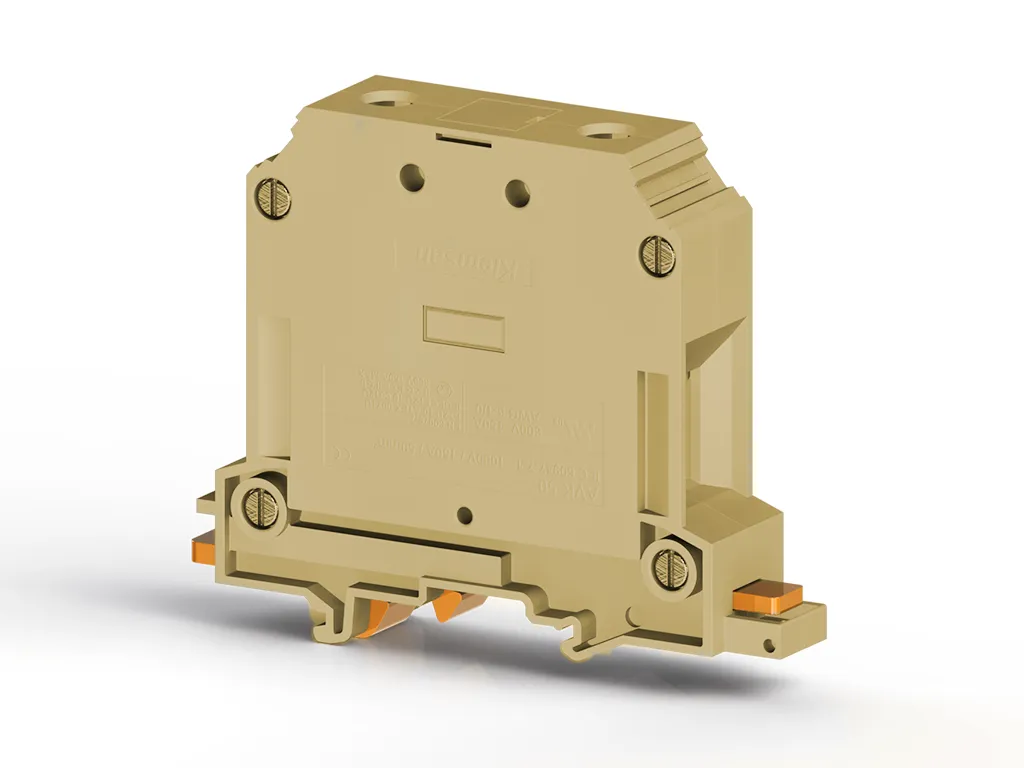

AVK 50 Beige
50mm² High Current Screw-Type Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 25
Packing unit : 25 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304339
Packing Unit
25 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.11828 kg.
Product Description
50mm² High Current Screw-Type Feed-Through Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Beige
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
150 A
Nominal Voltage
1000 V
Maximum Load Current
192 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
16 mm²
Single-core max. conductor cross-section
70 mm²
Conductor Cross Section Awgkcmil Min
10 AWG
Conductor Cross Section Awgkcmil Max
1/0 AWG
Multi-core min. conductor cross-section
25 mm²
Multi-core max. conductor cross-section
50 mm²
Multi-core min. conductor cross-section with ferrule
25 mm²
Multi-core max. conductor cross-section with ferrule
50 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
10 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
16 mm²
Min. Stripping Length
22 mm
Max. Stripping Length
24 mm
Internal cylindrical indicator
B10
Tightening Torque Min
6 Nm
Tightening Torque Max
10 Nm
DIMENSIONS
Width
20 mm
Length
95,20 mm
Height Mr 35x75
77 mm
Height MR 35x15
84,50 mm
Height Mr 32
81,60 mm
Certificates
ATEX
cULus
CE
UKCA
EAC
ROHS
UKRAYNA
ATEXConductor Cross-section
AWG 6-1/0
Nominal Current
150 A
Nominal Voltage
800 V
cULusNominal Current
150 A
Nominal Voltage
600 V
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
End Stop
Product Code: 495099
KD 6 Grey
Screw Type Cross Connector
Separation Plate
Product Code: 498240
IP 5
Product Code: 498250
IP 5S Printed
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
Rails
Product Code: 500101
MR 32 (1mt)
Product Code: 500102
MR 32 (2mt)
