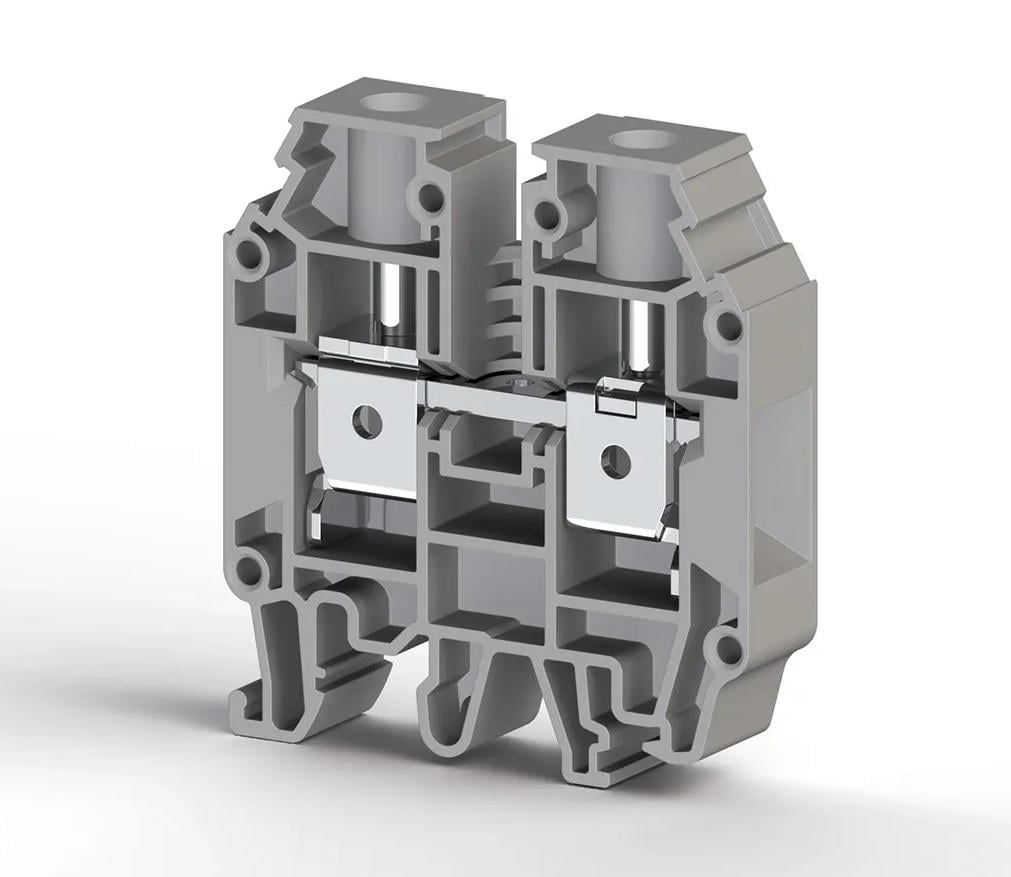

AVK 16 RD Grey
Screw Type, 16 mm² feed-through terminal block (gray)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304240
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.03176 kg.
Product Description
Screw Type, 16 mm² feed-through terminal block (gray)
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
76 A
Nominal Voltage
1000 V
Maximum Load Current
101 A
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
1,5 mm²
Max. Solid Conductor Cross-Sectional Area
25 mm²
Conductor Cross-Section AWG/kcmil Min.
16 AWG
Conductor Cross-Section AWG/kcmil Max.
4 AWG
Min. Stranded Conductor Cross-Sectional Area
1,5 mm²
Max. Stranded Conductor Cross-Sectional Area
25 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
1,5 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
16 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,75 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
10 mm²
Min. Stripping Length
12 mm
Max. Stripping Length
14 mm
Internal Cylindrical Indicator
B7
Tightening Torque Min.
1,2 Nm
Tightening Torque Max.
2 Nm
DIMENSIONS
Width
12 mm
Length
52,80 mm
Height MR 35x7.5
58,60 mm
Height MR 35x15
63,20 mm
Certificates
CSA
cULus
VDE
ATEX
CE
EAC
DNV
ROHS
UKRAYNA
UKCA
CSAConductor Cross-section
AWG 12-4
Nominal Current
80 A
Nominal Voltage
600 V
cULusConductor Cross-section
AWG 12-4
Nominal Current
80 A
Nominal Voltage
600 V
VDEConductor Cross-section
16 mm²
Nominal Current
76 A
Nominal Voltage
750 V
ATEXNominal Current
76 A
Nominal Voltage
630 V
Accessories
Separation Plate
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561250
IKT-D 5 (1,0 x Ø5,5)
Test Sockets
Product Code: 493050
TF (Ø 4)
Product Code: 490080
TSK 8 (Ø4)
Terminal Thermal Printer Labels
Product Code: 813450
D-NS 12x10
Screw Type Cross Connector
Cover
Product Code: 444170
NPP/AVK 16RD Grey
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
76 A
Nominal Voltage
1000 V
Maximum Load Current
101 A
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
1,5 mm²
Max. Solid Conductor Cross-Sectional Area
25 mm²
Conductor Cross-Section AWG/kcmil Min.
16 AWG
Conductor Cross-Section AWG/kcmil Max.
4 AWG
Min. Stranded Conductor Cross-Sectional Area
1,5 mm²
Max. Stranded Conductor Cross-Sectional Area
25 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
1,5 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
16 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,75 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
10 mm²
Min. Stripping Length
12 mm
Max. Stripping Length
14 mm
Internal Cylindrical Indicator
B7
Tightening Torque Min.
1,2 Nm
Tightening Torque Max.
2 Nm
DIMENSIONS
Width
12 mm
Length
52,80 mm
Height MR 35x7.5
58,60 mm
Height MR 35x15
63,20 mm
CSA
cULus
VDE
ATEX
CE
EAC
DNV
ROHS
UKRAYNA
UKCA
CSAConductor Cross-section
AWG 12-4
Nominal Current
80 A
Nominal Voltage
600 V
cULusConductor Cross-section
AWG 12-4
Nominal Current
80 A
Nominal Voltage
600 V
VDEConductor Cross-section
16 mm²
Nominal Current
76 A
Nominal Voltage
750 V
ATEXNominal Current
76 A
Nominal Voltage
630 V
