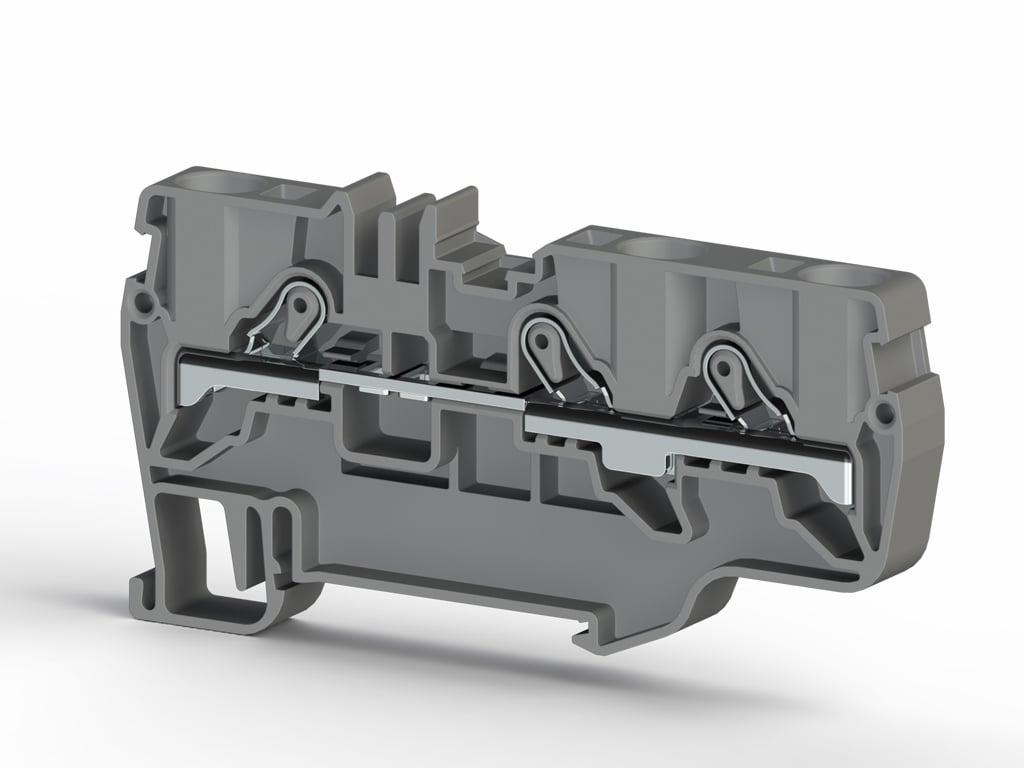

PYK 6E
Push-in Type, 6 mm² 1 input-2 output feed-through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 45 pcs.
Packing unit : 45 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307639
Packing Unit
45 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.019 kg.
Product Description
Push-in Type, 6 mm² 1 input-2 output feed-through terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
3
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
A
Nominal Voltage
1000 V
Maximum Load Current
57 A
Nominal Current In Fuse
41 A
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
DIMENSIONS
Width
8 mm
Length
85,50 mm
Height Mr 35x75
46,2 mm
Height MR 35x15
53,7 mm
Certificates
CSA
cULus
VDE
ATEX
UL
UKCA
CE
EAC
ROHS
CSAConductor Cross-section
AWG 20 - 8
Nominal Current
48 A
Nominal Voltage
600 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Cover
Product Code: 446680
NPP/PYK 6E Beige
Product Code: 446689
NPP/PYK 6E Grey
Plug-In Cross Connector
Test Sockets
Product Code: 498559
PYK TEST Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
