ASK 5

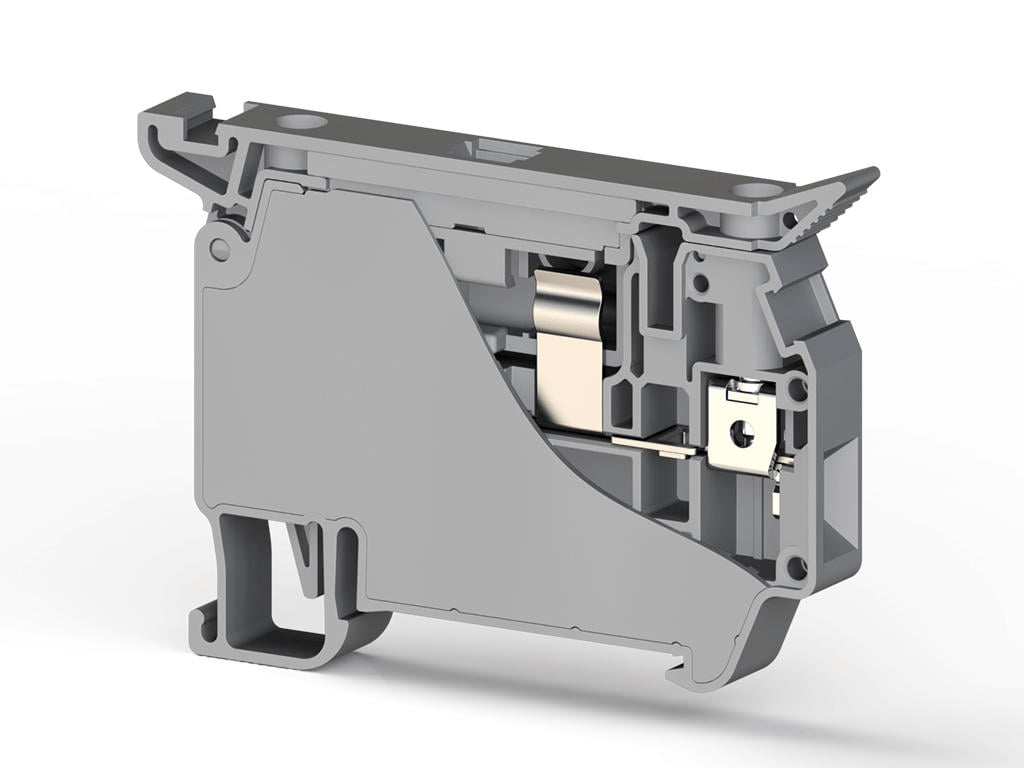

Screw Type, 4 mm², fuse terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
353409
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0176 kg.
Product Description
Screw Type, 4 mm², fuse terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-3
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Fuse
G / 5x20 - 5x25
Fuse Type
Cam / Glass
ELECTRICAL FEATURES
Nominal Current
10 A
Nominal Voltage
500 V
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0.2 mm²
Single-core max. conductor cross-section
6 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0.2 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
2.5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
9 mm
Internal cylindrical indicator
A4
Tightening Torque Min
0,5 Nm
Tightening Torque Max
0,8 Nm
DIMENSIONS
Width
8 mm
Length
69.60 mm
Height Mr 35x75
51 mm
Height MR 35x15
58.50 mm
Certificates
cULus
VDE
CE
EAC
ROHS
UKCA
UKRAYNA
cULusConductor Cross-section
AWG 26-10
Nominal Current
10:00 AM
Nominal Voltage
300 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561230
IKT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 812750
D-NS 8x10
