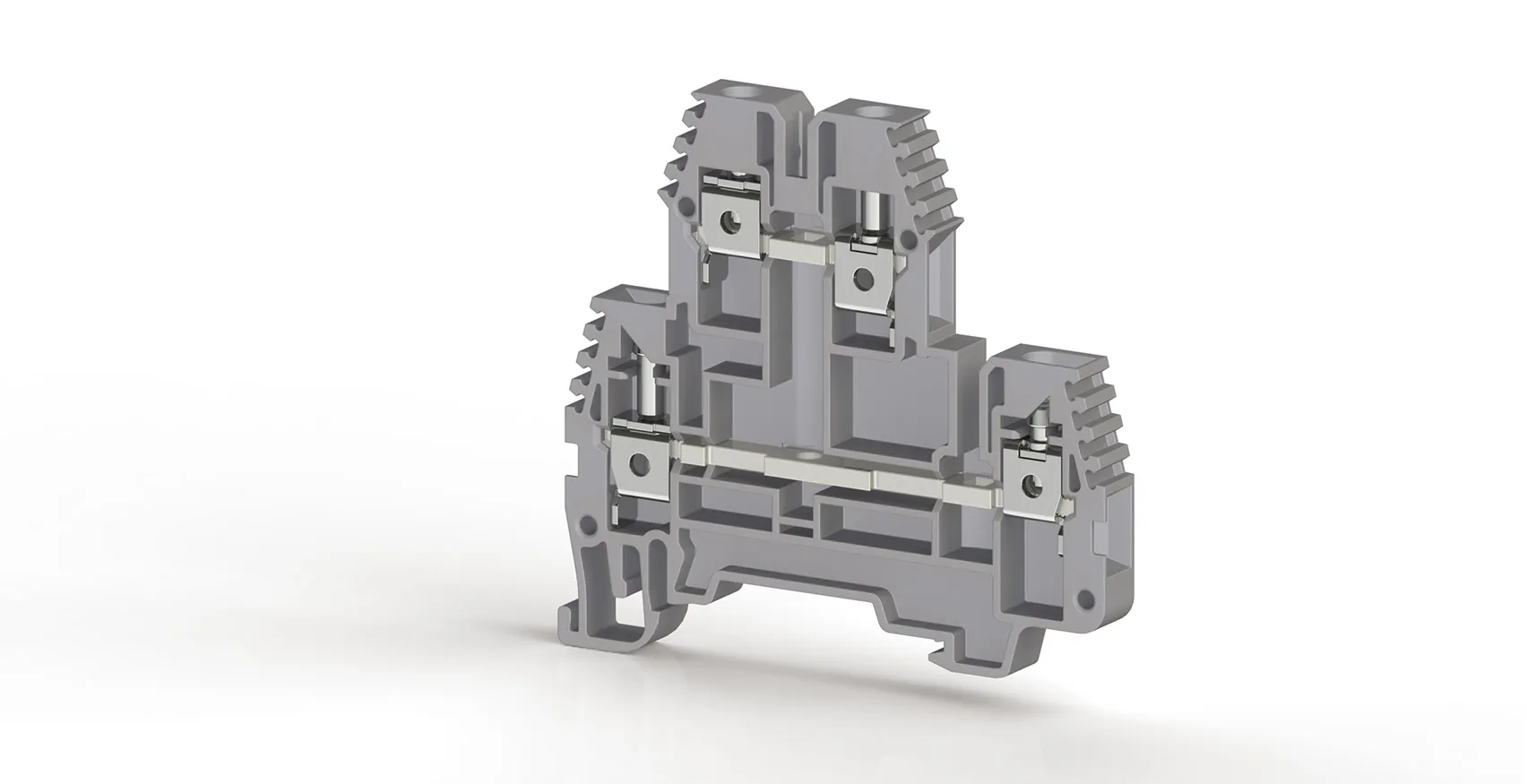

PIK 4RD Grey
Screw Type, 4 mm² 2 layer feed-through terminal block, push-in cross connection
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
325349
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0174 kg.
Product Description
Screw Type, 4 mm² 2 layer feed-through terminal block, push-in cross connection
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
32 A
Nominal Voltage
500 V
Maximum Load Current
39 A
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
6 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
10 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
6 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
4 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A4
Tightening Torque Min.
0,5 Nm
Tightening Torque Max.
0,8 Nm
DIMENSIONS
Width
6 mm
Length
64 mm
Height MR 35x7.5
61,20 mm
Height MR 35x15
68,70 mm
Certificates
CE
UKCA
ROHS
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561230
IKT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 812250
D-NS 6x10
Screw Type Cross Connector
Product Code: 474180
UK 4/20
Cover
Product Code: 449019
NPP/PIK 2,5N-4N Grey
