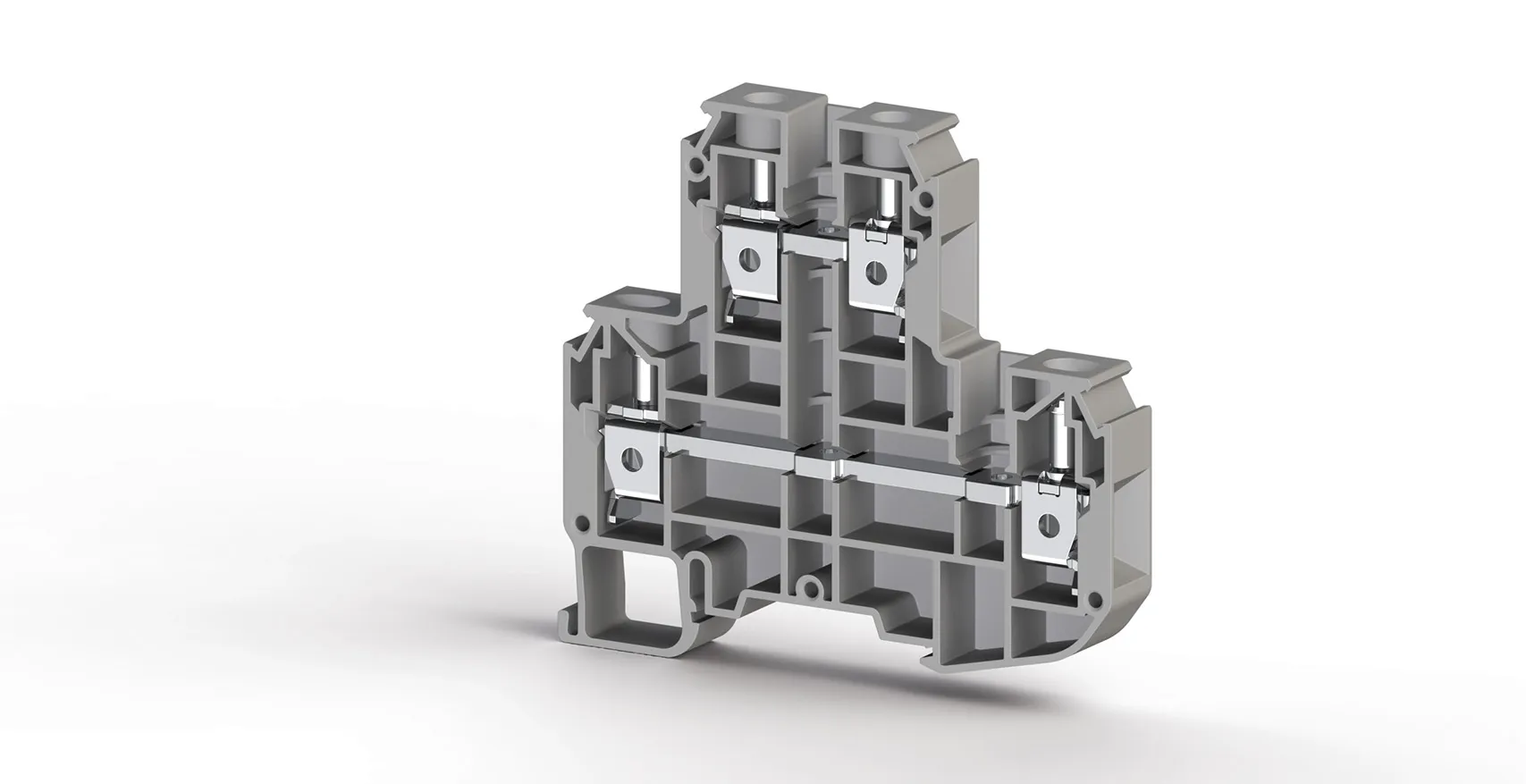

PIK 10N Grey
Screw Type, 10 mm² 2 layer feed-through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
319909
Packing Unit
20 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.041 kg.
Product Description
Screw Type, 10 mm² 2 layer feed-through terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
57 A
Nominal Voltage
800 V
Maximum Load Current
76 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,5 mm²
Single-core max. conductor cross-section
16 mm²
Conductor Cross Section Awgkcmil Min
16 AWG
Conductor Cross Section Awgkcmil Max
6 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
16 mm²
Multi-core min. conductor cross-section with ferrule
1,5 mm²
Multi-core max. conductor cross-section with ferrule
16 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
6 mm²
Min. Stripping Length
10 mm
Max. Stripping Length
12 mm
Internal cylindrical indicator
B6
Tightening Torque Min
1,2 Nm
Tightening Torque Max
1,8 Nm
DIMENSIONS
Width
10 mm
Length
78,65 mm
Height Mr 35x75
72,90 mm
Height MR 35x15
80,40 mm
Certificates
CE
UKCA
UKRAYNA
ROHS
EAC
