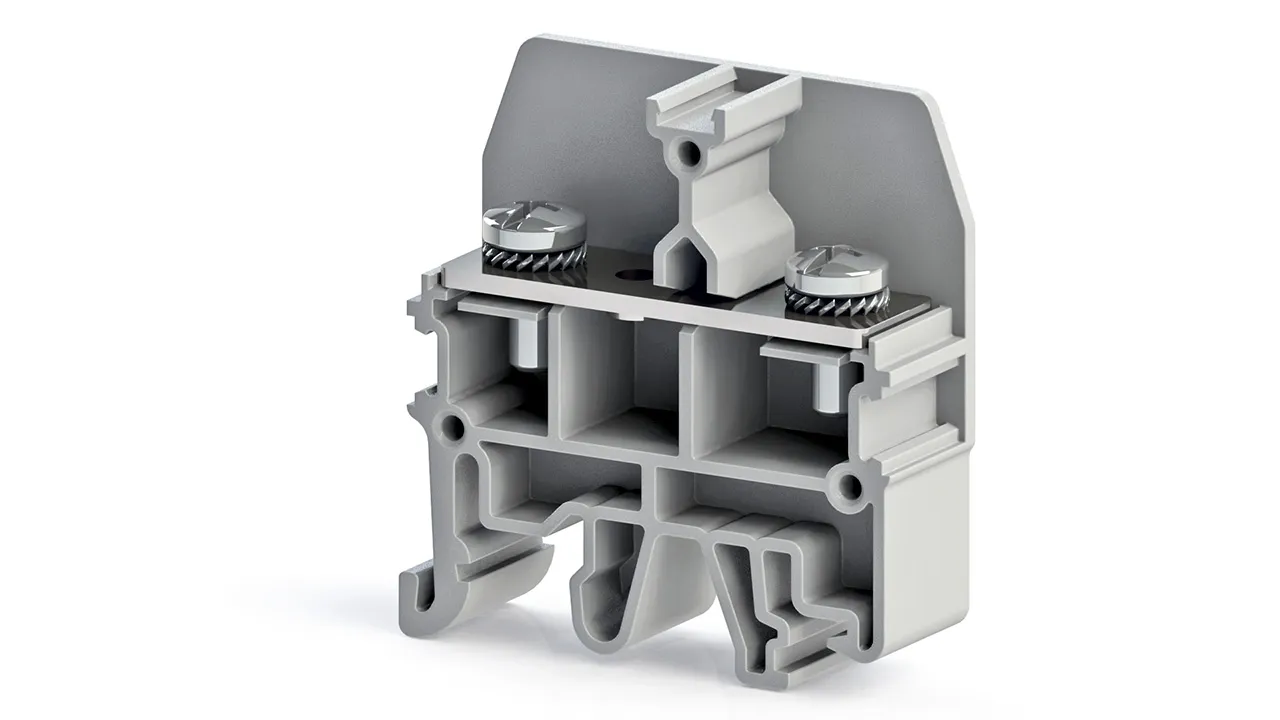

CPB 6U Grey
Fork Type, 6 mm² Fork type lug connection
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 25
Packing unit : 25 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
326829
Packing Unit
25 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0168 kg.
Product Description
Fork Type, 6 mm² Fork type lug connection
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
3
Insulation Material Group
1
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
57 A
Nominal Voltage
500 V
CONNECTION DATA
Connection Type
Bolt Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
20 AWG AWG
Conductor Cross Section Awgkcmil Max
8 AWG AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
10 mm²
Tightening Torque Min
1,2 Nm
Tightening Torque Max
1,8 Nm
DIMENSIONS
Width
13,00 mm
Length
42,60 mm
Height Mr 35x75
46,50 mm
Height MR 35x15
54,00 mm
Height Mr 32
51,10 mm
Certificates
CE
ROHS
UKCA
cULus
CEConductor Cross-section
AWG 10-20
Nominal Current
41 A
Nominal Voltage
300 V
