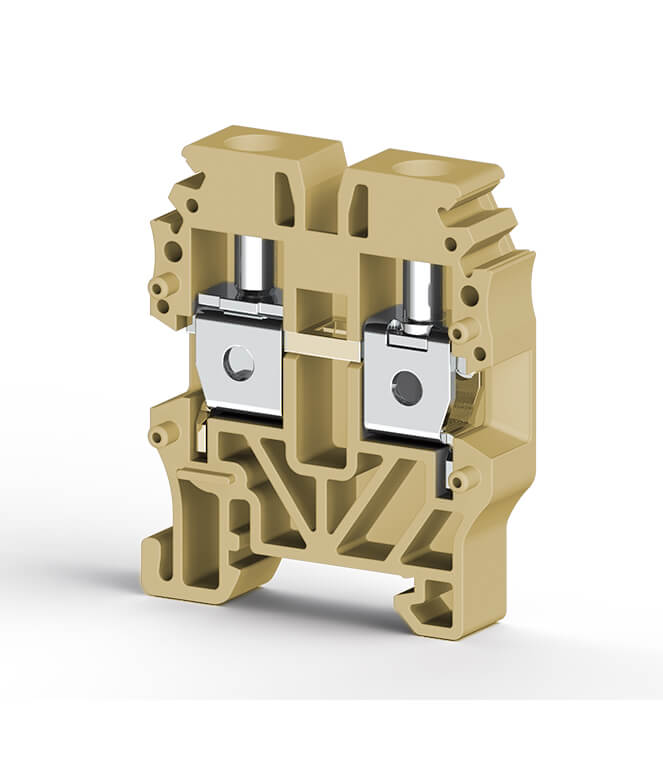

MVK 4 Beige
Screw Type, 4 mm² feed-through terminal block for MR15 DIN rails (beige)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304430
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.00658 kg.
Product Description
Screw Type, 4 mm² feed-through terminal block for MR15 DIN rails (beige)
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Beige
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
32 A
Nominal Voltage
400 V
Maximum Load Current
41 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
6 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
B4
Tightening Torque Min
0,5 Nm
Tightening Torque Max
0,8 Nm
DIMENSIONS
Width
6 mm
Length
27,7 mm
Height Mr 15x55
33,7 mm
Certificates
cULus
ATEX
CE
EAC
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 24-10
Nominal Current
30 A
Nominal Voltage
300 V
ATEXNominal Current
31,5 A
Nominal Voltage
400 V
