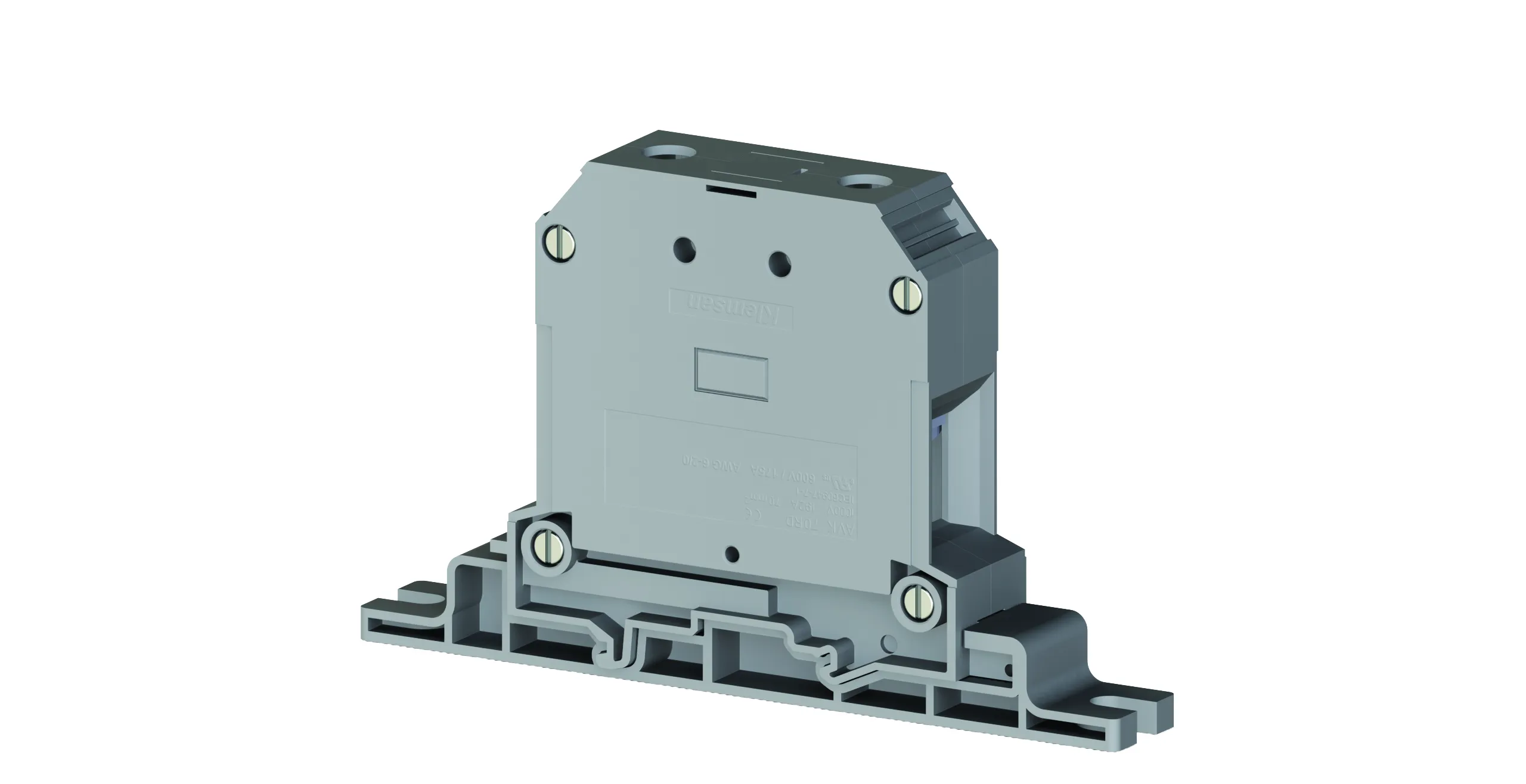

AVK PB240 Gri
240mm² High Current Screw-Type Panel-Mounted Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 6
Packing unit : 6 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304480
Packing Unit
6 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.4066 kg.
Product Description
240mm² High Current Screw-Type Panel-Mounted Feed-Through Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
415 A
Nominal Voltage
1000 V
Maximum Load Current
415 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
50 mm²
Single-core max. conductor cross-section
240 mm²
Conductor Cross Section Awgkcmil Min
2/0 AWG
Conductor Cross Section Awgkcmil Max
500 AWG
Multi-core min. conductor cross-section
70 mm²
Multi-core max. conductor cross-section
240 mm²
Multi-core min. conductor cross-section with ferrule
70 mm²
Multi-core max. conductor cross-section with ferrule
185 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
35 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
50 mm²
Min. Stripping Length
33 mm
Max. Stripping Length
35 mm
Internal cylindrical indicator
A16
Tightening Torque Min
10 Nm
Tightening Torque Max
20 Nm
DIMENSIONS
Width
36 mm
Length
135,4 mm
Height
124 mm
Certificates
CE
EAC
ROHS
UKRAYNA
UKCA
