AVK 70RD Grey

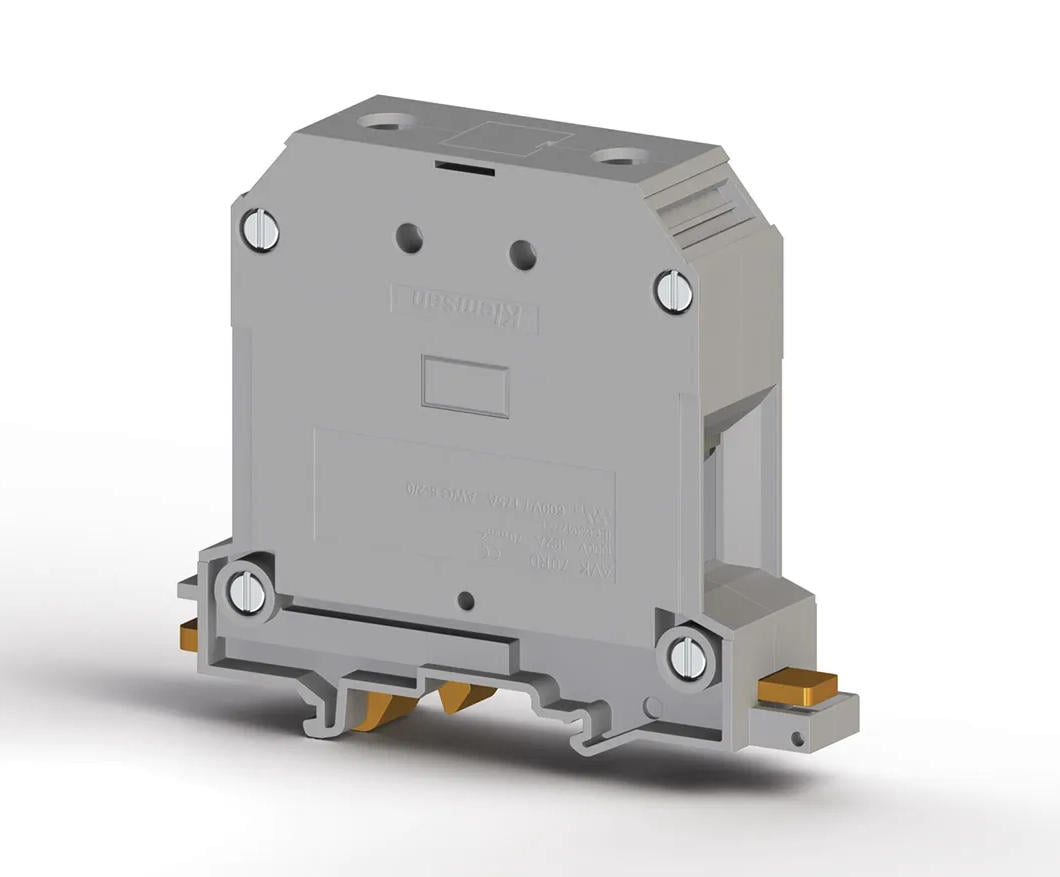

70mm² High Current Screw-Type Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304490
Packing Unit
10 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.148 kg.
Product Description
70mm² High Current Screw-Type Feed-Through Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
192 A
Nominal Voltage
1000 V
Maximum Load Current
192 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
16 mm²
Single-core max. conductor cross-section
70 mm²
Conductor Cross Section Awgkcmil Min
6 AWG
Conductor Cross Section Awgkcmil Max
2/0 AWG
Multi-core min. conductor cross-section
16 mm²
Multi-core max. conductor cross-section
70 mm²
Multi-core min. conductor cross-section with ferrule
16 mm²
Multi-core max. conductor cross-section with ferrule
70 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
16 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
25 mm²
Min. Stripping Length
22 mm
Max. Stripping Length
24 mm
Internal cylindrical indicator
A11
Tightening Torque Min
6 Nm
Tightening Torque Max
12 Nm
DIMENSIONS
Width
22 mm
Length
94,60 mm
Height Mr 35x75
81 mm
Height MR 35x15
88,5 mm
Height Mr 32
85,60 mm
Certificates
CE
ROHS
UKCA
cULus
EAC
UKRAYNA
CEConductor Cross-section
AWG 6-2/0
Nominal Current
175 A
Nominal Voltage
600 V
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screw Type Cross Connector
Separation Plate
Product Code: 498240
IP 5
Product Code: 498250
IP 5S Printed
Rails
Product Code: 500101
MR 32 (1mt)
Product Code: 500102
MR 32 (2mt)
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
192 A
Nominal Voltage
1000 V
Maximum Load Current
192 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
16 mm²
Single-core max. conductor cross-section
70 mm²
Conductor Cross Section Awgkcmil Min
6 AWG
Conductor Cross Section Awgkcmil Max
2/0 AWG
Multi-core min. conductor cross-section
16 mm²
Multi-core max. conductor cross-section
70 mm²
Multi-core min. conductor cross-section with ferrule
16 mm²
Multi-core max. conductor cross-section with ferrule
70 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
16 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
25 mm²
Min. Stripping Length
22 mm
Max. Stripping Length
24 mm
Internal cylindrical indicator
A11
Tightening Torque Min
6 Nm
Tightening Torque Max
12 Nm
DIMENSIONS
Width
22 mm
Length
94,60 mm
Height Mr 35x75
81 mm
Height MR 35x15
88,5 mm
Height Mr 32
85,60 mm
CE
ROHS
UKCA
cULus
EAC
UKRAYNA
CEConductor Cross-section
AWG 6-2/0
Nominal Current
175 A
Nominal Voltage
600 V
