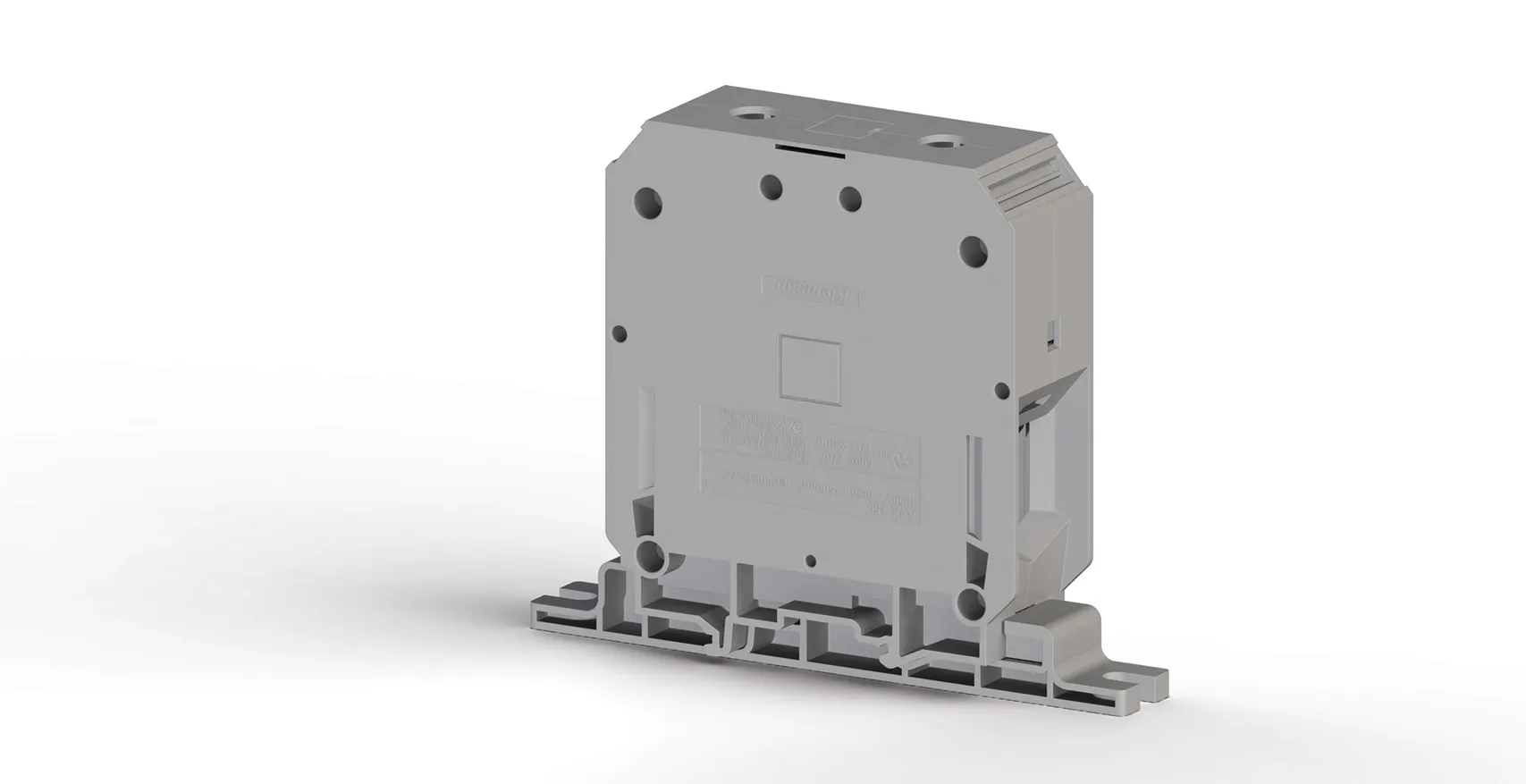

AVK PB150 Grey
150mm² High Current Screw-Type Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 4
Packing unit : 4 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304470
Packing Unit
4 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.345 kg.
Product Description
150mm² High Current Screw-Type Feed-Through Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
309 A
Nominal Voltage
1000 V
Maximum Load Current
309 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
35 mm²
Single-core max. conductor cross-section
150 mm²
Conductor Cross Section Awgkcmil Min
2 AWG
Conductor Cross Section Awgkcmil Max
300 kcmil
Multi-core min. conductor cross-section
50 mm²
Multi-core max. conductor cross-section
150 mm²
Multi-core min. conductor cross-section with ferrule
50 mm²
Multi-core max. conductor cross-section with ferrule
150 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
25 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
50 mm²
Min. Stripping Length
29 mm
Max. Stripping Length
31 mm
Internal cylindrical indicator
B14
Tightening Torque Min
10 Nm
Tightening Torque Max
18 Nm
DIMENSIONS
Width
31 mm
Length
135,4 mm
Height
109 mm
Certificates
CE
EAC
ROHS
UKRAYNA
UKCA
