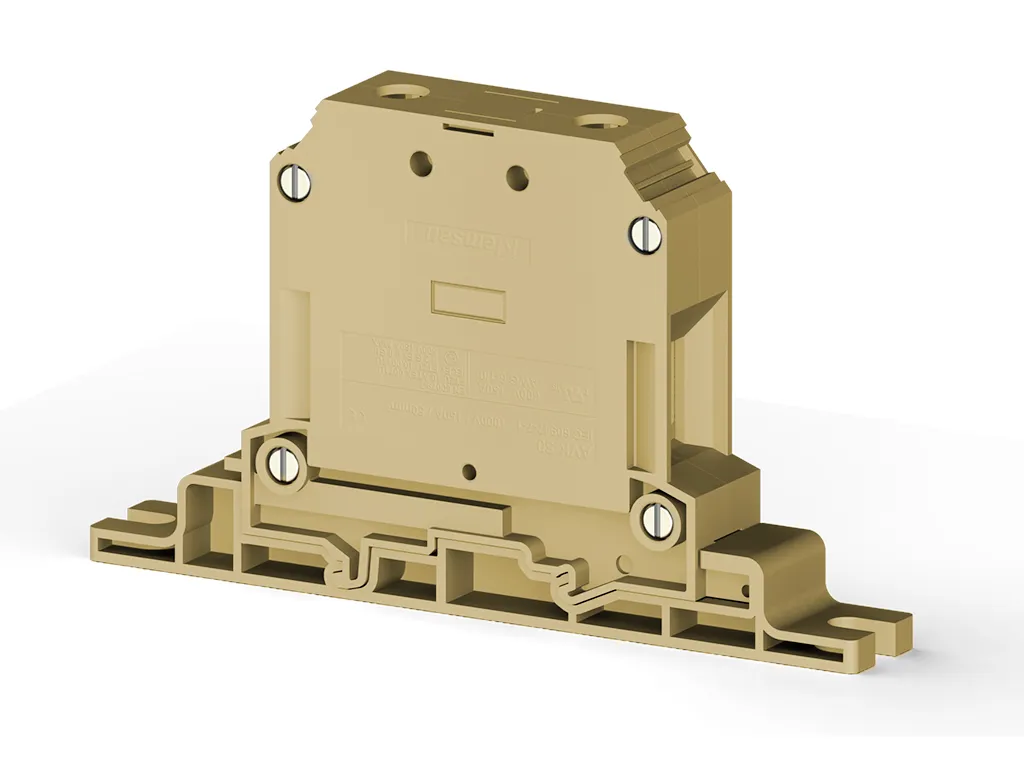

AVK PB50 Beige
50mm² High Current Screw-Type Panel-Mounted Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 6
Packing unit : 6 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304449
Packing Unit
6 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.14 kg.
Product Description
50mm² High Current Screw-Type Panel-Mounted Feed-Through Terminal Block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Beige
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
150 A
Nominal Voltage
1000 V
Maximum Load Current
192 A
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
16 mm²
Max. Solid Conductor Cross-Sectional Area
70 mm²
Conductor Cross-Section AWG/kcmil Min.
10 AWG
Conductor Cross-Section AWG/kcmil Max.
1/0 AWG
Min. Stranded Conductor Cross-Sectional Area
25 mm²
Max. Stranded Conductor Cross-Sectional Area
50 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
50 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
10 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
16 mm²
Min. Stripping Length
22 mm
Max. Stripping Length
24 mm
Internal Cylindrical Indicator
B10
Tightening Torque Min.
6 Nm
Tightening Torque Max.
10 Nm
DIMENSIONS
Width
20 mm
Length
135,4 mm
Yükseklik
78,5 mm
Certificates
CE
EAC
ROHS
UKRAYNA
UKCA
Accessories
Screw Type Cross Connector
Separation Plate
Product Code: 498240
IP 5
Product Code: 498250
IP 5S Printed
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
