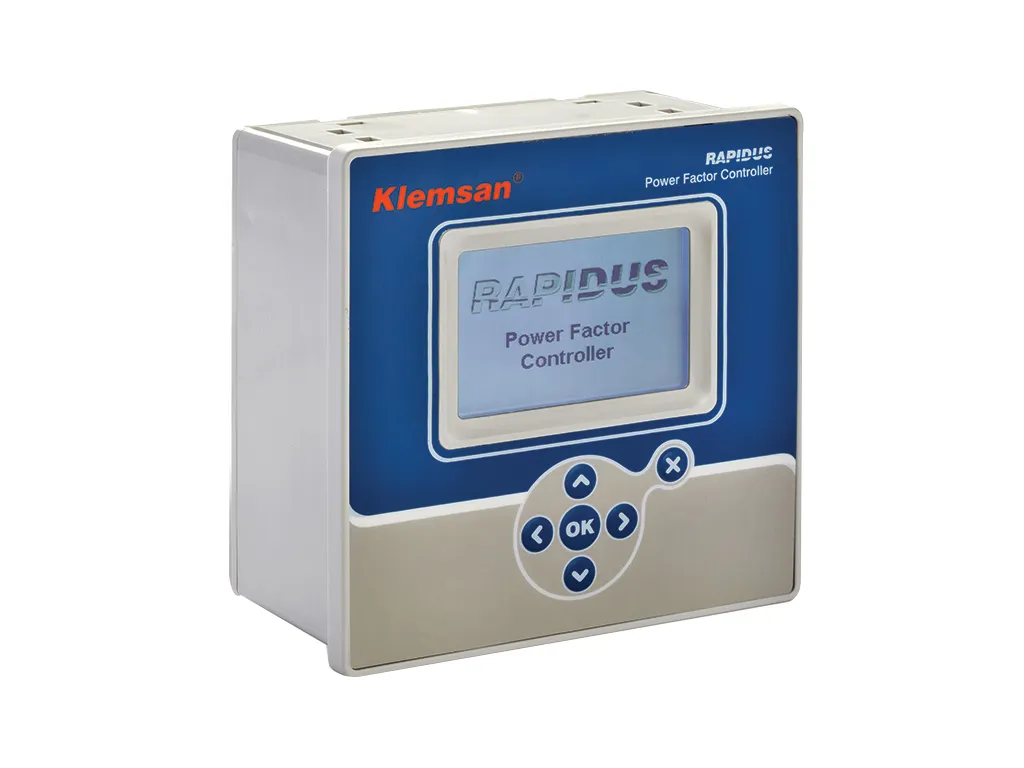

RAPIDUS 212R
Power Factor Controller (1Ø-24 level)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606014
Packing Unit
1 pcs.
Customs Tariff No.
903289000000
Weight per piece (inc. packing)
750g kg.
Product Description
Power Factor Controller (1Ø-24 level)
Technical Information
PRODUCT SPECIFICATIONS
THD (Voltage)
+
THD (Current)
+
CONNECTION DATA
Connection Type
Single phase (L-L or L-N) voltage connection with 1 CT
GENERAL
Measurement System
1Ø
LCD Display
+
Language Support
Turkish, English, Russian
Password Protection
+
Voltage Transformer Ratio (VTR)
1 - 5000
Current Transformer Ratio (CTR)
1 - 5.000
Measurements per Period
512
LCD Refresh Rate
1 sn.
Networks
TT, TN, IT
Battery
+
Real-Time Clock
+
Four-Quadrant Measurement
4
Demand Period
1-60 min. adjustable
Phase Diagram
Available
Min./Max. Demand Values
+
MECHANICAL SPECIFICATIONS
Weight (g)
750
Protection Class
Front IP40 / Rear IP20
Mounting Method
Panel Mount
Pack Quantity
1
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95%
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
2400-115200 bps adjustable
Parity
---
Stop Bit
1
Slave ID
1-247
Insulation
2000V RMS
CURRENT MEASUREMENT INPUT
Measurement Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45-65 Hz
25.6 kHz
INPUTS AND OUTPUTS
Digital Outputs
--
Analog Outputs
--
STEP CONFIGURATIONS
Manual Definition
+
Predefined
1-1-1-1, 1-1-2-2, 1-2-2-4, 1-2-3-3, 1-2-4-4, 1-1-2-4, 1-2-3-4, 1-2-4-8, 1-1-2-3
Power (kVAr)
0.00-1000 adjustable
Type
3Ø capacitor, 3Ø shunt reactor adjustable
DCM
+
Fixed Step Assignment
+
POWER FACTOR SETTINGS
Target 1 cos φ
0.8 cap. to 0.8 ind. adjustable
Target 2 cos φ
0.8 cap. to 0.8 ind. adjustable
ENERGY MEASUREMENT
Multiple Sub-Tariff (Peak, On-Peak, Off-Peak)
1
Three-Phase Energy Measurement
Available
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
L-N Measurement Range
95-272 VAC ±10%
L-L Measurement Range
164-471 VAC ±10%
Frequency Measurement Range
45-65 Hz
Power Consumption
<0.1 VA
Sampling Frequency Between 45-65 Hz
25.6 kHz
POWER QUALITY MEASUREMENTS
Harmonics for Current and Voltage Phases
Up to 51st
MEASUREMENT ACCURACY IEC 61557-12
Total Active Power
Class 0.2
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.05
Current
Class 0.2
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
THDv / THDi
Class 1
Total Apparent Power
Class 0.2
Total Active Energy
Class 0.5
MEASUREMENT ACCURACY IEC 62053-22
Total Active Energy
Class 0.2S
MEASUREMENT ACCURACY IEC 62053-23
Total Reactive Energy
Class 2
POWER FACTOR CORRECTION RELAY OUTPUTS
Number of Outputs
24
Type
NO (SPST)
Max. Switching Current
2A
Max. Switching Voltage
250VAC
Max. Switching Power
1250VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
ALARM RELAY OUTPUTS
Number of Outputs
2
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250 VAC
Max. Switching Power
1250 VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
GENERATOR DAY/NIGHT INPUT
Number of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
CABLE CROSS-SECTIONS
Voltage, Current, All Relay Outputs, Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
RS485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
CONTROL OPERATIONS AND FUNCTIONS
Phase Switching Angle
±45 degree adjustable
Average Time
Off, 5 sec, 10 sec, 20 sec, 30 sec, 40 sec, 50 sec, 60 sec adjustable
Step Deactivation Time
1-600 sec. adjustable
Step Discharge Time
3-1000 sec. adjustable
Step Activation Time
1-600 sec. adjustable
TIME-STAMPED DATA STORAGE
Hourly Records
1920 Hours x 68 Different Paramaters
Daily Records
240 Days x 68 Different Paramaters
Monthly Records
36 Months x 68 Different Paramaters
Demand
4 Months x 16 Different Parameters
Alarm Records
50
POWER SUPPLY
Backup Power Input
--
Voltage
La-Lb den 95-410VAC ±10%
Frequency
45-65Hz
Consumption
< 10VA
POWER FACTOR CORRECTION MODES
Rapidus Smart Control Mode
+
Manual
+
Linear
+
Circular
+
Sequential
+
EMC/EMI
EN 61000-6-1
2011
En 61000 6 3%a1ac
2013
Certificates
CE
UKRAYNA
Accessories
PRODUCT SPECIFICATIONS
THD (Voltage)
+
THD (Current)
+
CONNECTION DATA
Connection Type
Single phase (L-L or L-N) voltage connection with 1 CT
GENERAL
Measurement System
1Ø
LCD Display
+
Language Support
Turkish, English, Russian
Password Protection
+
Voltage Transformer Ratio (VTR)
1 - 5000
Current Transformer Ratio (CTR)
1 - 5.000
Measurements per Period
512
LCD Refresh Rate
1 sn.
Networks
TT, TN, IT
Battery
+
Real-Time Clock
+
Four-Quadrant Measurement
4
Demand Period
1-60 min. adjustable
Phase Diagram
Available
Min./Max. Demand Values
+
MECHANICAL SPECIFICATIONS
Weight (g)
750
Protection Class
Front IP40 / Rear IP20
Mounting Method
Panel Mount
Pack Quantity
1
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95%
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
2400-115200 bps adjustable
Parity
---
Stop Bit
1
Slave ID
1-247
Insulation
2000V RMS
CURRENT MEASUREMENT INPUT
Measurement Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45-65 Hz
25.6 kHz
INPUTS AND OUTPUTS
Digital Outputs
--
Analog Outputs
--
STEP CONFIGURATIONS
Manual Definition
+
Predefined
1-1-1-1, 1-1-2-2, 1-2-2-4, 1-2-3-3, 1-2-4-4, 1-1-2-4, 1-2-3-4, 1-2-4-8, 1-1-2-3
Power (kVAr)
0.00-1000 adjustable
Type
3Ø capacitor, 3Ø shunt reactor adjustable
DCM
+
Fixed Step Assignment
+
POWER FACTOR SETTINGS
Target 1 cos φ
0.8 cap. to 0.8 ind. adjustable
Target 2 cos φ
0.8 cap. to 0.8 ind. adjustable
ENERGY MEASUREMENT
Multiple Sub-Tariff (Peak, On-Peak, Off-Peak)
1
Three-Phase Energy Measurement
Available
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
L-N Measurement Range
95-272 VAC ±10%
L-L Measurement Range
164-471 VAC ±10%
Frequency Measurement Range
45-65 Hz
Power Consumption
<0.1 VA
Sampling Frequency Between 45-65 Hz
25.6 kHz
POWER QUALITY MEASUREMENTS
Harmonics for Current and Voltage Phases
Up to 51st
MEASUREMENT ACCURACY IEC 61557-12
Total Active Power
Class 0.2
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.05
Current
Class 0.2
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
THDv / THDi
Class 1
Total Apparent Power
Class 0.2
Total Active Energy
Class 0.5
MEASUREMENT ACCURACY IEC 62053-22
Total Active Energy
Class 0.2S
MEASUREMENT ACCURACY IEC 62053-23
Total Reactive Energy
Class 2
POWER FACTOR CORRECTION RELAY OUTPUTS
Number of Outputs
24
Type
NO (SPST)
Max. Switching Current
2A
Max. Switching Voltage
250VAC
Max. Switching Power
1250VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
ALARM RELAY OUTPUTS
Number of Outputs
2
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250 VAC
Max. Switching Power
1250 VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
GENERATOR DAY/NIGHT INPUT
Number of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
CABLE CROSS-SECTIONS
Voltage, Current, All Relay Outputs, Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
RS485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
CONTROL OPERATIONS AND FUNCTIONS
Phase Switching Angle
±45 degree adjustable
Average Time
Off, 5 sec, 10 sec, 20 sec, 30 sec, 40 sec, 50 sec, 60 sec adjustable
Step Deactivation Time
1-600 sec. adjustable
Step Discharge Time
3-1000 sec. adjustable
Step Activation Time
1-600 sec. adjustable
TIME-STAMPED DATA STORAGE
Hourly Records
1920 Hours x 68 Different Paramaters
Daily Records
240 Days x 68 Different Paramaters
Monthly Records
36 Months x 68 Different Paramaters
Demand
4 Months x 16 Different Parameters
Alarm Records
50
POWER SUPPLY
Backup Power Input
--
Voltage
La-Lb den 95-410VAC ±10%
Frequency
45-65Hz
Consumption
< 10VA
POWER FACTOR CORRECTION MODES
Rapidus Smart Control Mode
+
Manual
+
Linear
+
Circular
+
Sequential
+
EMC/EMI
EN 61000-6-1
2011
En 61000 6 3%a1ac
2013
CE
UKRAYNA
