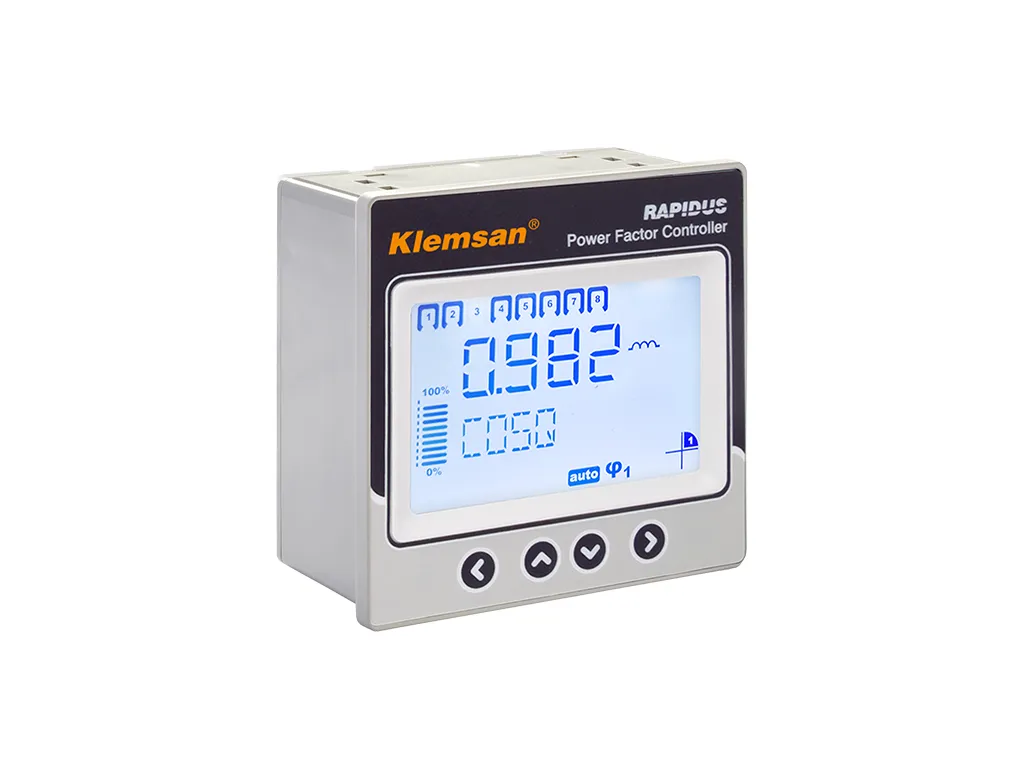

RAPIDUS 111R
Power Factor Controller
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606061
Packing Unit
1 pcs.
Customs Tariff No.
903289000000
Weight per piece (inc. packing)
0.94 kg.
Product Description
Power Factor Controller
Technical Information
PRODUCT SPECIFICATIONS
THD (Voltage)
+
THD (Current)
+
CONNECTION DATA
Connection Type
L-L L-N
GENERAL
Measurement System
1Ø
LCD Display
+
Language Support
Turkish, English
Password Protection
+
Voltage Transformer Ratio (VTR)
1 - 999.9
Current Transformer Ratio (CTR)
1 - 5.000
Measurements per Period
512
LCD Refresh Rate
<0.5 sec. sn.
Networks
TT, TN,
MECHANICAL SPECIFICATIONS
Weight (g)
0,94
Protection Class
Front IP40 / Rear IP20
Mounting Method
Panel Mount
Pack Quantity
1
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95%
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-38400 bps adjustable
Parity
---
Stop Bit
1
Slave ID
1-247
Insulation
2000V RMS
CURRENT MEASUREMENT INPUT
Measurement Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
---
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45-65 Hz
25.6 kHz
INPUTS AND OUTPUTS
Digital Outputs
--
Analog Outputs
--
STEP CONFIGURATIONS
Manual Definition
+
Predefined
1-1-1-1, 1-2-2-2, 1-2-4-4
Power (kVAr)
0.00-1000 adjustable
Type
3Ø capacitor, 1Ø capacitor
POWER FACTOR SETTINGS
Target 1 cos φ
0.8 cap. to 0.8 ind. adjustable
Target 2 cos φ
0.8 cap. to 0.8 ind. adjustable
Dual cos φ Target
+
Four-Quadrant Operation for Generators
+
ENERGY MEASUREMENT
Multiple Sub-Tariff (Peak, On-Peak, Off-Peak)
--
Single-Phase Energy Measurement
--
Three-Phase Energy Measurement
--
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
L-N Measurement Range
120...510V AC ±10%
L-L Measurement Range
120...510V AC ±10%
Frequency Measurement Range
45-65 Hz
Power Consumption
<0.2 VA
Sampling Frequency Between 45-65 Hz
25.6 kHz
MEASUREMENT ACCURACY IEC 61557-12
Total Active Power
Class 0.5
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.1
Current
Class 0.5
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
THDv / THDi
Class 1
Total Apparent Power
Class 0.5
Total Active Energy
Class 0.5
MEASUREMENT ACCURACY IEC 62053-22
Total Active Energy
Class 0.5S
MEASUREMENT ACCURACY IEC 62053-23
Total Reactive Energy
Class 2
POWER FACTOR CORRECTION RELAY OUTPUTS
Number of Outputs
4
Type
NO (SPST)
Max. Switching Current
2A
Max. Switching Voltage
250VAC
Max. Switching Power
1250VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
ALARM RELAY OUTPUTS
Number of Outputs
2
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250 VAC
Max. Switching Power
1250 VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
GENERATOR DAY/NIGHT INPUT
Number of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
CABLE CROSS-SECTIONS
Voltage, Current, All Relay Outputs, Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
RS485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
Diagrams
Mains Connection
+
Step Output Connections
+
POWER SUPPLY
Backup Power Input
--
Voltage
La-Lb den 120...510V AC ±10%
Frequency
45-65Hz
Consumption
< 10VA
POWER FACTOR CORRECTION MODES
Rapidus Smart Control Mode
+
Manual
+
EMC/EMI
EN 61000-6-1
2011
Certificates
CE
UKRAYNA
