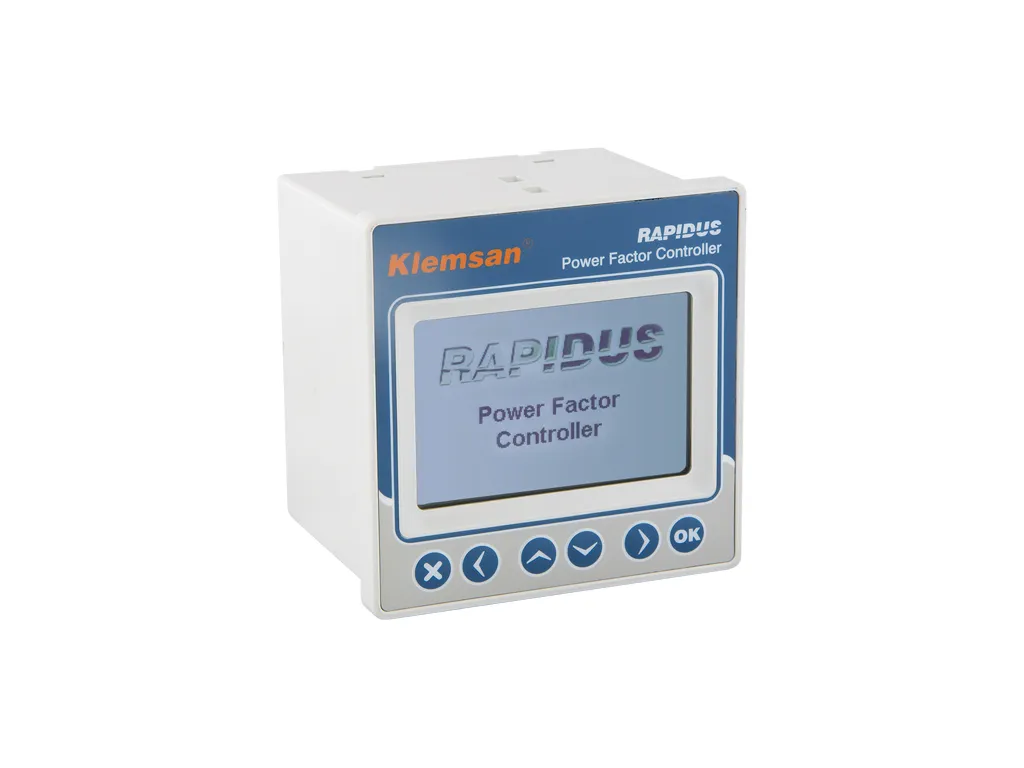

RAPIDUS 218R
Power Factor Controller (1Ø-8 level)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606021
Packing Unit
1 pcs.
Customs Tariff No.
903289000000
Weight per piece (inc. packing)
415g kg.
Product Description
Power Factor Controller (1Ø-8 level)
Technical Information
PRODUCT SPECIFICATIONS
THD (Voltage)
+
THD (Current)
+
CONNECTION DATA
Connection Type
Single phase (L-L or L-N) voltage connection with 1 CT
GENERAL
Measurement System
1Ø
LCD Display
+
Language Support
Turkish, English, Russian
Password Protection
+
Voltage Transformer Ratio (VTR)
1 - 5000
Current Transformer Ratio (CTR)
1 - 5.000
Measurements per Period
512
LCD Refresh Rate
1 sn.
Networks
TT, TN, IT
Battery
+
Real-Time Clock
+
Four-Quadrant Measurement
4
Demand Period
1-60 min. adjustable
Phase Diagram
Available
Min./Max. Demand Values
+
MECHANICAL SPECIFICATIONS
Weight (g)
415
Protection Class
Front IP40 / Rear IP20
Mounting Method
Panel Mount
Pack Quantity
1
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95%
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
2400-115200 bps adjustable
Parity
---
Stop Bit
1
Slave ID
1-247
Insulation
2000V RMS
CURRENT MEASUREMENT INPUT
Measurement Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45-65 Hz
25.6 kHz
INPUTS AND OUTPUTS
Digital Outputs
--
Analog Outputs
--
STEP CONFIGURATIONS
Manual Definition
+
Predefined
1-1-1-1, 1-1-2-2, 1-2-2-4, 1-2-3-3, 1-2-4-4, 1-1-2-4, 1-2-3-4, 1-2-4-8, 1-1-2-3
Power (kVAr)
0.00-1000 adjustable
Type
3Ø capacitor, 3Ø shunt reactor adjustable
DCM
+
Fixed Step Assignment
+
POWER FACTOR SETTINGS
Target 1 cos φ
0.8 cap. to 0.8 ind. adjustable
Target 2 cos φ
0.8 cap. to 0.8 ind. adjustable
Dual cos φ Target
+
Four-Quadrant Operation for Generators
+
Self-Learning Steps and Connections
+
ENERGY MEASUREMENT
Three-Phase Energy Measurement
Available
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
L-N Measurement Range
95-272 VAC ±10%
L-L Measurement Range
95-410VAC ±10%
Frequency Measurement Range
45-65 Hz
Power Consumption
<0.1 VA
Sampling Frequency Between 45-65 Hz
25.6 kHz
POWER QUALITY MEASUREMENTS
Harmonics for Current and Voltage Phases
Up to 51st
MEASUREMENT ACCURACY IEC 61557-12
Total Active Power
Class 0.2
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.05
Current
Class 0.2
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
THDv / THDi
Class 1
Total Apparent Power
Class 0.2
Total Active Energy
Class 0.5
MEASUREMENT ACCURACY IEC 62053-22
Total Active Energy
Class 0.2S
MEASUREMENT ACCURACY IEC 62053-23
Total Reactive Energy
Class 2
POWER FACTOR CORRECTION RELAY OUTPUTS
Number of Outputs
8+2 (If alarm relay outputs are used for compensation)
Type
NO (SPST)
Max. Switching Current
2A
Max. Switching Voltage
250VAC
Max. Switching Power
1250VA
Mechanical Service Life
10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
ALARM RELAY OUTPUTS
Number of Outputs
2
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250 VAC
Max. Switching Power
1250 VA
Mechanical Service Life
= 10.0000000 operations
Electrical Service Life (NO Contact)
5×104(5A@250VAC) 1×105(5A@30VDC)
GENERATOR DAY/NIGHT INPUT
Number of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
CABLE CROSS-SECTIONS
Voltage, Current, All Relay Outputs, Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
RS485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
CONTROL OPERATIONS AND FUNCTIONS
Phase Switching Angle
±45 degree adjustable
Average Time
Off, 5 sec, 10 sec, 20 sec, 30 sec, 40 sec, 50 sec, 60 sec adjustable
Step Deactivation Time
1-600 sec. adjustable
Step Discharge Time
3-1000 sec. adjustable
Step Activation Time
1-600 sec. adjustable
TIME-STAMPED DATA STORAGE
Hourly Records
1920 Hours x 68 Different Paramaters
Daily Records
240 Days x 68 Different Paramaters
Monthly Records
36 Months x 68 Different Paramaters
Demand
4 Months x 16 Different Parameters
Alarm Records
50
POWER SUPPLY
Backup Power Input
--
Voltage
La-Lb den 95-410VAC ±10%
Frequency
45-65Hz
Consumption
< 10VA
POWER FACTOR CORRECTION MODES
Rapidus Smart Control Mode
+
Manual
+
Linear
+
Circular
+
Sequential
+
EMC/EMI
EN 61000-6-1
2011
En 61000 6 3%a1ac
2013
Certificates
CE
UKRAYNA
