RAPIDUS 111

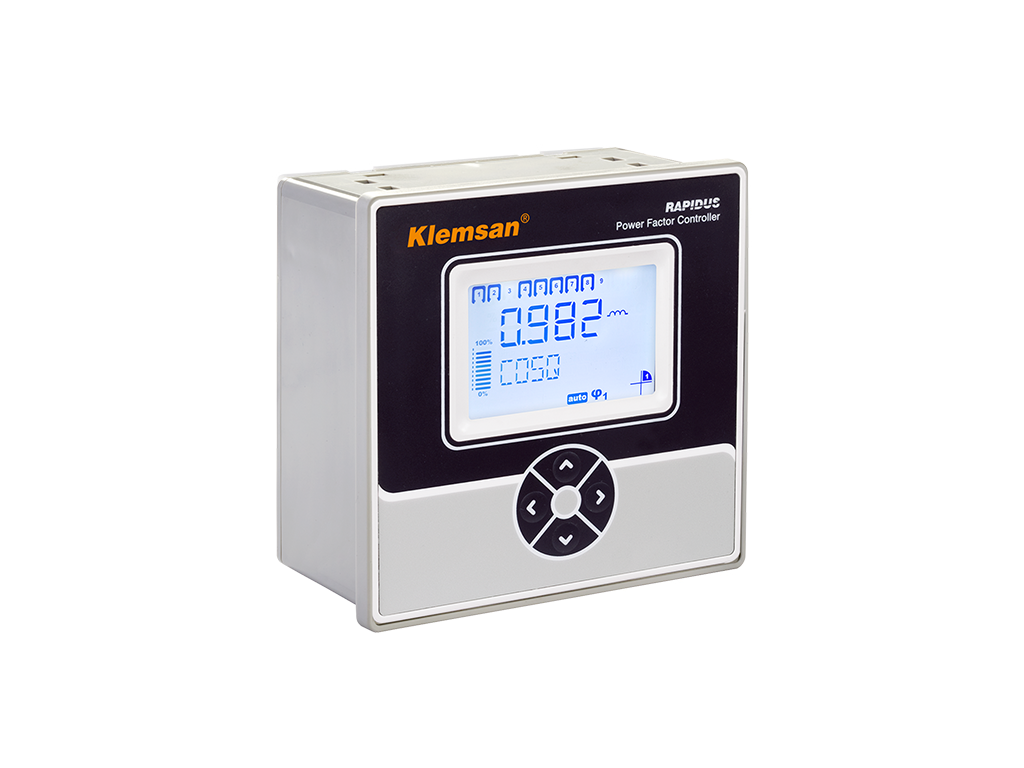

Power Factor Controller
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606072
Packing Unit
1 pcs.
Customs Tariff No.
903289000000
Weight per piece (inc. packing)
0.94 kg.
Product Description
Power Factor Controller
Technical Information
CONNECTION DATA
Connection Type
L-L L-N
general
Measurement System
1Ø
Lcd Screen
+
Language Support
Turkish, English
Password Protection
+
Voltage Transformer Ratio Vtr
1 - 999.9
Current Transformer Ratio Ctr
1 - 5.000
Number Of Measurements In One Period
512
Lcdscreen Refresh Rate
<0.5 sn.
Networks
TT, TN,
compensation-modes
Rapidus Smart Control Mode
+
Manual
+
step-configurations
Manual Definition
+
Predefined
1-1-1-1, 1-2-2-2, 1-2-4-4
Power Kvar
0.00-1000 adjustable
Type
3Ø capacitor, 1Ø capacitor
power-factor-settings
Target 1 Cos
0.8 cap. to 0.8 ind. adjustable
Target 2 Cos
0.8 cap. to 0.8 ind. adjustable
Dual Cos Target
+
4 Quadrant Operation For Generators
+
current-measurement-input
Measuring Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45 65 Hz
25.6 kHz
voltage-measurement-input
Overvoltage Category
300 V Cat III
Measuring Range L N
120...510V AC ±10%
Measuring Range L L
120...510V AC ±10%
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.2 VA
Sampling Frequency Between 45 65 Hz
25.6 kHz
power-quality-measurements
Thd Voltage As
+
Thd Current As
+
measuring-accuracy---iec-61557-12
Total Active Power
Class 0.5
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.1
Current
Class 0.5
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
Thdv Thdi
Class 1
Total Apparent Power
Class 0.5
Total Active Energy
Class 0.5S
measuring-accuracy---iec-62053-22
Total Active Energy
Class 0.5S
measuring-accuracy---iec-62053-23
Total Reactive Energy
Class 2
compensation-relay-outputs
Number Of Outputs
12
Type
NO (SPST)
Max Switching Current
2A
Max Switching Voltage
250VAC
Max Switching Power
1250VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life No Side
5×104(5A@250VAC) 1×105(5A@30VDC)
alarm-relay-outputs
Number Of Outputs
2
Type
NO (SPST)
Max Switching Current
4A
Max Switching Voltage
250 VAC
Max Switching Power
1250 VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life No Side
5×104(5A@250VAC) 1×105(5A@30VDC)
generator--day-night-input
Number Of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
inputs-and-outputs
Digital Outputs
--
Analog Outputs
--
power-supply
Backup Supply Input
--
Voltage
La-Lb den 120...510V AC ±10%
Frequency
45-65Hz
Consumption
< 10VA
mechanical-properties
Protection Class
Front IP40 - Rear IP20
Mounting Type
Panel Mount
Packaging Quantity
1
cable-cross-sections
Voltage Current All Relay Outputs Generator Input
2.5mm² with ferrule - 14AWG
environmental-conditions
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity Non Condensing
Max. 95%
emc-emi
En 61000 6 1
2011
