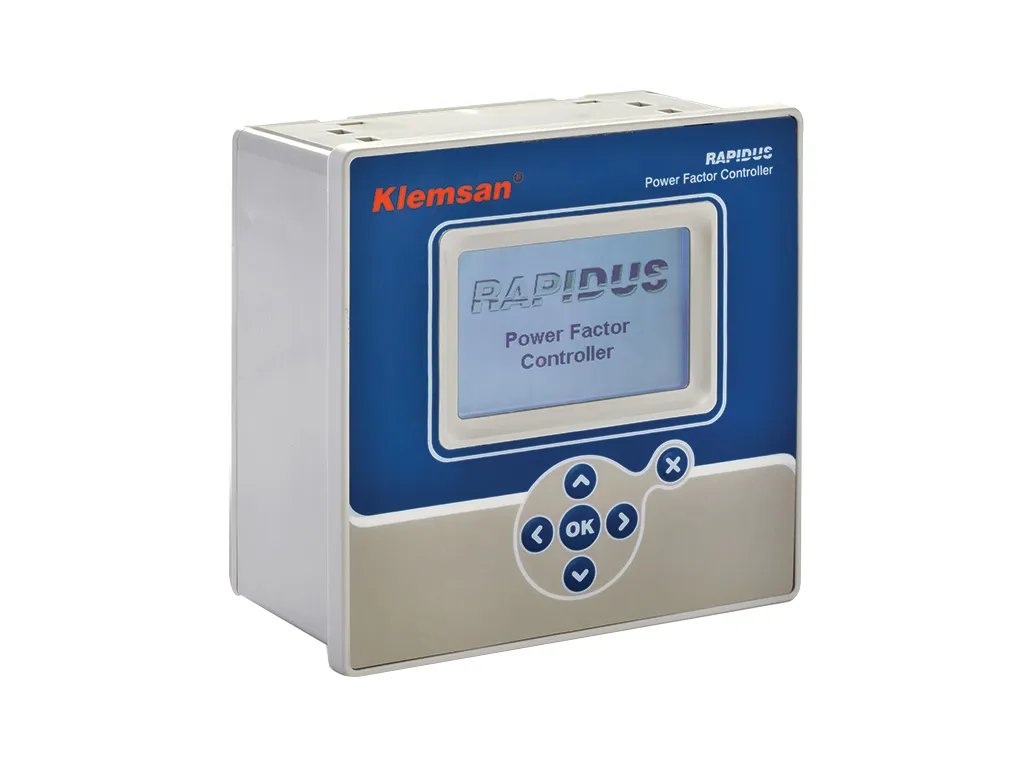

RAPIDUS 211R
Power Factor Controller (1Ø – 12 level)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 1
Packing unit : 1 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
606011
Packing Unit
1 pcs.
Customs Tariff No.
903289000000
Weight per piece (inc. packing)
663g kg.
Product Description
Power Factor Controller (1Ø - 12 level)
Technical Information
CONNECTION DATA
Connection Type
Single phase (L-L or L-N) voltage connection with 1 CT
general
Measurement System
1Ø
Lcd Screen
+
Language Support
Turkish, English, Russian
Password Protection
+
Voltage Transformer Ratio Vtr
1 - 5000
Current Transformer Ratio Ctr
1 - 5.000
Number Of Measurements In One Period
512
Lcdscreen Refresh Rate
1 sn.
Networks
TT, TN, IT
Battery
+
Real Time Clock
+
Four Quadrant Measurement
4
Demand Period
1-60 min. adjustable
Phase Diagram
Available
Minmaxdemand Values
+
compensation-modes
Rapidus Smart Control Mode
+
Manual
+
Linear
+
Circular
+
Sequential
+
step-configurations
Manual Definition
+
Predefined
1-1-1-1, 1-1-2-2, 1-2-2-4, 1-2-3-3, 1-2-4-4, 1-1-2-4, 1-2-3-4, 1-2-4-8, 1-1-2-3
Power Kvar
0.00-1000 adjustable
Type
3Ø capacitor, 3Ø shunt reactor adjustable
Dcm
+
Fixed Step Assignment
+
power-factor-settings
Target 1 Cos
0.8 cap. to 0.8 ind. adjustable
Target 2 Cos
0.8 cap. to 0.8 ind. adjustable
energy-measurement
Multiple Sub Tariffs Peak On Peak And Off Peak
1
3 Phase Energy Measurement
Available
current-measurement-input
Measuring Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45 65 Hz
25.6 kHz
voltage-measurement-input
Overvoltage Category
300 V Cat III
Measuring Range L N
95-272 VAC ±10%
Measuring Range L L
164-471 VAC ±10%
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.1 VA
Sampling Frequency Between 45 65 Hz
25.6 kHz
power-quality-measurements
Thd Voltage As
+
Thd Current As
+
Harmonics For Current And Voltage Phases
Up to 51st
measuring-accuracy---iec-61557-12
Total Active Power
Class 0.2
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.05
Current
Class 0.2
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
Thdv Thdi
Class 1
Total Apparent Power
Class 0.2
Total Active Energy
Class 0.5
measuring-accuracy---iec-62053-22
Total Active Energy
Class 0.2S
measuring-accuracy---iec-62053-23
Total Reactive Energy
Class 2
compensation-relay-outputs
Number Of Outputs
12
Type
NO (SPST)
Max Switching Current
2A
Max Switching Voltage
250VAC
Max Switching Power
1250VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life No Side
5×104(5A@250VAC) 1×105(5A@30VDC)
alarm-relay-outputs
Number Of Outputs
2
Type
NO (SPST)
Max Switching Current
4A
Max Switching Voltage
250 VAC
Max Switching Power
1250 VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life No Side
5×104(5A@250VAC) 1×105(5A@30VDC)
generator--day-night-input
Number Of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
inputs-and-outputs
Digital Outputs
--
Analog Outputs
--
power-supply
Backup Supply Input
--
Voltage
La-Lb den ±10% 95-410VAC
Frequency
45-65Hz
Consumption
< 10VA
mechanical-properties
Weight G
663
Protection Class
Front IP40 / Rear IP20
Mounting Type
Panel Mount
Packaging Quantity
1
cable-cross-sections
Voltage Current All Relay Outputs Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
Rs485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
environmental-conditions
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity Non Condensing
Max. 95%
emc-emi
En 61000 6 1
2011
En 61000 6 3 A1 Ac
2013
communication
Protocol
Modbus RTU
Baud Rate
2400-115200 bps adjustable
Parity
---
Stop Bit
1
Slave Id
1-247
Isolation
2000V RMS
control-process-and-functions
Phase Switching Angle
±45 degree adjustable
Average Time
Off, 5 sec, 10 sec, 20 sec, 30 sec, 40 sec, 50 sec, 60 sec adjustable
Step Deactivation Time
1-600 sec. adjustable
Step Discharge Time
3-1000 sec. adjustable
Step Activation Time
1-600 sec. adjustable
time-recorded-data-storage
Hourly Records
1920 Hours x 68 Different Paramaters
Daily Records
240 Days x 68 Different Paramaters
Monthly Records
36 Months x 68 Different Paramaters
Demand
4 Months x 16 Different Parameters
Alarm Records
50
Certificates
CE
UKRAYNA
Accessories
CONNECTION DATA
Connection Type
Single phase (L-L or L-N) voltage connection with 1 CT
general
Measurement System
1Ø
Lcd Screen
+
Language Support
Turkish, English, Russian
Password Protection
+
Voltage Transformer Ratio Vtr
1 - 5000
Current Transformer Ratio Ctr
1 - 5.000
Number Of Measurements In One Period
512
Lcdscreen Refresh Rate
1 sn.
Networks
TT, TN, IT
Battery
+
Real Time Clock
+
Four Quadrant Measurement
4
Demand Period
1-60 min. adjustable
Phase Diagram
Available
Minmaxdemand Values
+
compensation-modes
Rapidus Smart Control Mode
+
Manual
+
Linear
+
Circular
+
Sequential
+
step-configurations
Manual Definition
+
Predefined
1-1-1-1, 1-1-2-2, 1-2-2-4, 1-2-3-3, 1-2-4-4, 1-1-2-4, 1-2-3-4, 1-2-4-8, 1-1-2-3
Power Kvar
0.00-1000 adjustable
Type
3Ø capacitor, 3Ø shunt reactor adjustable
Dcm
+
Fixed Step Assignment
+
power-factor-settings
Target 1 Cos
0.8 cap. to 0.8 ind. adjustable
Target 2 Cos
0.8 cap. to 0.8 ind. adjustable
energy-measurement
Multiple Sub Tariffs Peak On Peak And Off Peak
1
3 Phase Energy Measurement
Available
current-measurement-input
Measuring Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45 65 Hz
25.6 kHz
voltage-measurement-input
Overvoltage Category
300 V Cat III
Measuring Range L N
95-272 VAC ±10%
Measuring Range L L
164-471 VAC ±10%
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.1 VA
Sampling Frequency Between 45 65 Hz
25.6 kHz
power-quality-measurements
Thd Voltage As
+
Thd Current As
+
Harmonics For Current And Voltage Phases
Up to 51st
measuring-accuracy---iec-61557-12
Total Active Power
Class 0.2
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.05
Current
Class 0.2
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
Thdv Thdi
Class 1
Total Apparent Power
Class 0.2
Total Active Energy
Class 0.5
measuring-accuracy---iec-62053-22
Total Active Energy
Class 0.2S
measuring-accuracy---iec-62053-23
Total Reactive Energy
Class 2
compensation-relay-outputs
Number Of Outputs
12
Type
NO (SPST)
Max Switching Current
2A
Max Switching Voltage
250VAC
Max Switching Power
1250VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life No Side
5×104(5A@250VAC) 1×105(5A@30VDC)
alarm-relay-outputs
Number Of Outputs
2
Type
NO (SPST)
Max Switching Current
4A
Max Switching Voltage
250 VAC
Max Switching Power
1250 VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life No Side
5×104(5A@250VAC) 1×105(5A@30VDC)
generator--day-night-input
Number Of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
inputs-and-outputs
Digital Outputs
--
Analog Outputs
--
power-supply
Backup Supply Input
--
Voltage
La-Lb den ±10% 95-410VAC
Frequency
45-65Hz
Consumption
< 10VA
mechanical-properties
Weight G
663
Protection Class
Front IP40 / Rear IP20
Mounting Type
Panel Mount
Packaging Quantity
1
cable-cross-sections
Voltage Current All Relay Outputs Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
Rs485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
environmental-conditions
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity Non Condensing
Max. 95%
emc-emi
En 61000 6 1
2011
En 61000 6 3 A1 Ac
2013
communication
Protocol
Modbus RTU
Baud Rate
2400-115200 bps adjustable
Parity
---
Stop Bit
1
Slave Id
1-247
Isolation
2000V RMS
control-process-and-functions
Phase Switching Angle
±45 degree adjustable
Average Time
Off, 5 sec, 10 sec, 20 sec, 30 sec, 40 sec, 50 sec, 60 sec adjustable
Step Deactivation Time
1-600 sec. adjustable
Step Discharge Time
3-1000 sec. adjustable
Step Activation Time
1-600 sec. adjustable
time-recorded-data-storage
Hourly Records
1920 Hours x 68 Different Paramaters
Daily Records
240 Days x 68 Different Paramaters
Monthly Records
36 Months x 68 Different Paramaters
Demand
4 Months x 16 Different Parameters
Alarm Records
50
