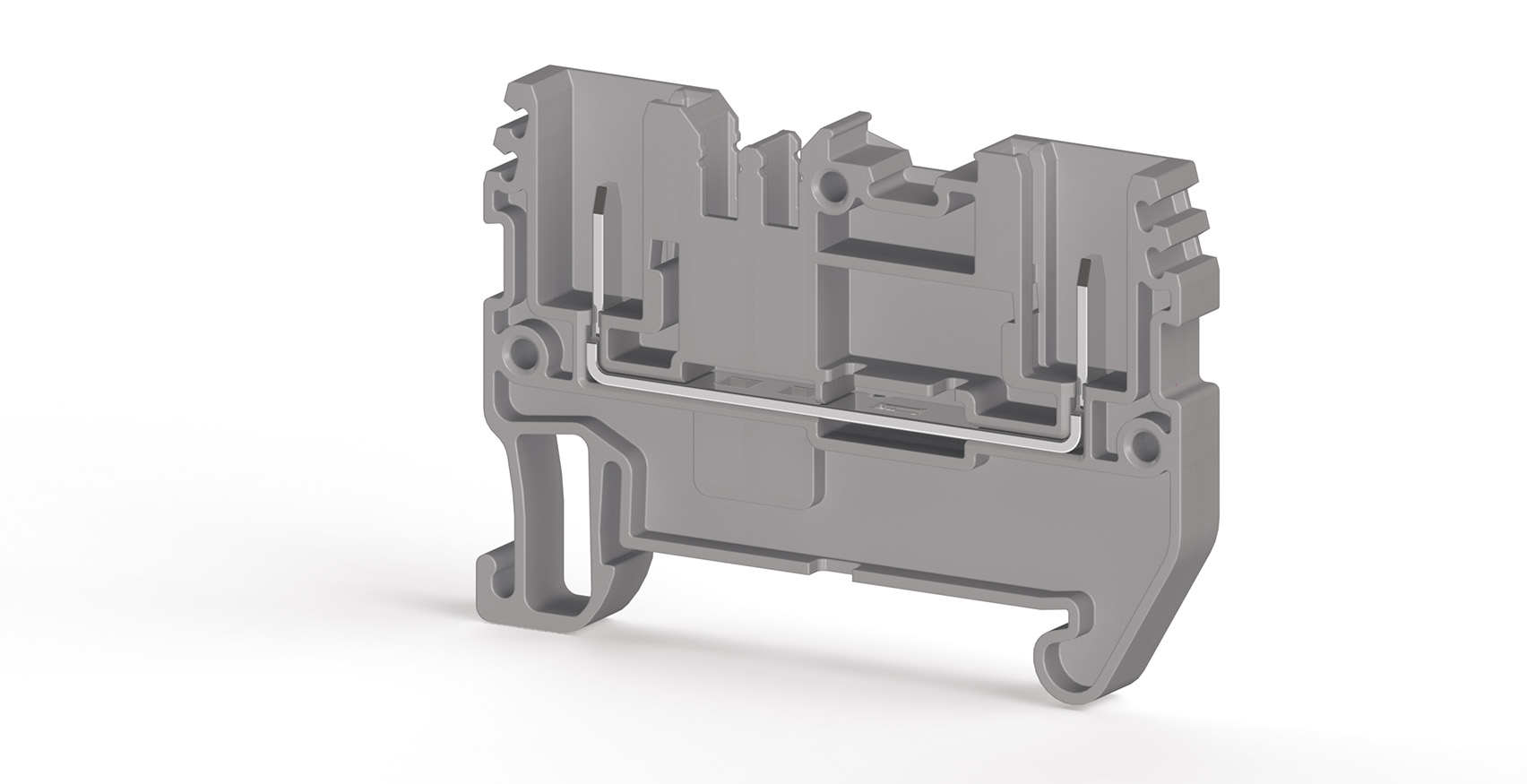

PTP 2,5 Grey
Pin+Pin Type, 2,5 mm² feed-through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
310109
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0056 kg.
Product Description
Pin+Pin Type, 2,5 mm² feed-through terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 61984 / IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL 1 - HL 2 - HL 3
Continuous Operating Temperature Max.
130 °C
Continuous Operating Temperature Min.
-60 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
6 Kv
Nominal Voltage
500 V
Maximum Load Current
24 A
CONNECTION DATA
Connection Type
Snap-On Connection
Min. Solid Conductor Cross-Sectional Area
0,08 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
28 AWG
Conductor Cross-Section AWG/kcmil Max.
12 AWG
Min. Stranded Conductor Cross-Sectional Area
0,14 mm²
Max. Stranded Conductor Cross-Sectional Area
2,5 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,14 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
2,5 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Internal Cylindrical Indicator
A3
DIMENSIONS
Width
5,2 mm
Length
51,60 mm
Height MR 35x7.5
37,30 mm
Height MR 35x15
44,80 mm
Certificates
CSA
cULus
VDE
ATEX
CE
UKCA
ROHS
CSAConductor Cross-section
AWG 28-12
Nominal Current
20 A
Nominal Voltage
300 V
