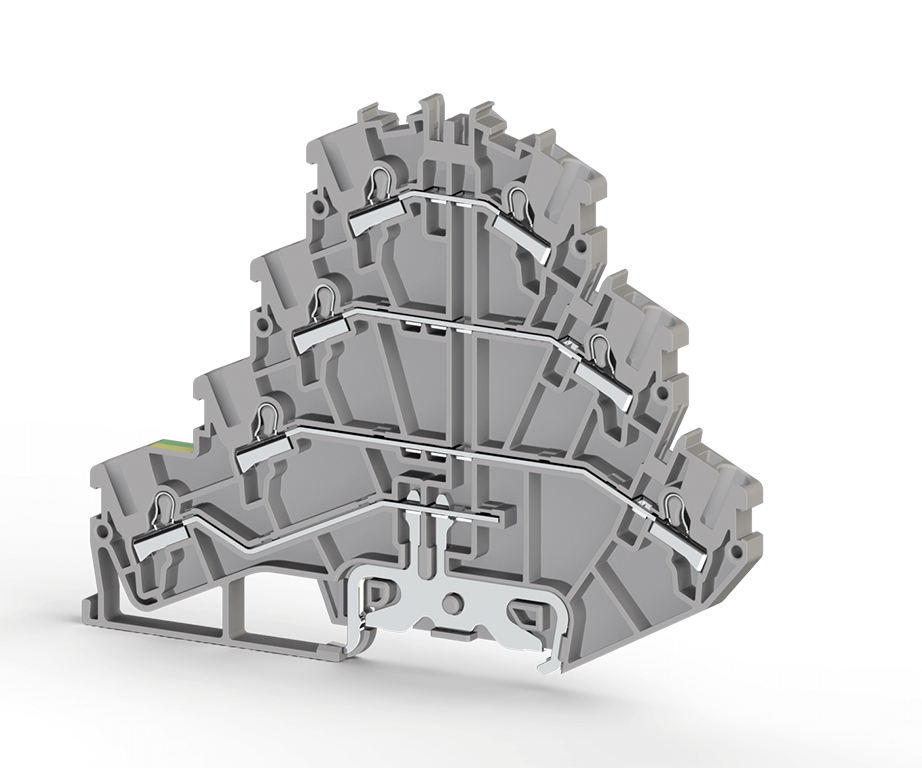

PYK 2,5-3FT Grey
Push-in Type, 2,5 mm² 4 layer terminal block (3 phase and ground) (gray)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 30
Packing unit : 30 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307209
Packing Unit
30 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.03133 kg.
Product Description
Push-in Type, 2,5 mm² 4 layer terminal block (3 phase and ground) (gray)
Technical Information
PRODUCT FEATURES
Number of Connections
7
Color
Grey
Number of Levels
4
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC-60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
24 A
Nominal Voltage
500 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,34 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
22 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,34 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
DIMENSIONS
Width
5 mm
Length
118,6 mm
Height Mr 35x75
93 mm
Height MR 35x15
100,5 mm
Certificates
CSA
cULus
VDE
ATEX
CE
ROHS
UKCA
CSAConductor Cross-section
AWG 22-12
Nominal Current
20 A
Nominal Voltage
300 V
cULusNominal Current
18 A
Nominal Voltage
400 V
