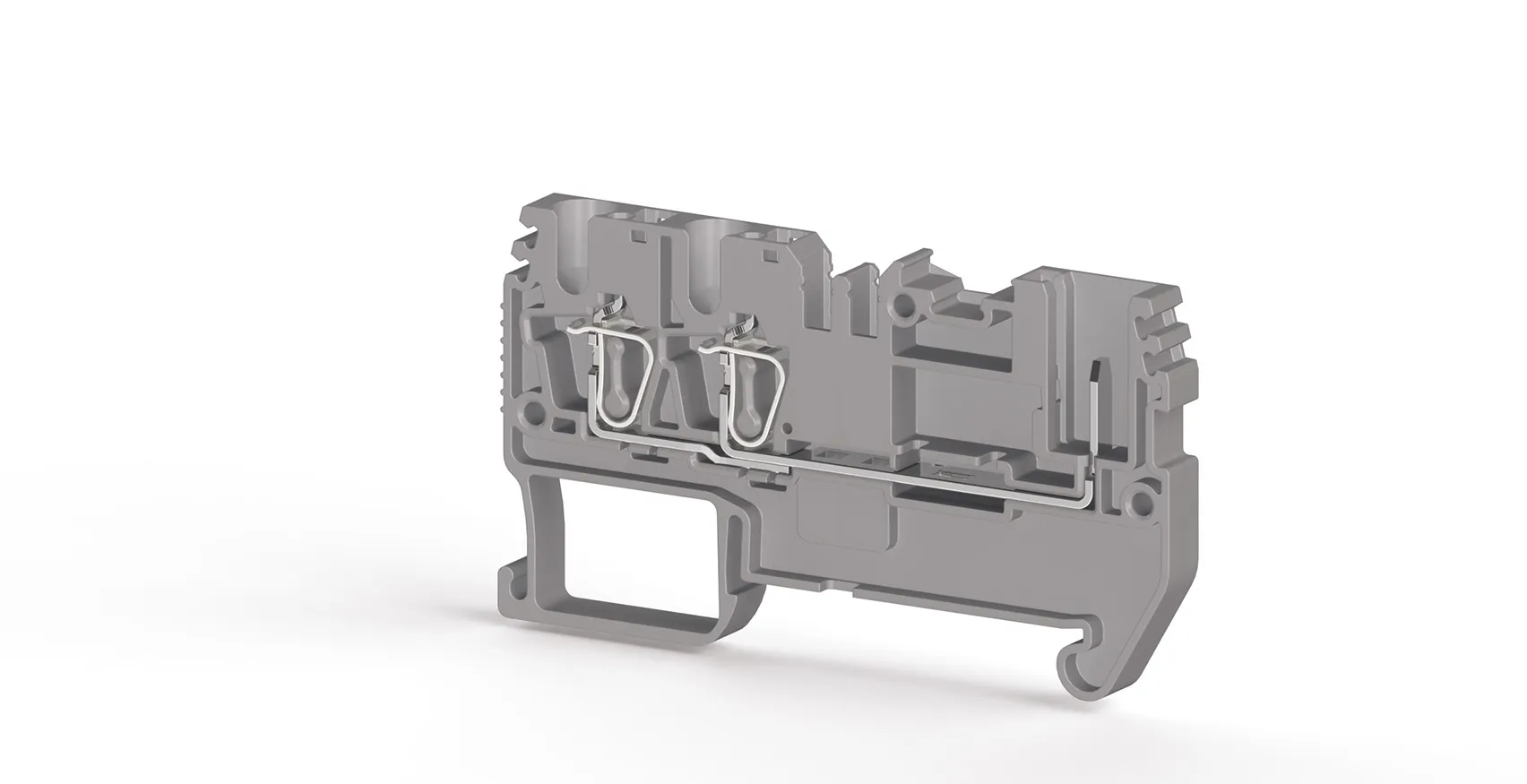

CTP 2,5E Grey
Clamp+Pin Type, 2,5 mm² 1 input-2 output feed-through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
310139
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.008 kg.
Product Description
Clamp+Pin Type, 2,5 mm² 1 input-2 output feed-through terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
3
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V0
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 61984 / IEC 60947-7-1
Fire Protection In Railway Vehicles Din En 45545 2 R22 R23 R24 R26
HL 1 - HL 2 - HL 3
Continuous Operating Temperature max.
130 °C
Continuous Operating Temperature min.
-60 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
24A (2,5 mm icin) A
Nominal Voltage
500 V
Maximum Load Current
24 A
CONNECTION DATA
Connection Type
Spring / Snap-On Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,14 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
DIMENSIONS
Width
5,2 mm
Length
65,00 mm
Height Mr 35x75
37,30 mm
Height MR 35x15
44,80 mm
Certificates
cULus
CE
ROHS
UKCA
cULusConductor Cross-section
AWG 12-28
Nominal Current
20 A
Nominal Voltage
300 V
