PIK 2,5ND_B Grey

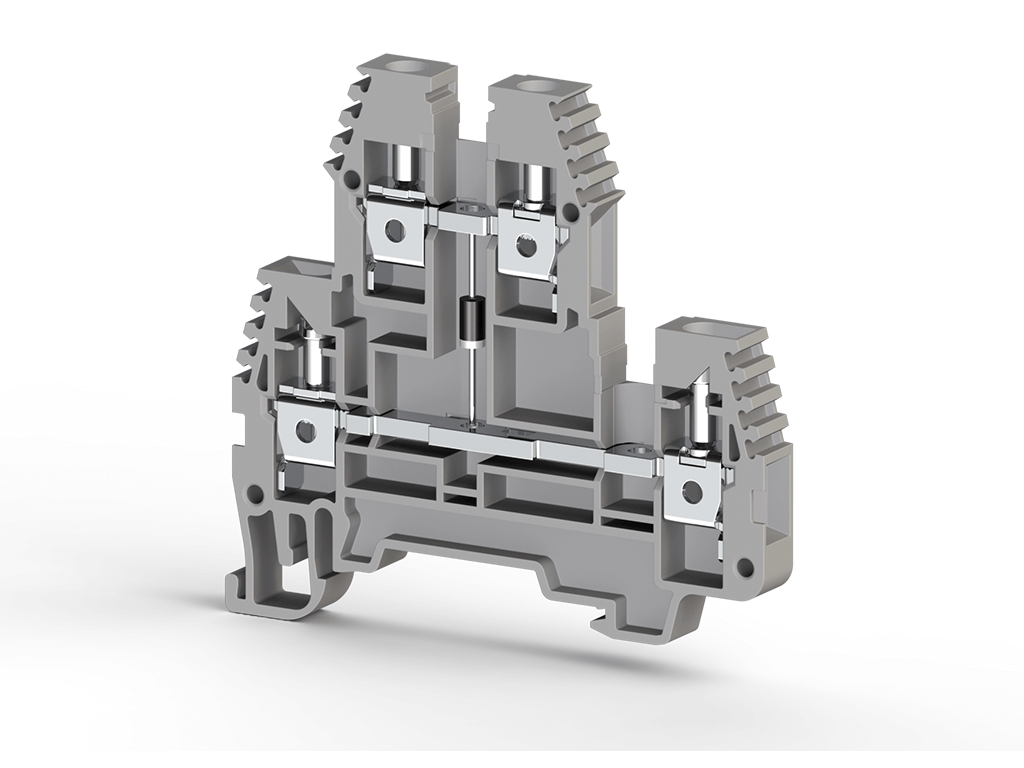

Screw Type, 2,5 mm² 2 layer component terminal block (diode)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
317229
Packing Unit
20 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0186 kg.
Product Description
Screw Type, 2,5 mm² 2 layer component terminal block (diode)
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Note
Max. current is determined by the diode. 1N 4007 diode, reverse voltage
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
0,5 A
Nominal Voltage
500 V
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
1,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
Tightening Torque Min
0,4 Nm
Tightening Torque Max
0,6 Nm
DIMENSIONS
Width
5 mm
Length
64 mm
Height Mr 35x75
61,20 mm
Height MR 35x15
68,70 mm
Certificates
CE
EAC
ROHS
UKRAYNA
UKCA
cULus
ATEX
CEConductor Cross-section
AWG 26-12
Nominal Current
20 A
Nominal Voltage
300 V
EACNominal Current
21,5 A
Nominal Voltage
400V
Accessories
Separation Plate
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Test Sockets
Product Code: 493020
TF (Ø 2)
Product Code: 493023
TF (Ø 2,3)
Product Code: 490010
TSK 1 (Ø2)
Product Code: 490030
TSK 3 (Ø2,3)
Screw Type Cross Connector
Cover
Product Code: 449019
NPP/PIK 2,5N-4N Grey
PRODUCT FEATURES
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
Note
Max. current is determined by the diode. 1N 4007 diode, reverse voltage
ELECTRICAL FEATURES
Nominal Impulse Voltage
6 Kv
Nominal Current
0,5 A
Nominal Voltage
500 V
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
1,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
Tightening Torque Min
0,4 Nm
Tightening Torque Max
0,6 Nm
DIMENSIONS
Width
5 mm
Length
64 mm
Height Mr 35x75
61,20 mm
Height MR 35x15
68,70 mm
CE
EAC
ROHS
UKRAYNA
UKCA
cULus
ATEX
CEConductor Cross-section
AWG 26-12
Nominal Current
20 A
Nominal Voltage
300 V
EACNominal Current
21,5 A
Nominal Voltage
400V
