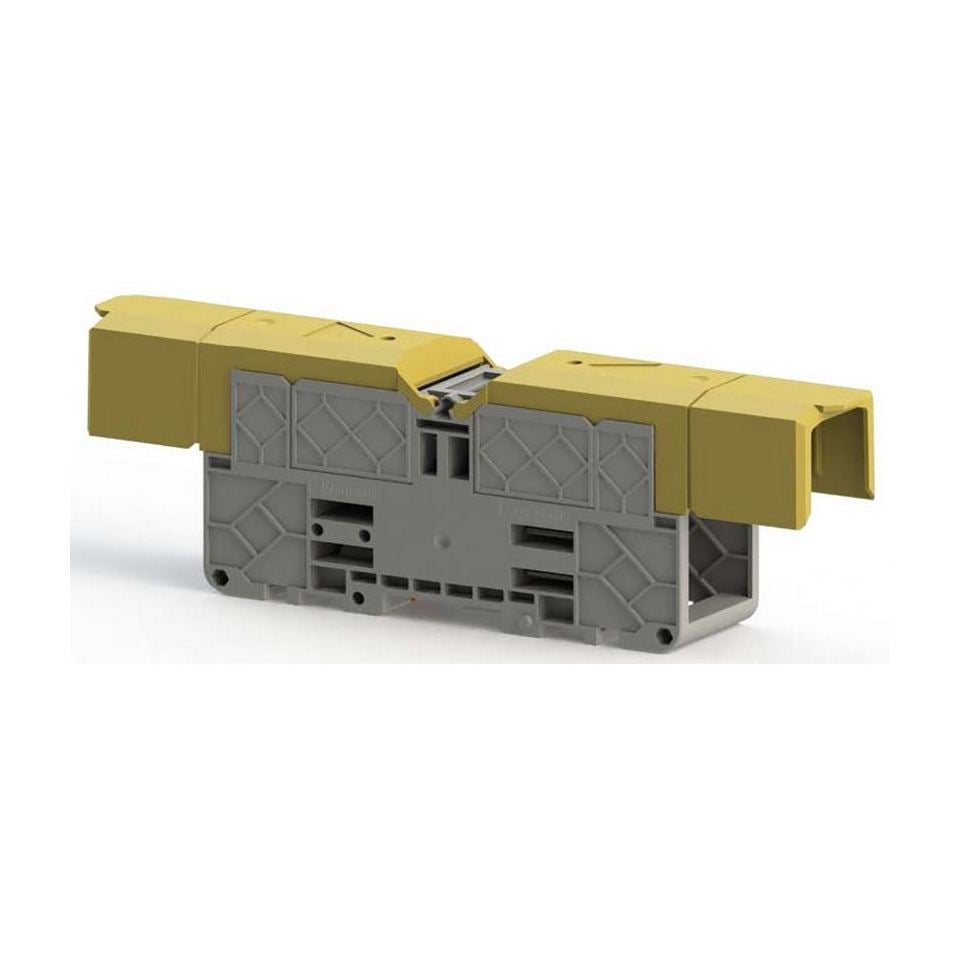

PAK 95-150 KK Grey
150mm² Bolt-Type Feed-Through Terminal Block with Protection Cover
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 5
Packing unit : 5 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
313099
Packing Unit
5 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.312 kg.
Product Description
150mm² Bolt-Type Feed-Through Terminal Block with Protection Cover
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Bil.Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
Vo
Impulse Voltage Category
3
Insulation Material Group
1
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Fire Protection in Railway Vehicles (DIN EN 45545-2 R22/R23/R24/R26)
HL 1 - HL 2 - HL 3
Continuous Operating Temperature Max.
130 °C
Continuous Operating Temperature Min.
-60 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv Kv
Nominal Current
309 A
Nominal Voltage
1000 V
CONNECTION DATA
Connection Type
Bolt Connection
Tightening Torque Min.
10 Nm
Tightening Torque Max.
20 Nm
Min. Hole Diameter
10,5 mm
Min. DIN 46234 Cable Lug
6 mm²
DIN 46234 Cable Lug (Max.)
150 mm²
Min. DIN 46235 Cable Lug
16 mm²
DIN 46235 Cable Lug (Max.)
150 mm²
Min. DIN 46234 Cable Lug
10 AWG
DIN 46234 Cable Lug (Max.)
300 kcmil
Min. DIN 46235 Cable Lug
6 AWG
DIN 46235 Cable Lug (Max.)
300 kcmil
DIMENSIONS
Width
41,00 mm
Length
226,00 mm
Height MR 35x7.5
78,50 mm
Height MR 35x15
86,00 mm
Certificates
CE
ROHS
UKCA
cULus
CEConductor Cross-section
AWG 8-600
Nominal Current
420 A
Nominal Voltage
1000 V
