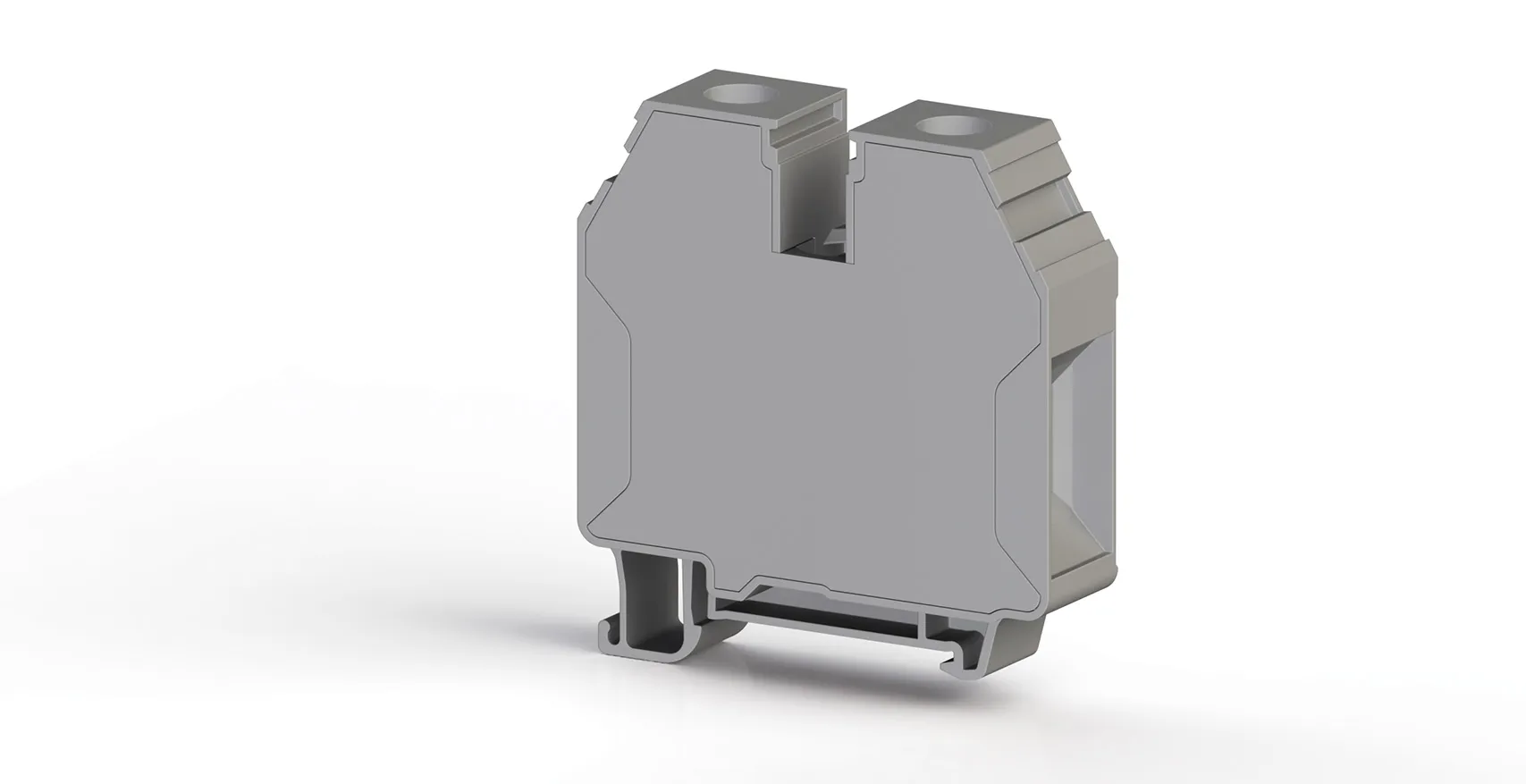

AVK 35 IRDS Grey
Screw Type, 35 mm² feed-through terminal block with imbus type (gray)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
304590
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.06968 kg.
Product Description
Screw Type, 35 mm² feed-through terminal block with imbus type (gray)
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
125 A
Nominal Voltage
1000 V
Maximum Load Current
125 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
6 mm²
Single-core max. conductor cross-section
50 mm²
Conductor Cross Section Awgkcmil Min
10 AWG
Conductor Cross Section Awgkcmil Max
2 AWG
Multi-core min. conductor cross-section
6 mm²
Multi-core max. conductor cross-section
35 mm²
Multi-core min. conductor cross-section with ferrule
6 mm²
Multi-core max. conductor cross-section with ferrule
35 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
16 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
Internal cylindrical indicator
B9
Tightening Torque Min
4 Nm
Tightening Torque Max
6 Nm
DIMENSIONS
Width
16 mm
Length
62 mm
Height Mr 35x75
68 mm
Height MR 35x15
75,50 mm
Certificates
cULus
CE
ROHS
EAC
UKRAYNA
cULusConductor Cross-section
AWG 10 - 2
Nominal Current
115A
Nominal Voltage
600
Accessories
Separation Plate
Product Code: 498130
IP 2S Printed
Product Code: 498140
IP 2
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Test Sockets
Product Code: 493050
TF (Ø 4)
Product Code: 490090
TSK 9 (Ø4)
Screw Type Cross Connector
Product Code: 480212
UK 35/2 RDS
Product Code: 480213
UK 35/3 RDS
Product Code: 480214
UK 35/4 RDS
Product Code: 480219
UK 35/10 RDS
