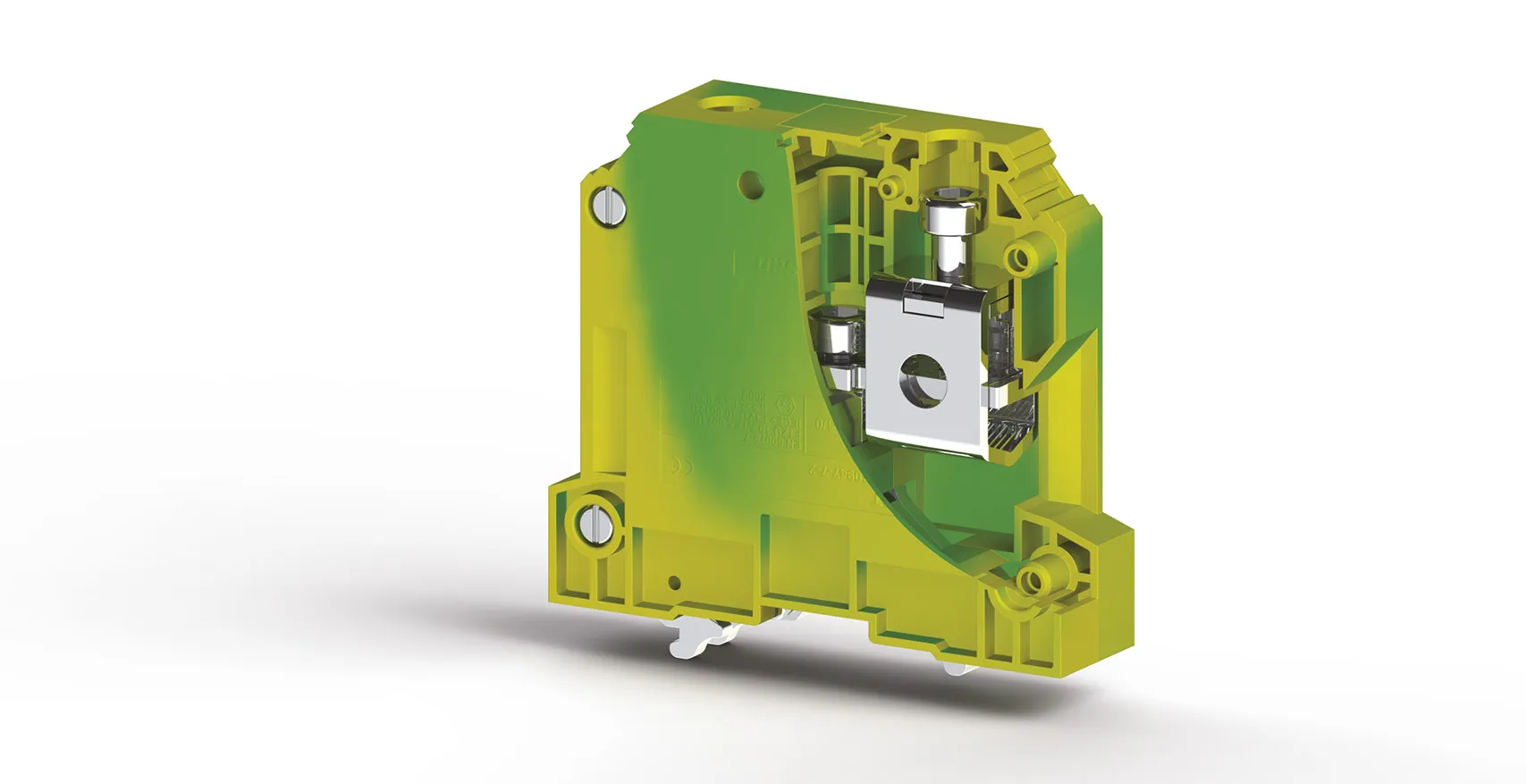

AVK 50 T Yellow-Green
Screw Type, 50 mm² grounding terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 10
Packing unit : 10 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
334190
Packing Unit
10 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.166 kg.
Product Description
Screw Type, 50 mm² grounding terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Yellow/Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
Note
DIN raylarinin akim tasima kapasitesine dikkat edilmeli. / Observe the current carrying capacity of the DIN rails.
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
161,5 mm²
Max. Solid Conductor Cross-Sectional Area
70 mm²
Conductor Cross-Section AWG/kcmil Min.
10 AWG
Conductor Cross-Section AWG/kcmil Max.
1/0 AWG
Min. Stranded Conductor Cross-Sectional Area
25 mm²
Max. Stranded Conductor Cross-Sectional Area
50 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
50 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
10 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
16 mm²
Min. Stripping Length
22 mm
Max. Stripping Length
24 mm
Internal Cylindrical Indicator
B10
Tightening Torque Min.
6 Nm
Tightening Torque Max.
310 Nm
Min. DIN Rail Tightening Torque
3 Nm
Rail Tightening Torque (Max.)
6 Nm
DIMENSIONS
Width
20 mm
Length
80 mm
Height MR 35x7.5
77,40 mm
Height MR 35x15
84,90 mm
Height MR 32
82 mm
Certificates
cULus
CE
ATEX
EAC
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 6-1/0
Nominal Voltage
800 V
