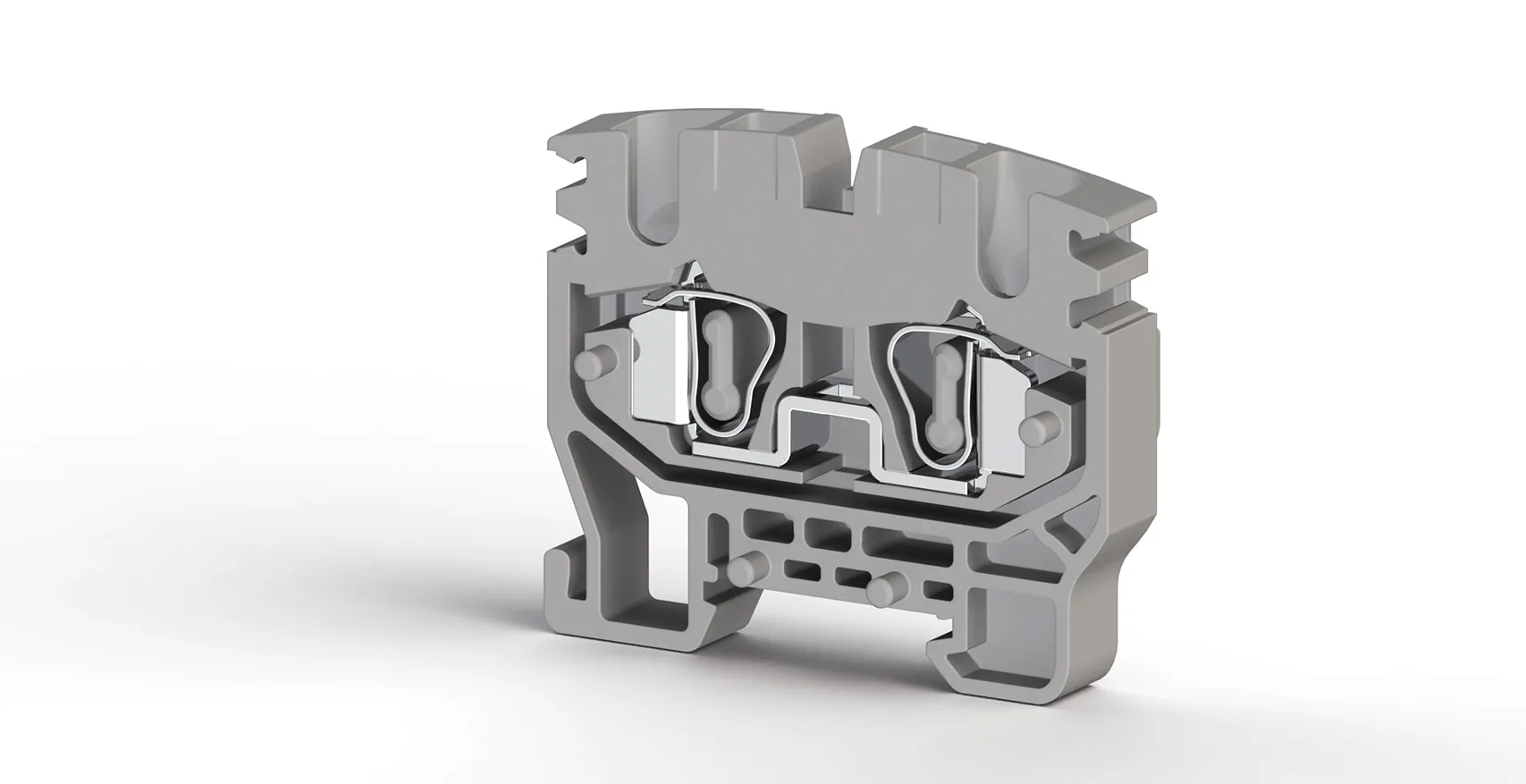

MYK 2,5 Grey
2.5mm² Cage Clamp 2-Pole Mini Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
306429
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.00476 kg.
Product Description
2.5mm² Cage Clamp 2-Pole Mini Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
24 A
Nominal Voltage
800 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,08 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
B3
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve
0,5 mm²
DIMENSIONS
Width
5 mm
Length
33,55 mm
Height Mr 15x55
29,60 mm
Certificates
CE
ROHS
UKRAYNA
UKCA
UL
ATEX
CEConductor Cross-section
AWG 22-12
Nominal Current
20 A
Nominal Voltage
600 V
ROHSNominal Current
18 A
Nominal Voltage
500 V
Accessories
Zinc Coated
Product Code: 500610
MR 15x5.5 Straight (1m) Zinc Coated Rail
Product Code: 500611
MR 15x5.5 Slotted (1m) Zinc Coated Rail
Product Code: 500612
MR 15x5.5 Straight (2m) Zinc Coated Rail
Product Code: 500613
MR 15x5.5 Slotted (2m) Zinc Coated Rail
Screwdrivers
Product Code: 561140
KT-D 2 (0,5 x Ø3,0)
Terminal Thermal Printer Labels
Product Code: 810300
D-NS 5x6
Terminal Blocks
Product Code: 505330
DG 6/5
Cover
Product Code: 446429
NPP/MYK 1 Grey
Product Code: 446439
NPP/MYK 2 Grey
