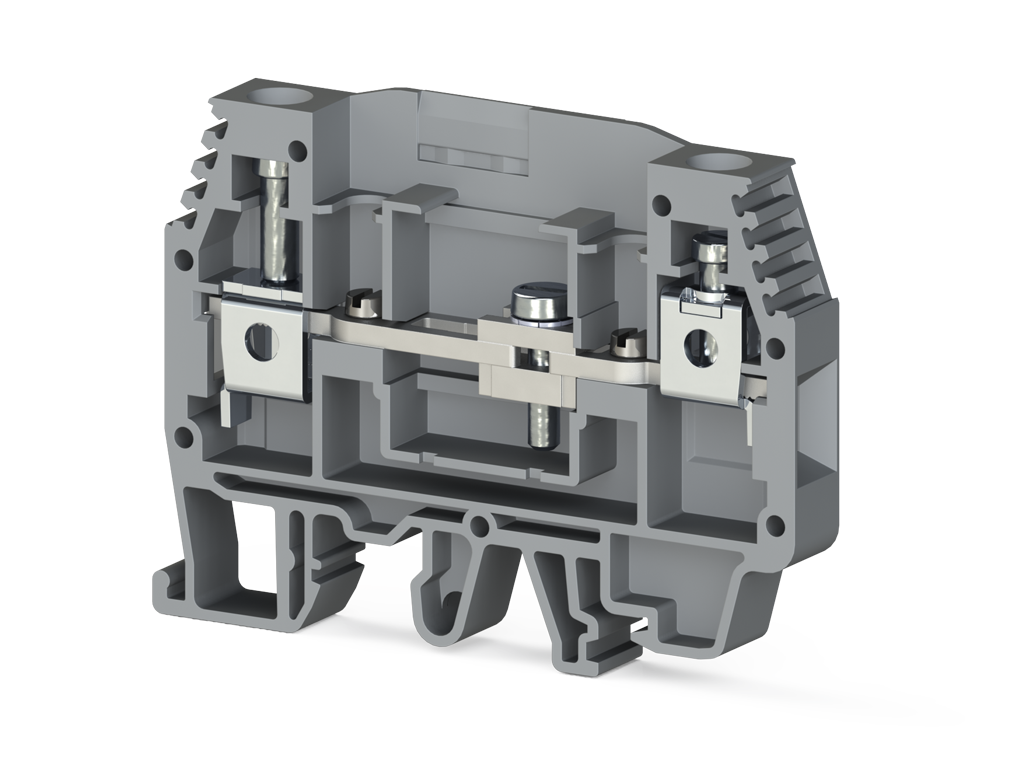

WGO 1 Grey Without socket
6mm² Screw Type Test and Disconnect Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 60
Packing unit : 60 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
370590
Packing Unit
60 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.024 kg.
Product Description
6mm² Screw Type Test and Disconnect Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
41 A
Nominal Voltage
400 V
Maximum Load Current
57 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
10 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
6 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
4 mm²
Min. Stripping Length
10 mm
Max. Stripping Length
12 mm
Internal cylindrical indicator
B5
Tightening Torque Min
0,8 Nm
Tightening Torque Max
1,2 Nm
DIMENSIONS
Width
8 mm
Length
66,25 mm
Height Mr 35x75
50,85 mm
Height MR 35x15
58,35 mm
Height Mr 32
55,45 mm
Certificates
CE
EAC
ROHS
UKRAYNA
UKCA
TSE
cULus
ATEX
CEConductor Cross-section
AWG 20-8
Nominal Current
50 A
Nominal Voltage
300 V
EACNominal Current
41 A
Nominal Voltage
250 V
