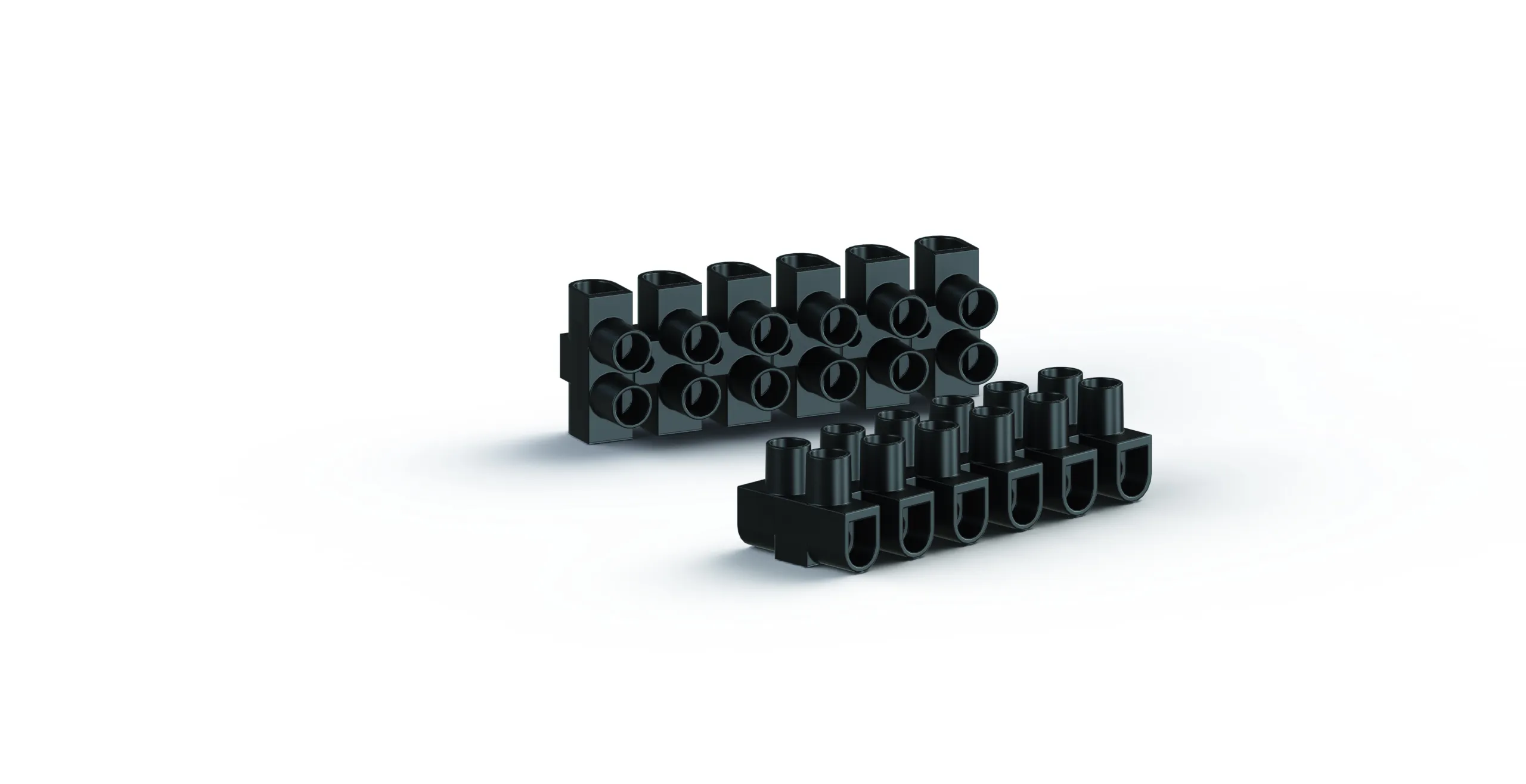

SK 1 Black
2.5mm² Screw Type Terminal Strips
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
430002
Packing Unit
50
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.01962 kg.
Product Description
2.5mm² Screw Type Terminal Strips
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
24
Color
Black
Number of Levels
1
Insulation Material
PP
Connection According to Standard
EN 60998-2-1
Continuous Operating Temperature Max.
80 °C
ELECTRICAL SPECIFICATIONS
Nominal Current
24 A
Nominal Voltage
450 V
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,75 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
22 AWG
Conductor Cross-Section AWG/kcmil Max.
12 AWG
Min. Stranded Conductor Cross-Sectional Area
0,5 mm²
Max. Stranded Conductor Cross-Sectional Area
2,5 mm²
Min. Stripping Length
5 mm
Max. Stripping Length
6 mm
DIMENSIONS
Width
16,60 mm
Length
94,90 mm
Yükseklik
13,00 mm
Pitch
8,10 mm
Certificates
UL
VDE
CE
UKCA
EAC
ULConductor Cross-section
AWG 22-12
Nominal Current
20 A
Nominal Voltage
300 V
VDEConductor Cross-section
2,5 mm²
Nominal Current
24 A
Nominal Voltage
450 V
