SK 3 (Beyaz)

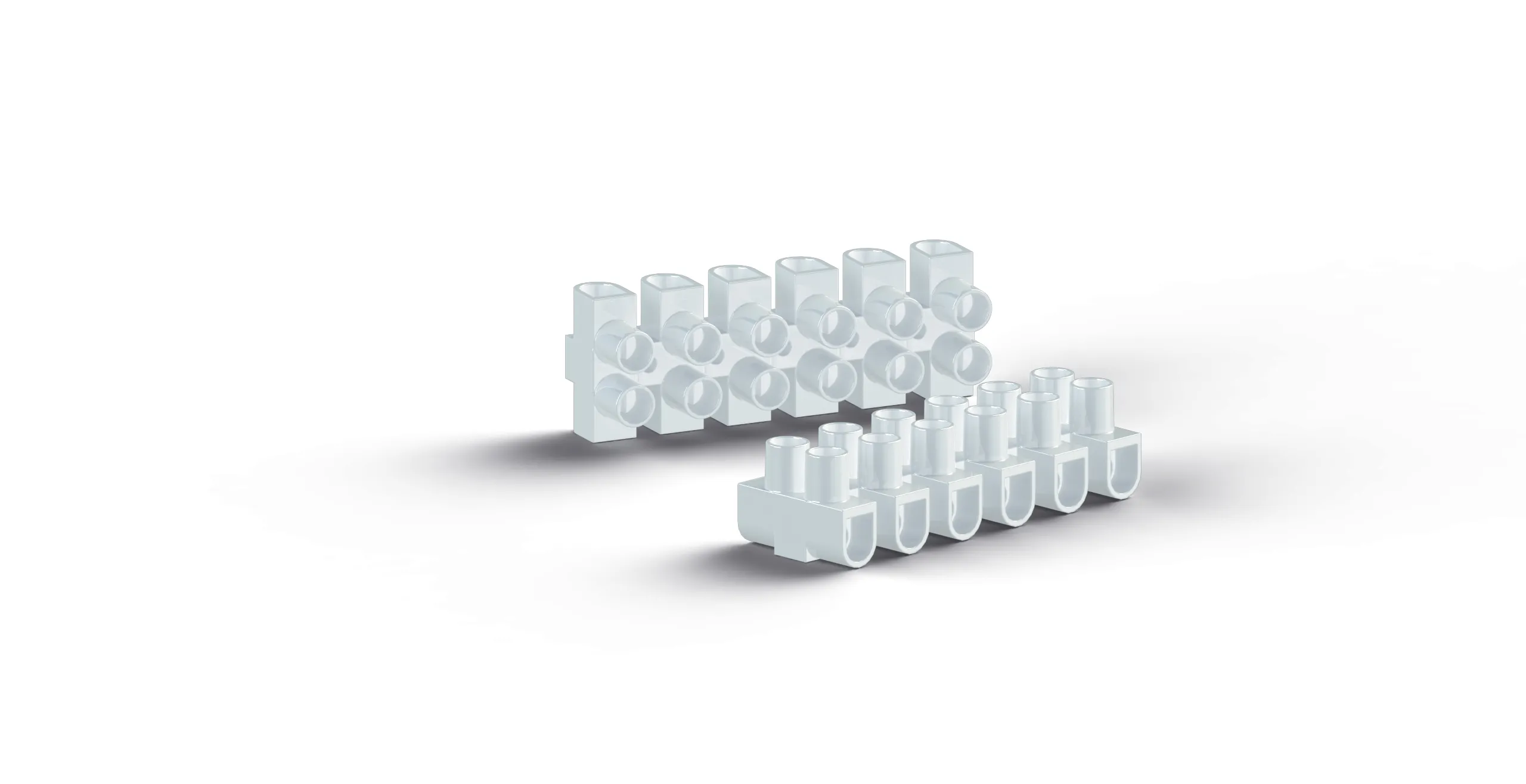

6mm² Screw Type Terminal Strips
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
431022
Packing Unit
50
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0508 kg.
Product Description
6mm² Screw Type Terminal Strips
Technical Information
PRODUCT FEATURES
Number of Connections
24
Color
White
Number of Levels
1
Insulation Material
PP
Connection According to Standard
EN 60998-2-1
Continuous Operating Temperature max.
80 °C
ELECTRICAL FEATURES
Nominal Voltage
450 V
Nominal Current In Fuse
41 A
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
1,50 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
14 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
Multi-core min. conductor cross-section
1,5 mm²
Multi-core max. conductor cross-section
6 mm²
Min. Stripping Length
7,5 mm
Max. Stripping Length
8,5 mm
DIMENSIONS
Width
23,40 mm
Length
133,80 mm
Height
17,30 mm
Pitch
11,50 mm
Certificates
UL
VDE
CE
UKCA
EAC
ULConductor Cross-section
AWG 14-8
Nominal Current
50 A
Nominal Voltage
300 V
VDEConductor Cross-section
6 mm²
Nominal Current
41 A
Nominal Voltage
450 V
