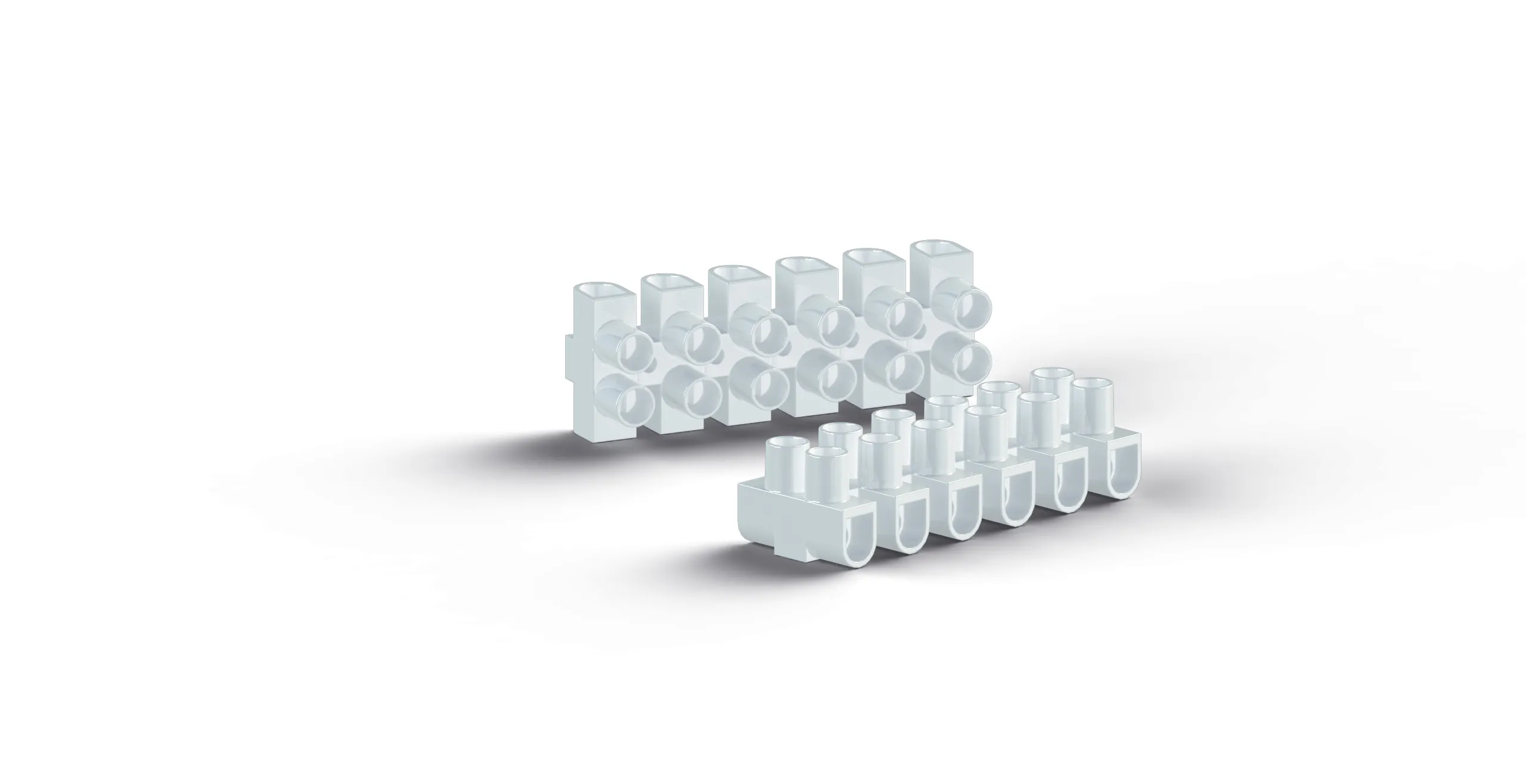

SK 1 White
2.5mm² Screw Type Terminal Strips
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
431002
Packing Unit
50
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.01962 kg.
Product Description
2.5mm² Screw Type Terminal Strips
Technical Information
PRODUCT FEATURES
Number of Connections
24
Color
White
Number of Levels
1
Insulation Material
PP
Connection According to Standard
EN 60998-2-1
Continuous Operating Temperature max.
80 °C
ELECTRICAL FEATURES
Nominal Current
24 A
Nominal Voltage
450 V
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,75 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
22 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
2,5 mm²
Min. Stripping Length
5 mm
Max. Stripping Length
6 mm
DIMENSIONS
Width
16,60 mm
Length
94,90 mm
Height
13,00 mm
Pitch
8,10 mm
Certificates
UL
VDE
CE
UKCA
EAC
ULConductor Cross-section
AWG 22-12
Nominal Current
20 A
Nominal Voltage
300 V
VDEConductor Cross-section
2,5 mm²
Nominal Current
24 A
Nominal Voltage
450 V
Accessories
Screwdrivers
Product Code: 561140
KT-D 2 (0,5 x Ø3,0)
