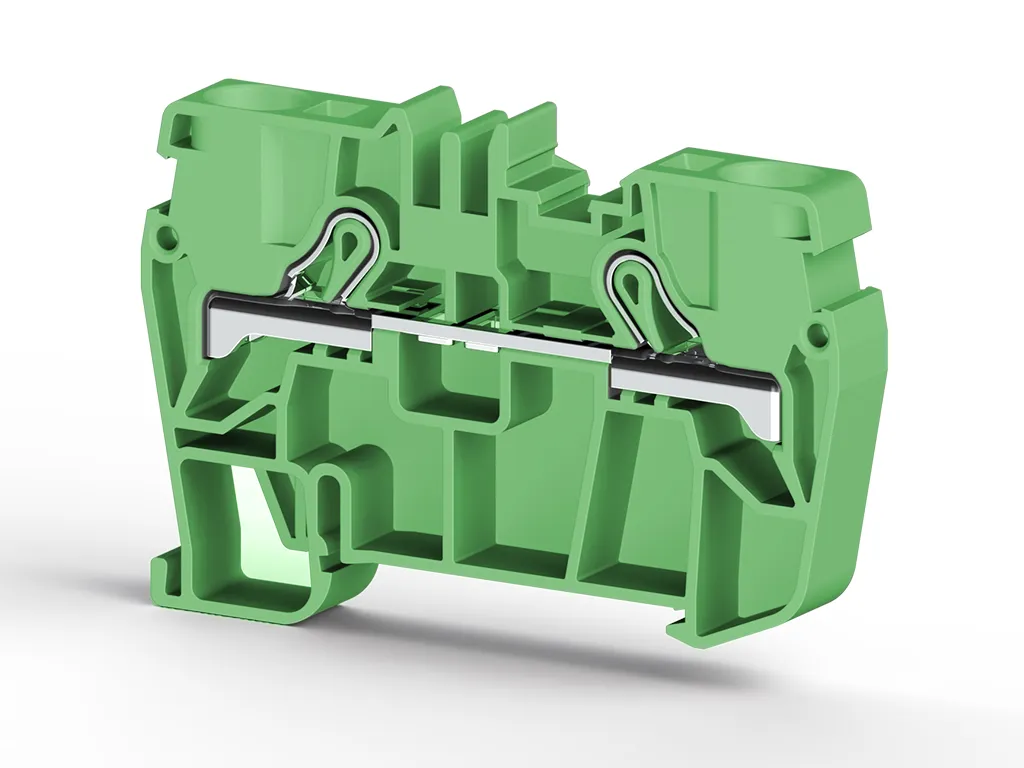

PYK 6 Green
6 mm² Push-In Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 60
Packing unit : 60 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307122
Packing Unit
60 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.019 kg.
Product Description
6 mm² Push-In Feed-Through Terminal Block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
41 A
Nominal Voltage
800 V
Maximum Load Current
57 A
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
6 mm²
Min. Stripping Length
11 mm
Max. Stripping Length
13 mm
Internal cylindrical indicator
A5
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve
1,5 mm²
DIMENSIONS
Width
8 mm
Length
65,6 mm
Height Mr 35x75
46,2 mm
Height MR 35x15
53,7 mm
Certificates
CE
EAC
DNV
ROHS
UKRAYNA
UKCA
cULus
ATEX
CEConductor Cross-section
AWG 20-8
Nominal Current
35 A
Nominal Voltage
600 V
EACNominal Current
36 A
Nominal Voltage
800 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561150
KT-D 3 (0,6 x Ø3,5)
Terminal Thermal Printer Labels
Product Code: 812750
D-NS 8x10
Cover
Product Code: 446469
NPP/PYK 6 Grey
Product Code: 446462
NPP/PYK 6 Green
Separation Plate
Product Code: 463190
APP/PYK 6 Grey
Plug-In Cross Connector
Test Sockets
Product Code: 498559
PYK TEST Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
