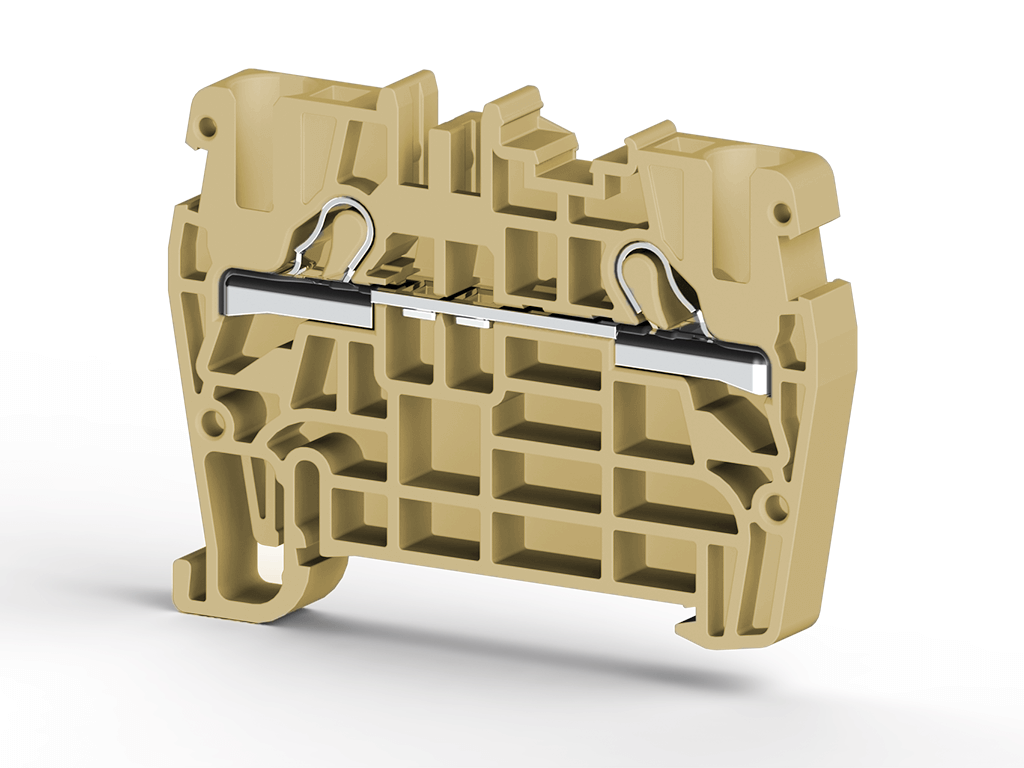

PYK 4 Beige
Push-in Type, 4 mm² feed-through terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
307110RP
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.00945 kg.
Product Description
Push-in Type, 4 mm² feed-through terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
2
Color
Beige
Number of Levels
1
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
32 A
Nominal Voltage
800 V
Maximum Load Current
41 A
CONNECTION DATA
Connection Type
Push-In Connection
Min. Solid Conductor Cross-Sectional Area
0,34 mm²
Max. Solid Conductor Cross-Sectional Area
6 mm²
Conductor Cross-Section AWG/kcmil Min.
22 AWG
Conductor Cross-Section AWG/kcmil Max.
10 AWG
Min. Stranded Conductor Cross-Sectional Area
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area
4 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,34 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
4 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
1 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A4
DIMENSIONS
Width
6 mm
Length
55,9 mm
Height MR 35x7.5
44 mm
Height MR 35x15
51,5 mm
Certificates
cULus
VDE
ATEX
CE
EAC
ROHS
UKCA
cULusConductor Cross-section
AWG 22-10
Nominal Current
30 A
Nominal Voltage
600 V
VDEConductor Cross-section
4 mm²
Nominal Current
32 A
Nominal Voltage
800 V
ATEXNominal Current
32 A
Nominal Voltage
800 V
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Terminal Thermal Printer Labels
Product Code: 812250
D-NS 6x10
Cover
Product Code: 446450
NPP/PYK 4 Beige
Product Code: 446459
NPP/PYK 4 Grey
Product Code: 498659
PYK TEST-A Grey
Plug-In Cross Connector
Test Sockets
Product Code: 498559
PYK TEST Grey
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
