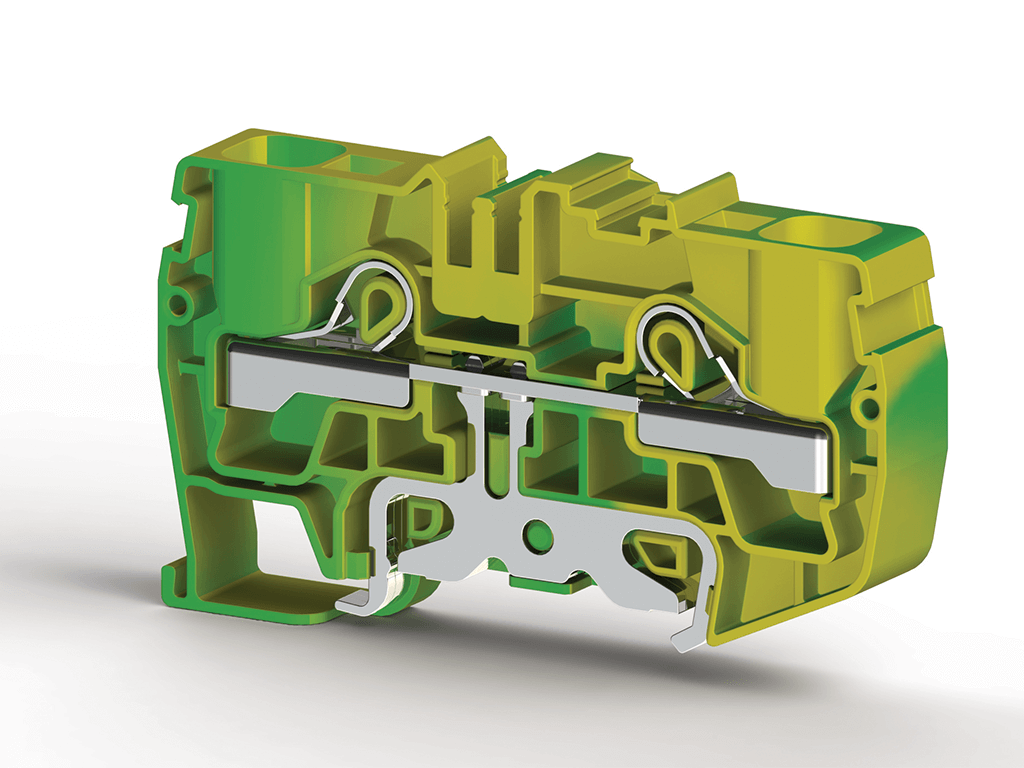

PYK 16
Push-in Type, 16 mm² grounding terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 30
Packing unit : 30 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
336640
Packing Unit
30 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.04266 kg.
Product Description
Push-in Type, 16 mm² grounding terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
2
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
16 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
6 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
16 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
16 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
4 mm²
Min. Stripping Length
16 mm
Max. Stripping Length
18 mm
DIMENSIONS
Width
12 mm
Length
81,45 mm
Height Mr 35x75
49,50 mm
Height MR 35x15
57,00 mm
Certificates
CSA
VDE
ATEX
CE
EAC
ROHS
UKCA
cULus
CSAConductor Cross-section
AWG 20 - 4
Accessories
End Stop
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Cover
Product Code: 450419
NPP/PYK 16 Grey
Plug-In Cross Connector
Terminal Strip Labels
Product Code: 1020100
SLF-P1 W 11,2mm x 15m
