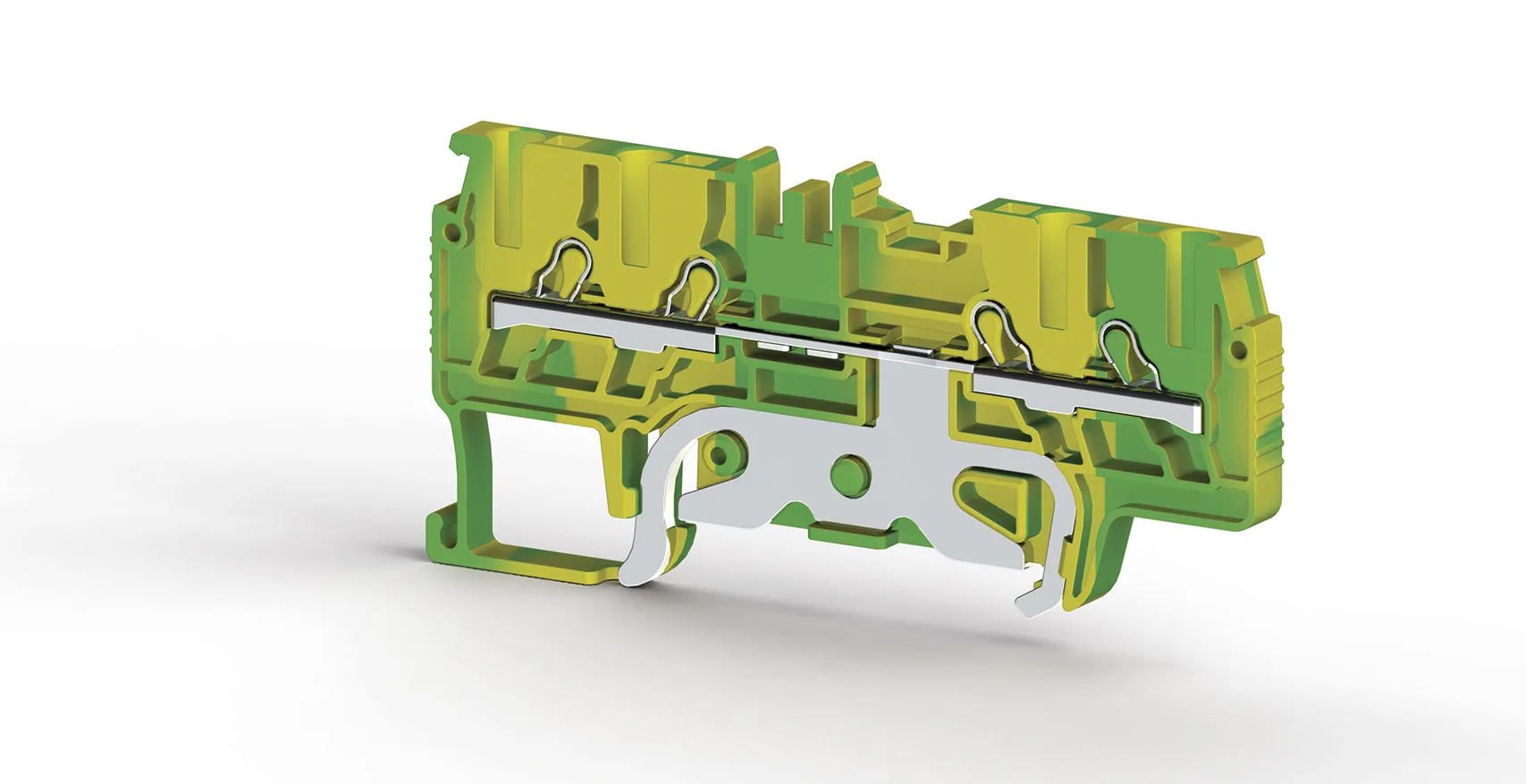

PYK 1,5MCT
Push-in Type, 1,5 mm² 2 input-2 output mini grounding terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 70
Packing unit : 70 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
336450
Packing Unit
70 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.010587 kg.
Product Description
Push-in Type, 1,5 mm² 2 input-2 output mini grounding terminal block
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Yellow/Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Protective Conductor Type
PE
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
Nominal Current
A
Nominal Voltage
V
Maximum Load Current
A
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,34 mm²
Single-core max. conductor cross-section
2,5 mm²
Conductor Cross Section Awgkcmil Min
22 AWG
Conductor Cross Section Awgkcmil Max
14 AWG
Multi-core min. conductor cross-section
0,34 mm²
Multi-core max. conductor cross-section
1,5 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
1,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
0,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A1-B1
DIMENSIONS
Width
4,2 mm
Length
75,10 mm
Height Mr 35x75
37,8 mm
Height Mr 15x55
45,3 mm
Certificates
EAC
DNV
ROHS
UKCA
CE
