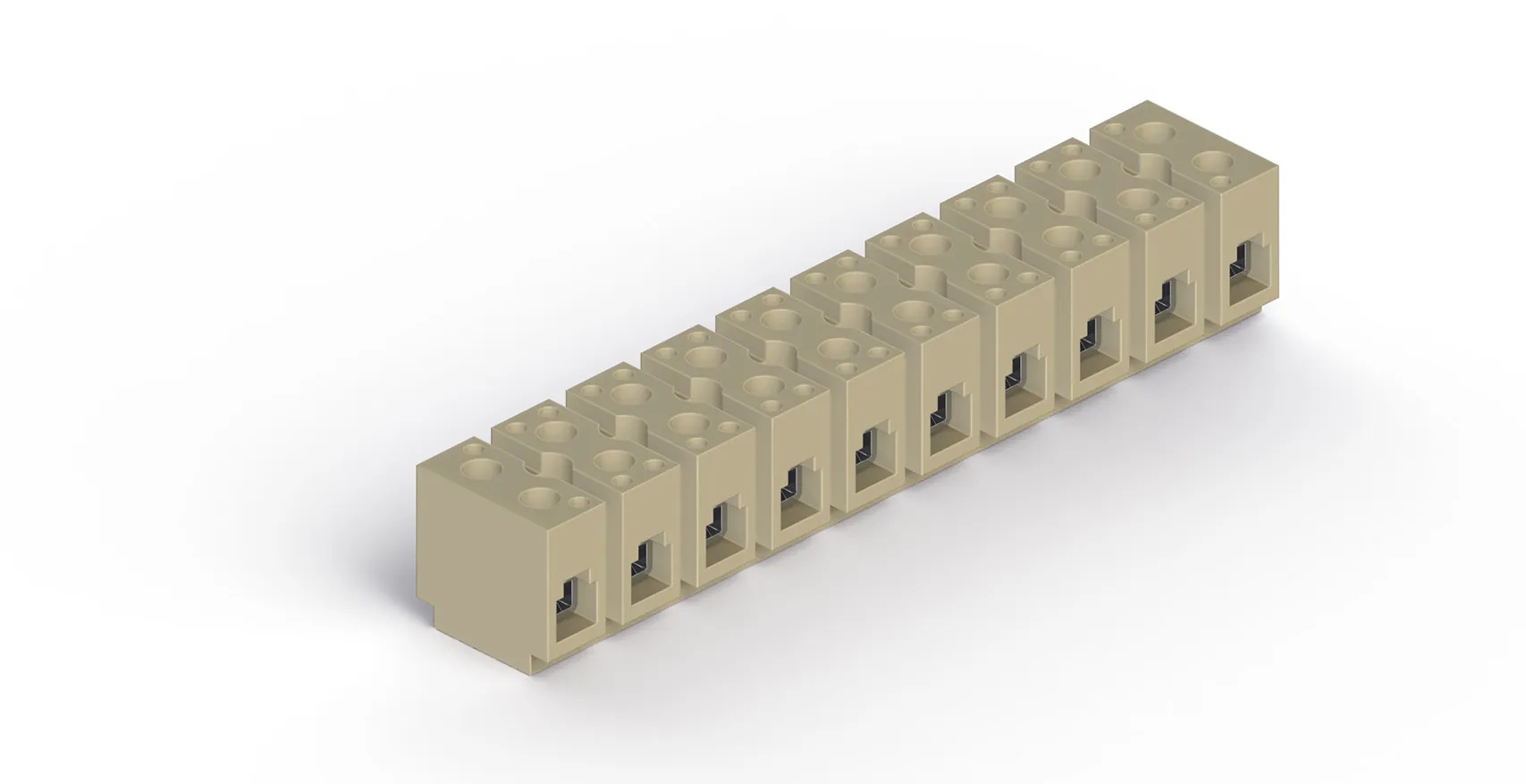

PSK 2/10 Beige
Screw Type, 4 mm² 20 pole terminal strip
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
421100
Packing Unit
20 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.08875 kg.
Product Description
Screw Type, 4 mm² 20 pole terminal strip
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
20
Color
Beige
Number of Levels
10
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60998-2-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
6 Kv
Nominal Current
41 A
Nominal Voltage
600 V
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
10 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
8 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
10 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
6 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
9 mm
Internal Cylindrical Indicator
B5
Tightening Torque Min.
0,5 Nm
Tightening Torque Max.
0,8 Nm
DIMENSIONS
Width
22,70 mm
Length
125,20 mm
Yükseklik
21,60 mm
Certificates
CE
UKCA
TSE
ROHS
Accessories
Screwdrivers
Product Code: 561240
