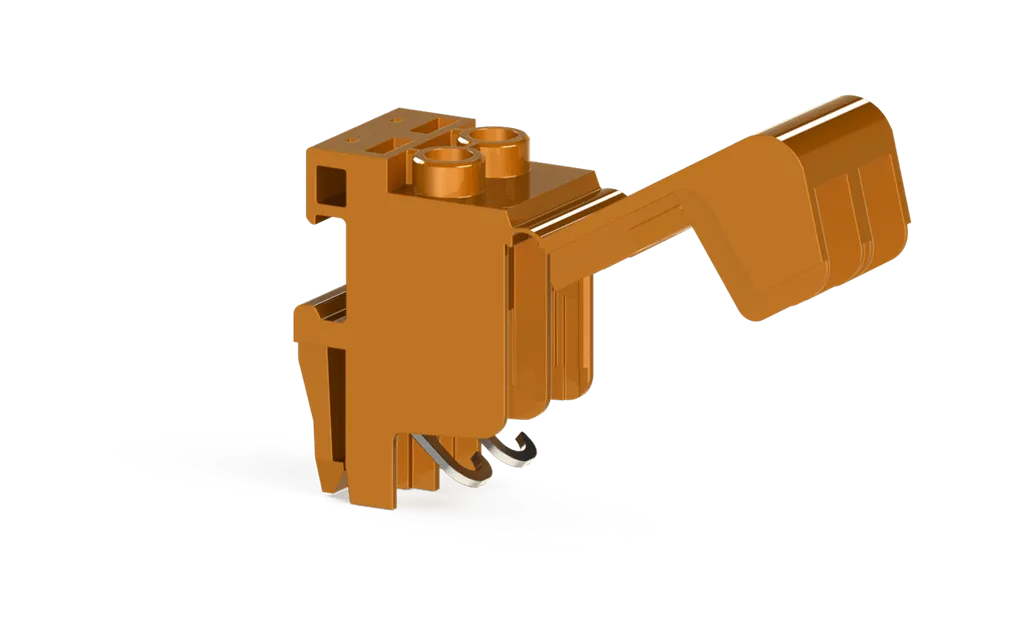

TRV 4M (Turuncu)
4 mm² Transformer Feed-Through Terminal Block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
422047
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.00978 kg.
Product Description
4 mm² Transformer Feed-Through Terminal Block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
4
Color
Orange
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC60998-1 / 61558-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
25 A
Nominal Voltage
750 V
Maximum Load Current
32 A
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
6 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
10 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
6 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
4 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
B4
Tightening Torque Min.
0,5 Nm
Tightening Torque Max.
0,8 Nm
DIMENSIONS
Width
15 mm
Length
22,20 mm
Yükseklik
33,50 mm
Certificates
CE
ROHS
UKCA
cULus
UKRAYNA
CEConductor Cross-section
AWG 26-10
Nominal Current
20 A
Nominal Voltage
600 V
