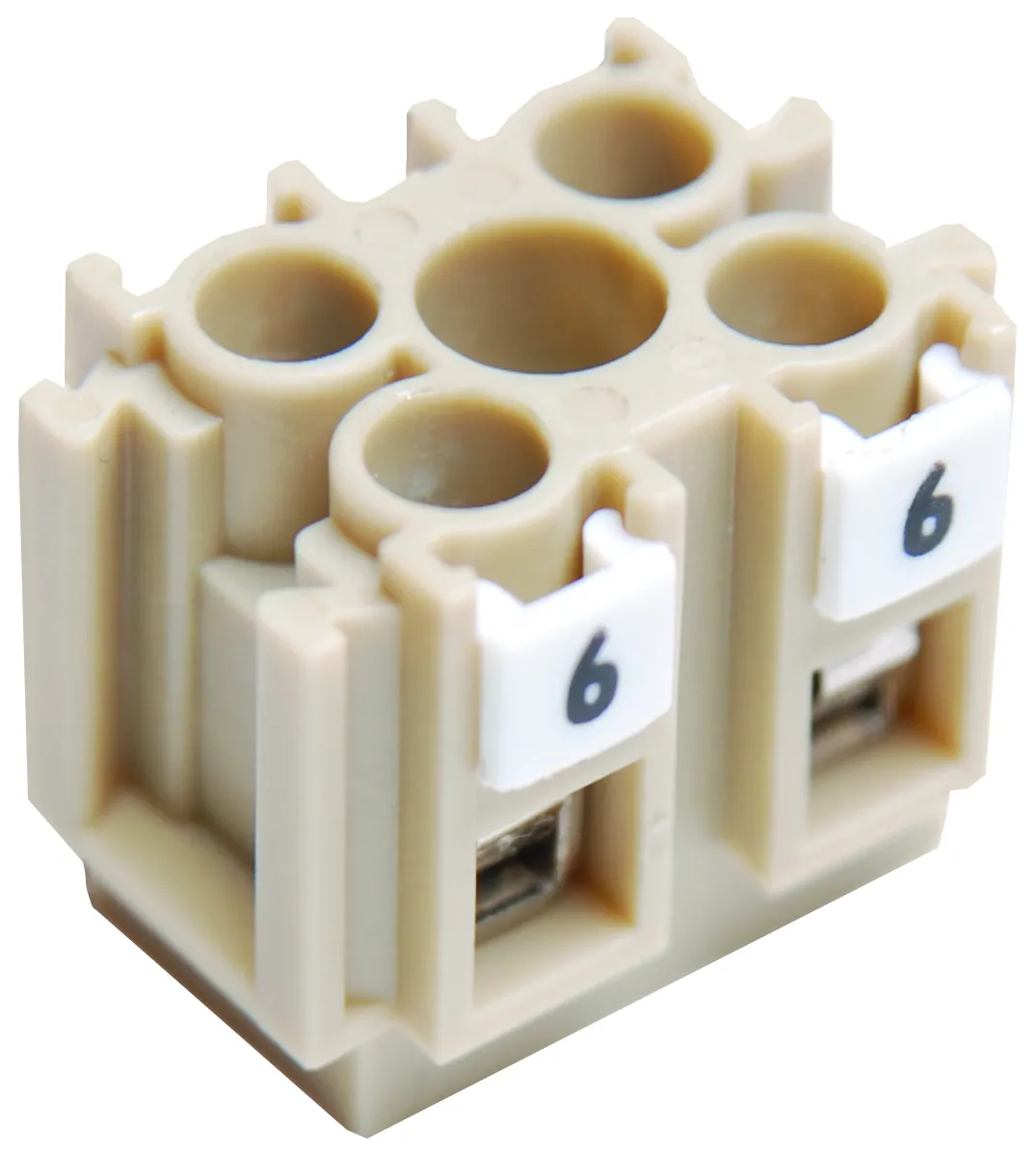

PSK 1/2 Beige
Screw Type, 4 mm² 4 pole terminal strip
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
420020
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.00663 kg.
Product Description
Screw Type, 4 mm² 4 pole terminal strip
Technical Information
PRODUCT FEATURES
Number of Connections
4
Color
Beige
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60998-2-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
3 Kv
Nominal Current
24 A
Nominal Voltage
400 V
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
4 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
Min. Stripping Length
5 mm
Max. Stripping Length
6 mm
Internal cylindrical indicator
A3
Tightening Torque Min
0,4 Nm
Tightening Torque Max
0,6 Nm
DIMENSIONS
Width
21,60 mm
Length
14,80 mm
Height
18 mm
Certificates
CE
UKCA
TSE
ROHS
