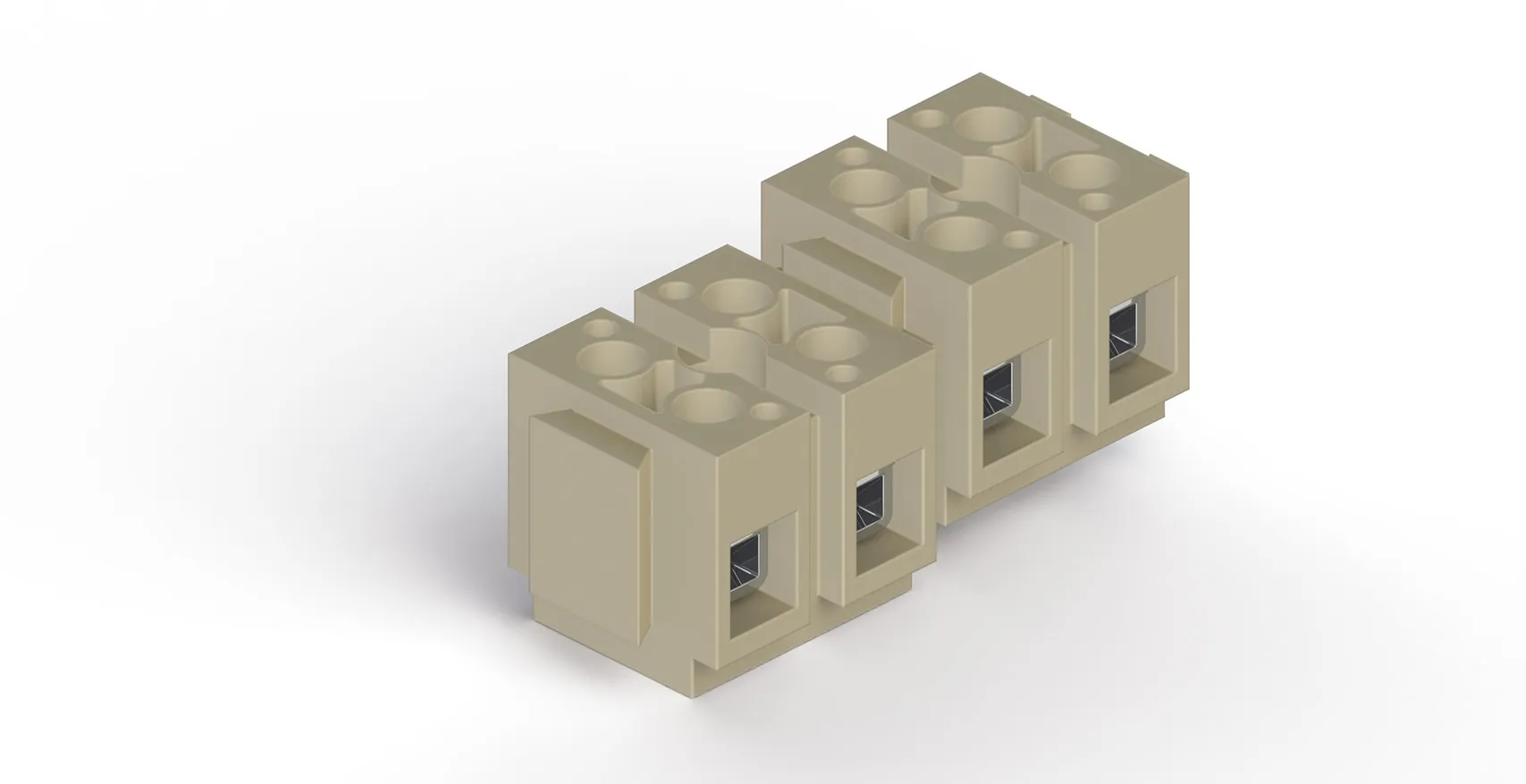

PSK 2/2 Beige
Screw Type, 2,5 mm² 4 pole terminal strip
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 100
Packing unit : 100 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
421020
Packing Unit
100 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.01731 kg.
Product Description
Screw Type, 2,5 mm² 4 pole terminal strip
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
4
Color
Beige
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60998-2-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
6 Kv
Nominal Current
41 A
Nominal Voltage
600 V
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
10 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
8 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
10 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
6 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
9 mm
Internal Cylindrical Indicator
B5
Tightening Torque Min.
0.5 Nm
Tightening Torque Max.
0.8 Nm
DIMENSIONS
Width
28,50 mm
Length
23 mm
Yükseklik
21,75 mm
Certificates
CE
UKCA
TSE
ROHS
