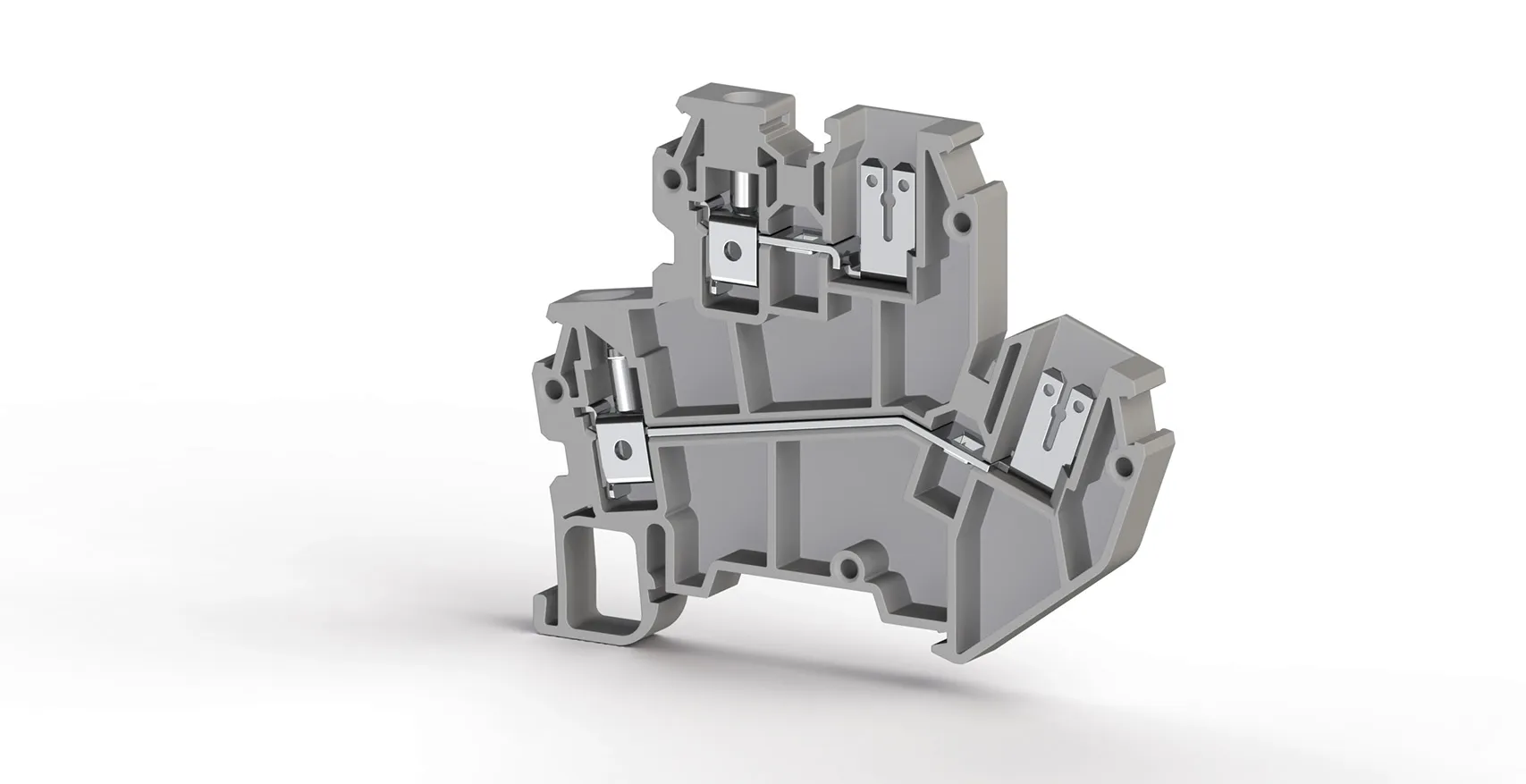

PIK 4FS Grey
Screw Type, 4 mm² terminal block
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 85
Packing unit : 85 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
319809
Packing Unit
85 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.01301176 kg.
Product Description
Screw Type, 4 mm² terminal block
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
4
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
20 A
Nominal Voltage
400 V
Maximum Load Current
20 A
CONNECTION DATA
Connection Type
Screw Connection
Min. Solid Conductor Cross-Sectional Area
0,2 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
24 AWG
Conductor Cross-Section AWG/kcmil Max.
10 AWG
Min. Stranded Conductor Cross-Sectional Area
0,2 mm²
Max. Stranded Conductor Cross-Sectional Area
4 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,25 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
4 mm²
Min. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
Max. for 2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
1,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A4
Tightening Torque Min.
0,5 Nm
Tightening Torque Max.
1,5 Nm
DIMENSIONS
Width
6 mm
Length
70,60 mm
Height MR 35x7.5
58,80 mm
Height MR 35x15
66,30 mm
Certificates
ATEX
CE
EAC
ROHS
UKRAYNA
UKCA
ATEXNominal Current
17 A
Nominal Voltage
400 V
