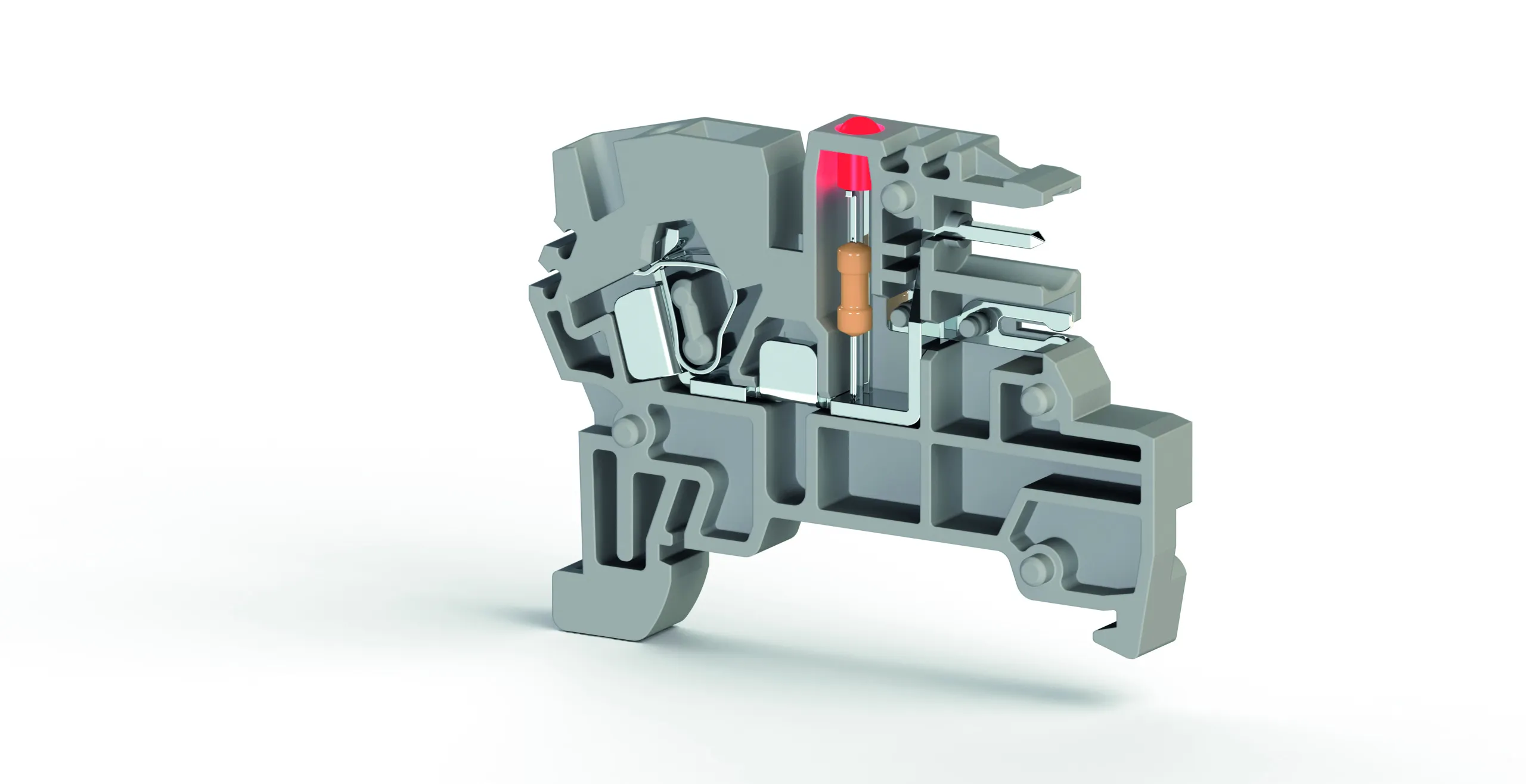

PCY 2,5L 110V DC Grey
2.5mm² Cage Clamp 1 input 1 output terminal block with socket
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 50
Packing unit : 50 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
364033
Packing Unit
50 pcs.
Customs Tariff No.
853690950000
Weight per piece (inc. packing)
0.0046 kg.
Product Description
2.5mm² Cage Clamp 1 input 1 output terminal block with socket
Technical Information
PRODUCT FEATURES
Number of Connections
2
Color
Grey
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
3
Insulation Material Group
1
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
4 Kv
Nominal Current
10 A
Nominal Voltage
110 V
Maximum Load Current
10 A
CONNECTION DATA
Connection Type
Spring Connection
Single-core min. conductor cross-section
0,,08 mm²
Single-core max. conductor cross-section
4 mm²
Conductor Cross Section Awgkcmil Min
28 AWG
Conductor Cross Section Awgkcmil Max
12 AWG
Multi-core min. conductor cross-section
0,08 mm²
Multi-core max. conductor cross-section
2,5 mm²
Multi-core min. conductor cross-section with ferrule
0,14 mm²
Multi-core max. conductor cross-section with ferrule
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
A3
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve
0,5 mm²
DIMENSIONS
Width
5,05 mm
Length
47,40 mm
Height Mr 35x75
37,20 mm
Height MR 35x15
44,70 mm
Certificates
cULus
CE
EAC
ROHS
UKRAYNA
UKCA
cULusConductor Cross-section
AWG 22-12
Nominal Current
10:00 AM
Nominal Voltage
110 V
Accessories
Zinc Coated
Product Code: 500601
MR 35x7.5 Straight (1m) Zinc Coated Rail
Product Code: 500604
MR 35x7.5 Slotted DIN Rail (2 m), Galvanized
Product Code: 500609
MR 35x15 Slotted (2m) Zinc Coated Rail
Product Code: 500602
MR 35x7.5 Slotted (1m) Zinc Coated Rail
Product Code: 500603
MR 35x7.5 Straight (2m) Zinc Coated Rail
Product Code: 500606
MR 35x15 Straight (1m) Zinc Coated Rail
Product Code: 500608
MR 35x15 Straight (2m) Zinc Coated Rail
Çinko Kaplı
Product Code: 500607
MR 35x15 Slotlu (1m) Çinko Kaplı Ray
Galvanized
Product Code: 500602E
MR 35x7.5 Slotted (1m) Rail (Galvanized)
Product Code: 500603E
MR 35x7,5 Plain (2m) Rail (Galvanized)
Product Code: 500604E
MR 35x7,5 SLOT (2m) RAIL (GALVANIZED)
Product Code: 500609E
MR 35x15 Slotted (2m) Rail (Galvanized)
Screwdrivers
Product Code: 561140
KT-D 2 (0,5 x Ø3,0)
Test Sockets
Product Code: 493020
TF (Ø 2)
Terminal Blocks
Product Code: 505330
DG 6/5
Cover
Product Code: 423099
PCY IT TAPA Grey
Product Code: 450199
NPP/PCY Grey
Plug-In Cross Connector
Busbar
Product Code: 525400
PCY Neural Busbar
