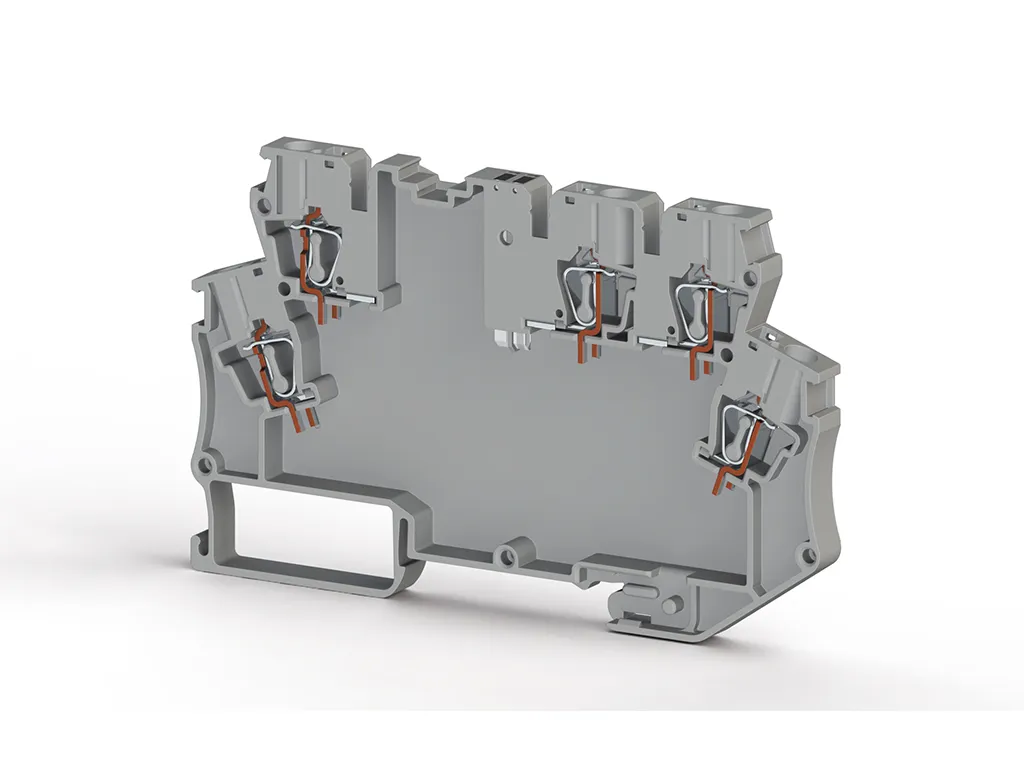

MDB 5 Grey
Cage Clamp Type, 5 pole, single strip label (plastic enclosure)
How can I find pricing information?
To access product pricing information, create an order list and contact us.
Min. order quantity : 20
Packing unit : 20 pcs.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Commercial Information
Product Sales Code
327069
Packing Unit
20 pcs.
Customs Tariff No.
853630300000
Weight per piece (inc. packing)
0.017 kg.
Product Description
Cage Clamp Type, 5 pole, single strip label (plastic enclosure)
Technical Information
PRODUCT SPECIFICATIONS
Number of Connections
5
Color
Grey
Number of Levels
2
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-1
Continuous Operating Temperature Max.
120 °C
Continuous Operating Temperature Min.
-55 °C
ELECTRICAL SPECIFICATIONS
Nominal Impulse Voltage
8 Kv
Nominal Current
32 A
Nominal Voltage
800 V
CONNECTION DATA
Connection Type
Spring Connection
Min. Solid Conductor Cross-Sectional Area
0,08 mm²
Max. Solid Conductor Cross-Sectional Area
4 mm²
Conductor Cross-Section AWG/kcmil Min.
28 AWG
Conductor Cross-Section AWG/kcmil Max.
12 AWG
Min. Stranded Conductor Cross-Sectional Area
0,08 mm²
Max. Stranded Conductor Cross-Sectional Area
2,5 mm²
Min. Stranded Conductor Cross-Sectional Area with Ferrule
0,14 mm²
Max. Stranded Conductor Cross-Sectional Area with Ferrule
2,5 mm²
Min. Stripping Length
8 mm
Max. Stripping Length
10 mm
Internal Cylindrical Indicator
A3
2 Stranded Conductors of the Same Cross-Section with Plastic-Collared Twin Ferrule
0,5 mm²
DIMENSIONS
Width
6,2 mm
Length
100,5 mm
Height MR 35x7.5
63,5 mm
Height MR 35x15
71 mm
Certificates
CE
ROHS
UKCA
